Silent Micro Linear Actuator

USD

Model #

25mm (1-inch)

50mm (2-Inch)

75mm (3-Inch)

100mm (4-Inch)

125mm (5-Inch)

150mm (6-Inch)

175mm (7-Inch)

200mm (8-Inch)

Bulk Discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

Min. Quantity	Discount
11	20 % OFF
31	25 % OFF
50	30 % OFF
200	40 % OFF

qty limit cart limit

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

View Cart

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

Country

Zip/Postal Code

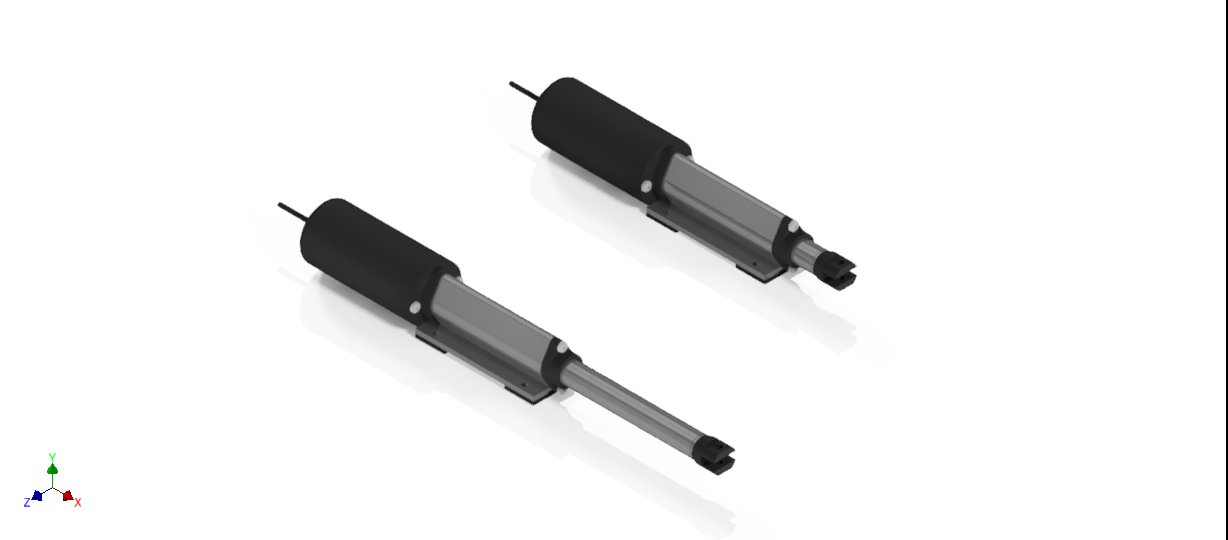

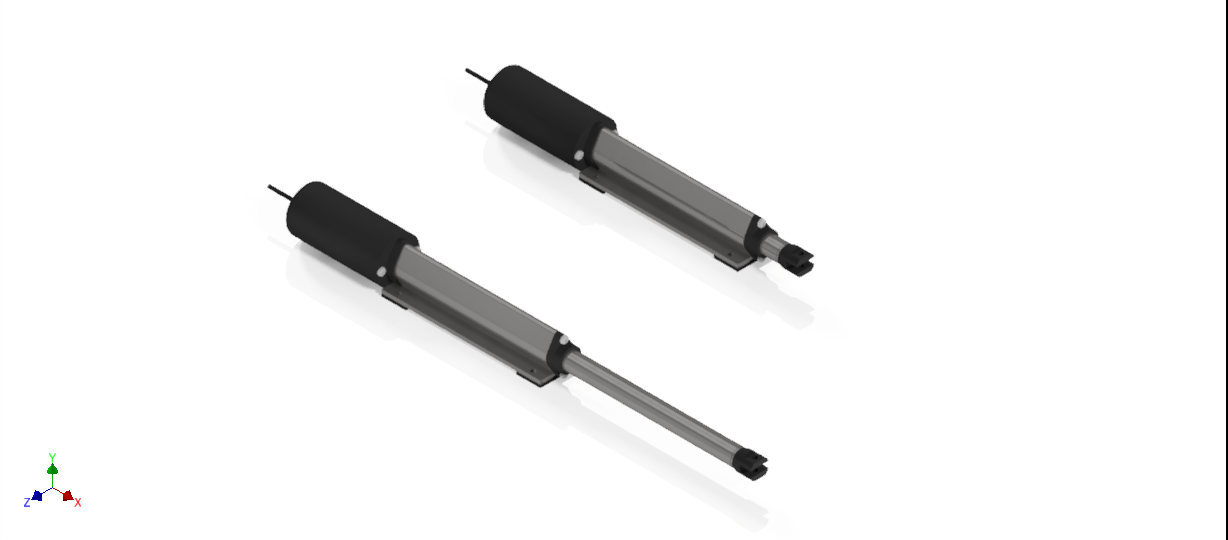

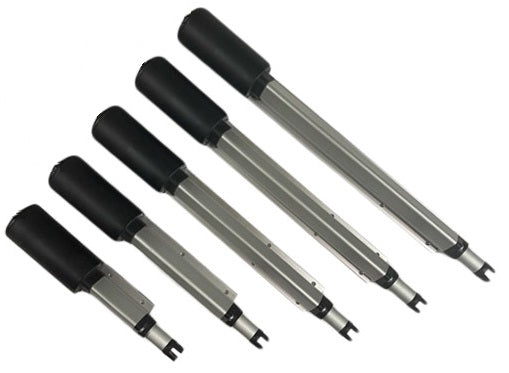

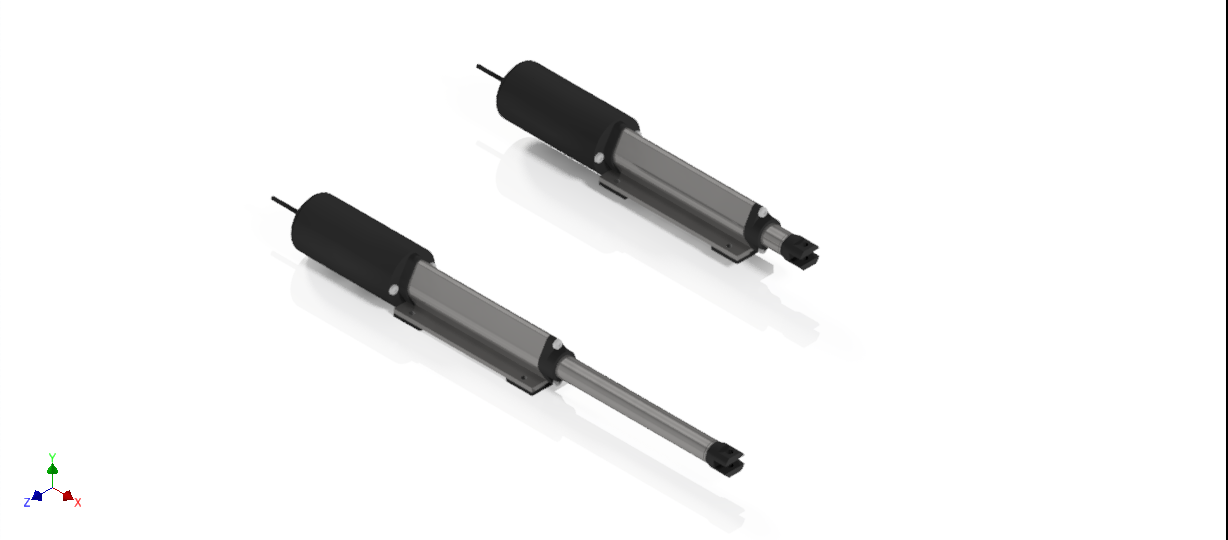

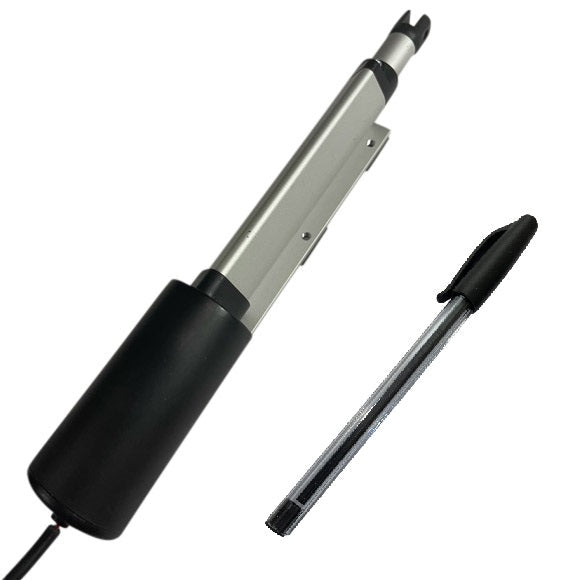

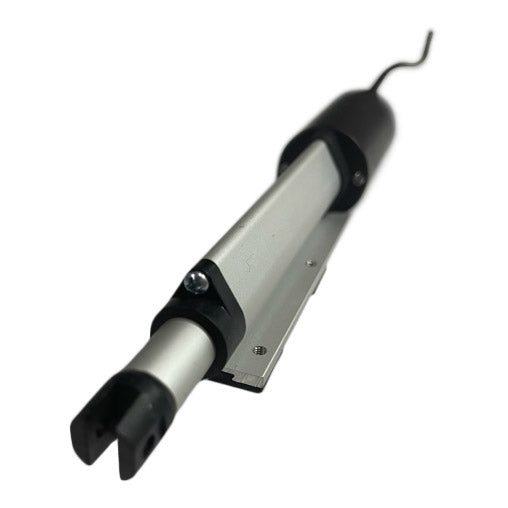

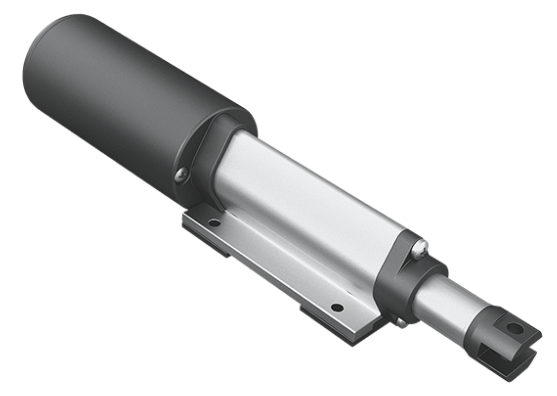

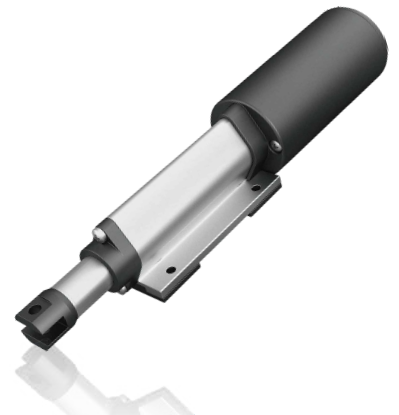

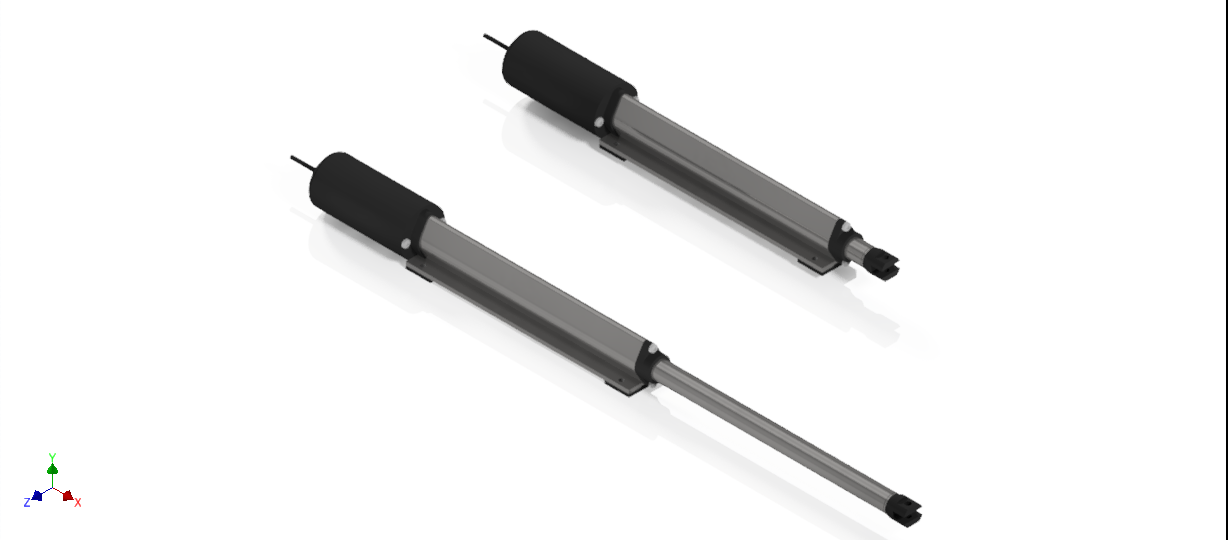

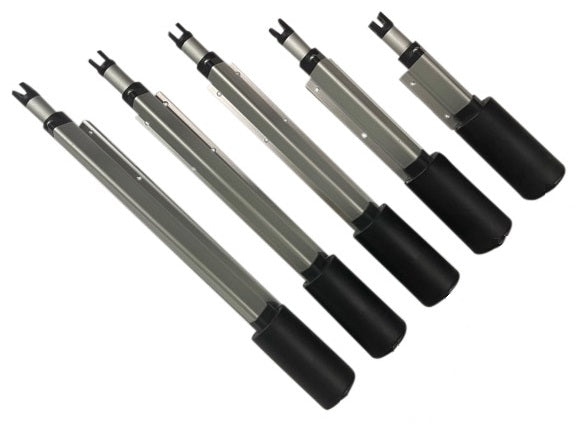

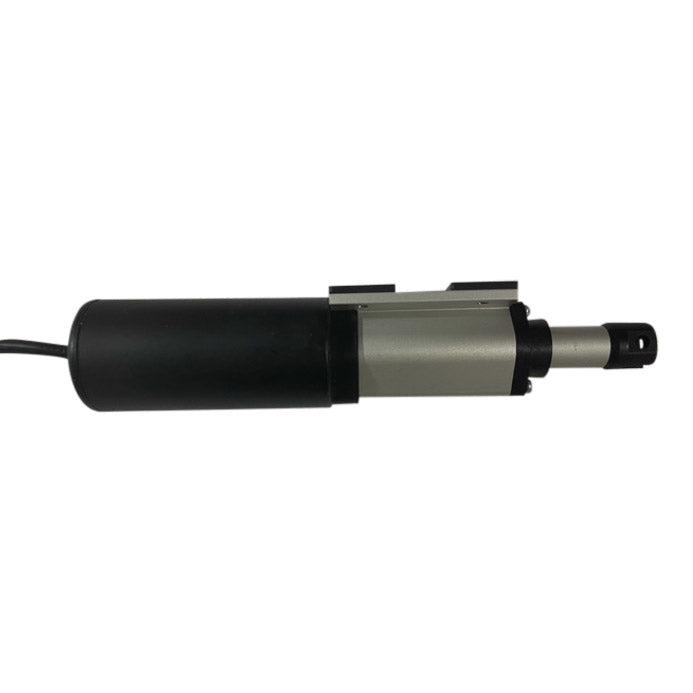

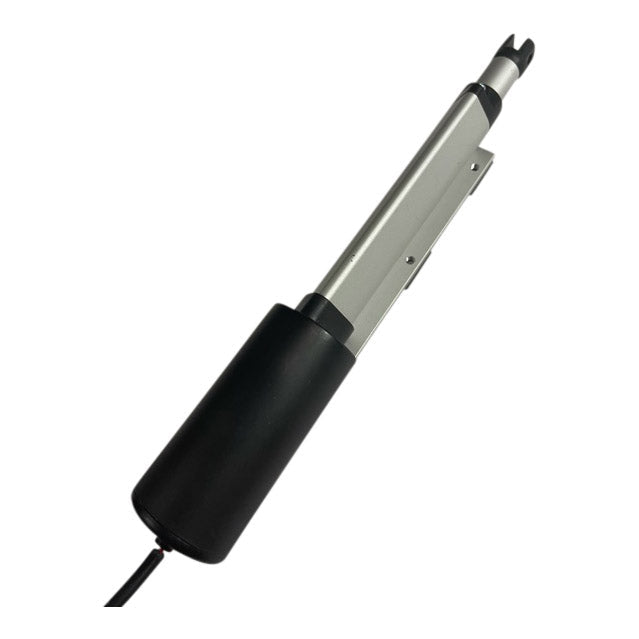

If you are looking for a Micro Actuators that's very quiet then the FIRGELLI® Silent Micro Linear Actuator is an ideal choice. It packs a force of 100N (22-lbs). These Actuators use a planetary style gearbox which allows them to be ultra-quiet and offer very smooth efficient linear motion. The in-line design comes without a Clevis on the Motor end but instead has a built-in mounting base place along the main body with pre-drilled holes for easy mounting. This attachment style means that the length to stroke ratio is shorter so that they can fit into tighter spots. The moving end of the Actuator has a tough plastic Clevis style fitting that can be rotated to any angle.

These Micro Actuators are very popular in HVAC systems for opening and closing flaps and vents and also in Home Automation applications where secret doors, drawers, and panels are required to be opened and closed remotely. But they really can be used for many applications where noise or space is important.

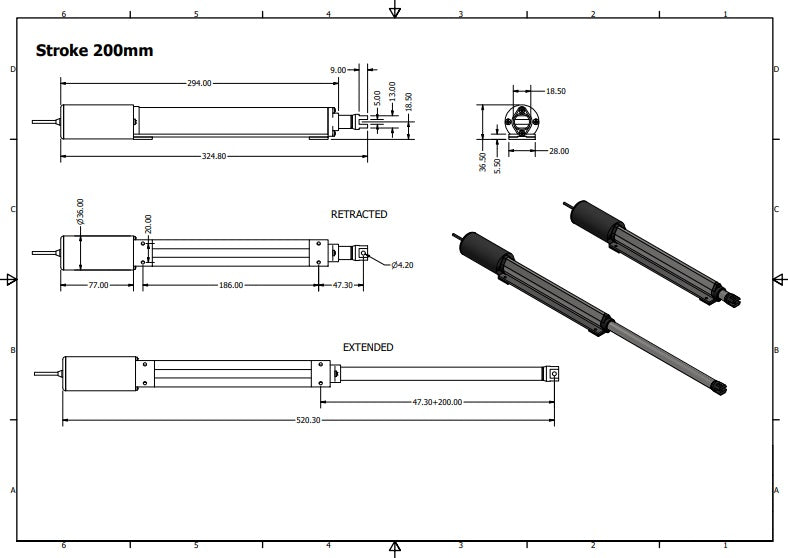

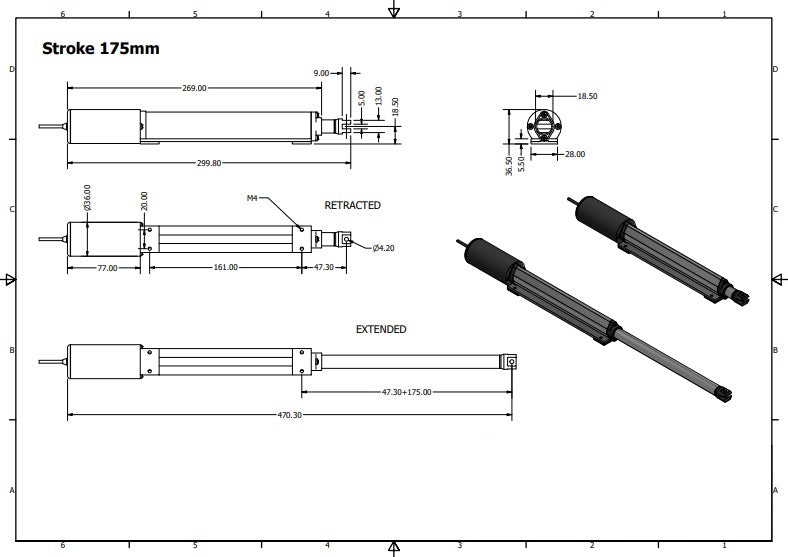

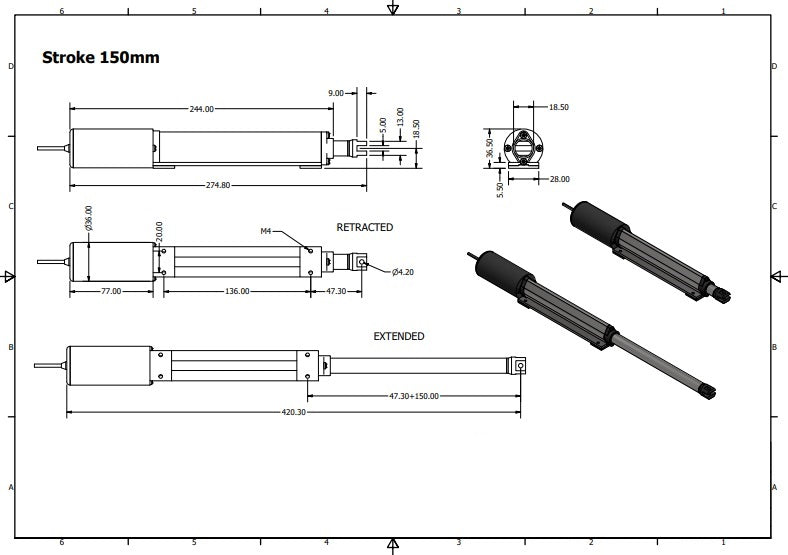

Mounting Points

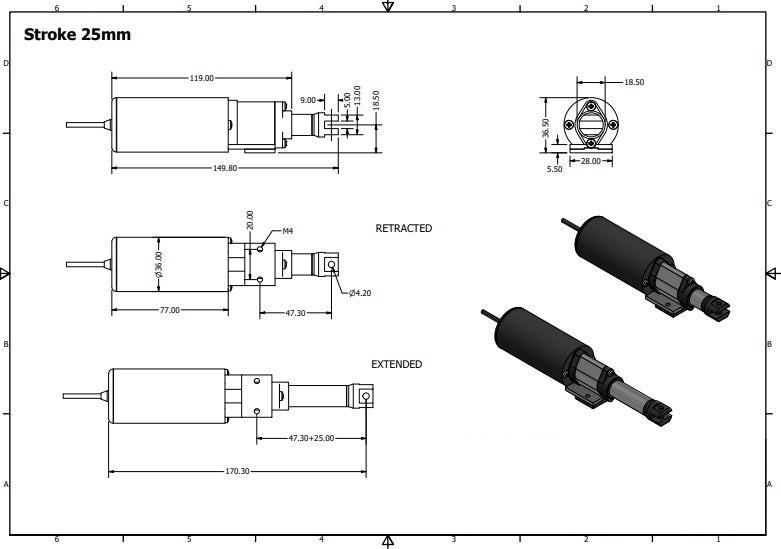

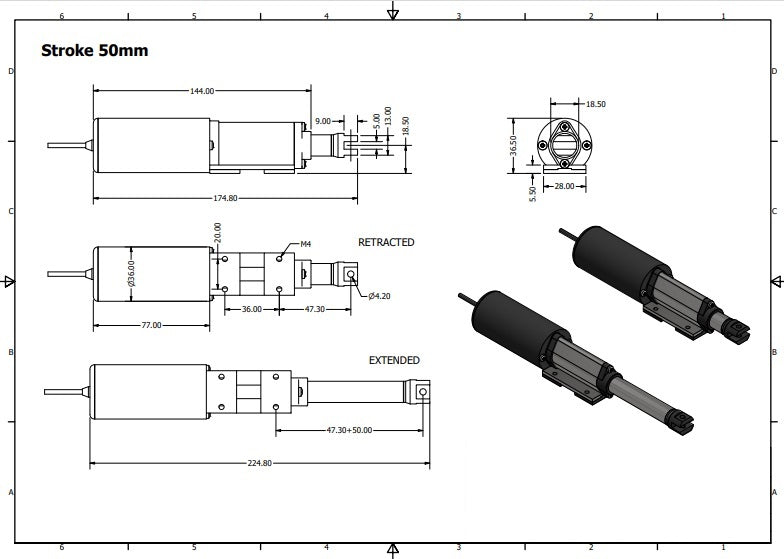

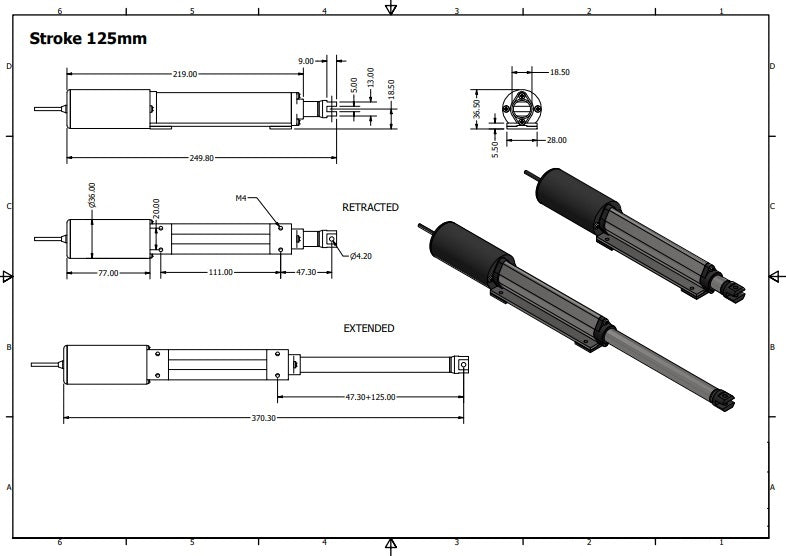

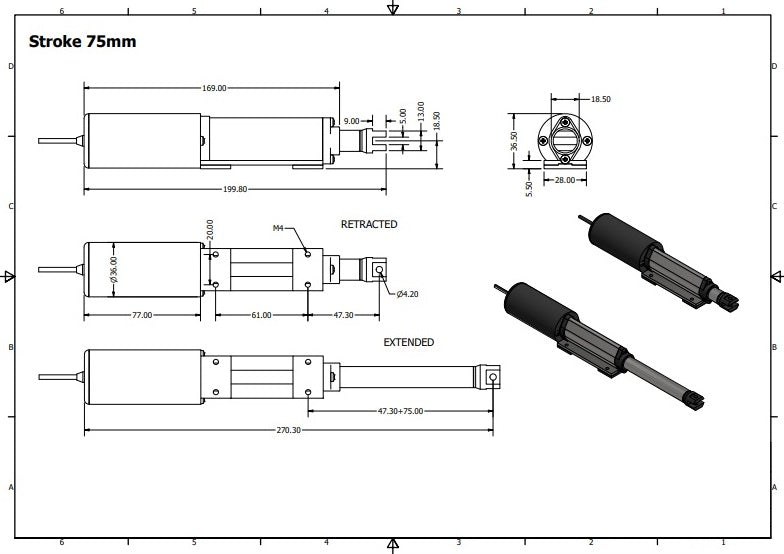

Mounting these Micro Actuators is very simple. The moving end of the Actuator has a clevis hole with a 4.2mm dia so that a 4mm screw can be used to secure them, as well as a 5mm wide slot that's 8mm deep for plate mounting options. In addition, the moving end shaft of the Micro Actuator is able to rotate up to 180 degrees to give you more flexibility with installation and also offer positional flexibility. The End clevis is screwed into the Aluminum shaft that can also be used to adjust the length for very fine installation control. Secondly, the Insert can be removed as it is a threaded insert so that you can install your own clevis end fitting if desired.

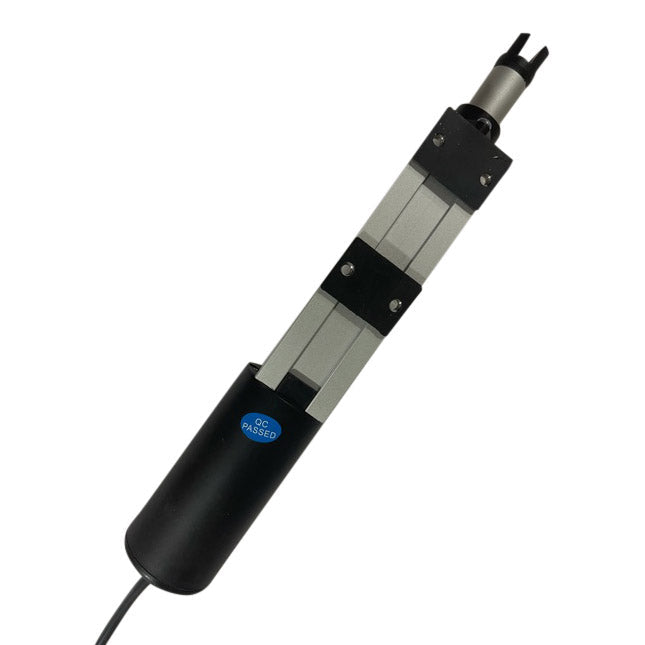

Mounting the Body of the Actuator is the best option for this Actuator as it comes with 4x M4 threaded holes and the base plate has rubber pads for reducing the vibration and noise to the mounting fixtures. The benefit of using the 2 round clevis holes of the Actuator is that the Actuator is able to rotate and swivel as its moves which is likely for a lot of applications.

Control Options:

These Micro Actuators are a simple 2 wire configuration, this means that you simply supply a 12v DC power source to make the Actuator move, and reversing polarity will change its direction. Most people use a Rocker-Switch to perform this action, or perhaps a remote control system that has 2 buttons (Up and Down)

SPECIFICATIONS

Dynamic load Push	100N (22-lbs force)
Dynamic Load Pull	50N (11-lbs force)
Static Load Push	50N (11-lbs force)
Static Load Pull	50N (11-lbs force)
Input Voltage	3-12V DC (12Vdc as standard)
No Load Current	~0.1a
Full Load Current	~0.3a
Speed	No Load 12mm/sec (0.45"/sec) - Full Load 7mm (0.27"/sec)
Duty Cycle	30%, Max 5 minutes
IP Rating	IP54
Operating temperature	+5 °C ~ + 40 °C
Current Draw No-load	0.1 Amps
Current Draw Full-load	0.2 Amps

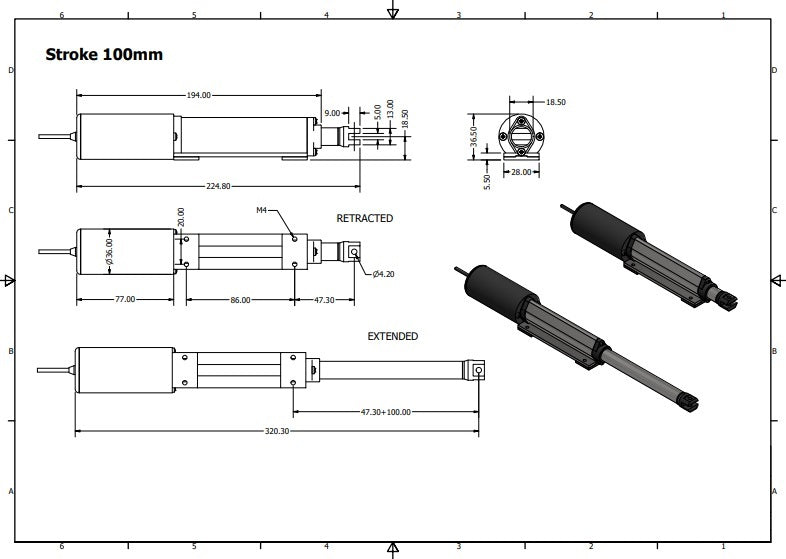

Mounting Points	Clevis holes on both ends. 4.2mm dia (0.16" dia) so that a 4mm screw can be used
Operating Noise	4 dBA above ambient
Motor Type	Brushed DC Motor with built-in planetary Gear head and metal gears
Other Speeds and Force	Custom speeds and forces available for custom orders - Please email us
Limit Switches	No
