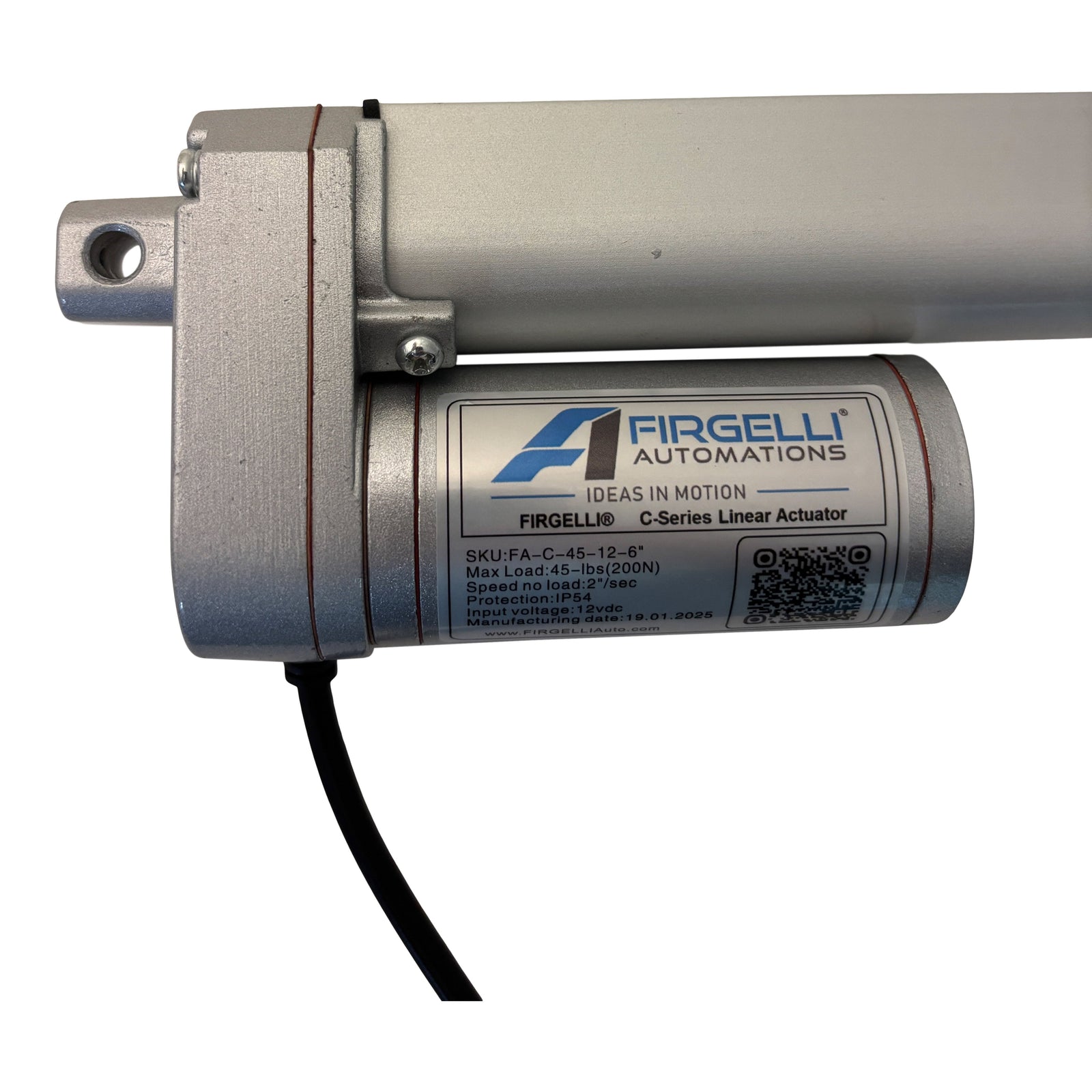

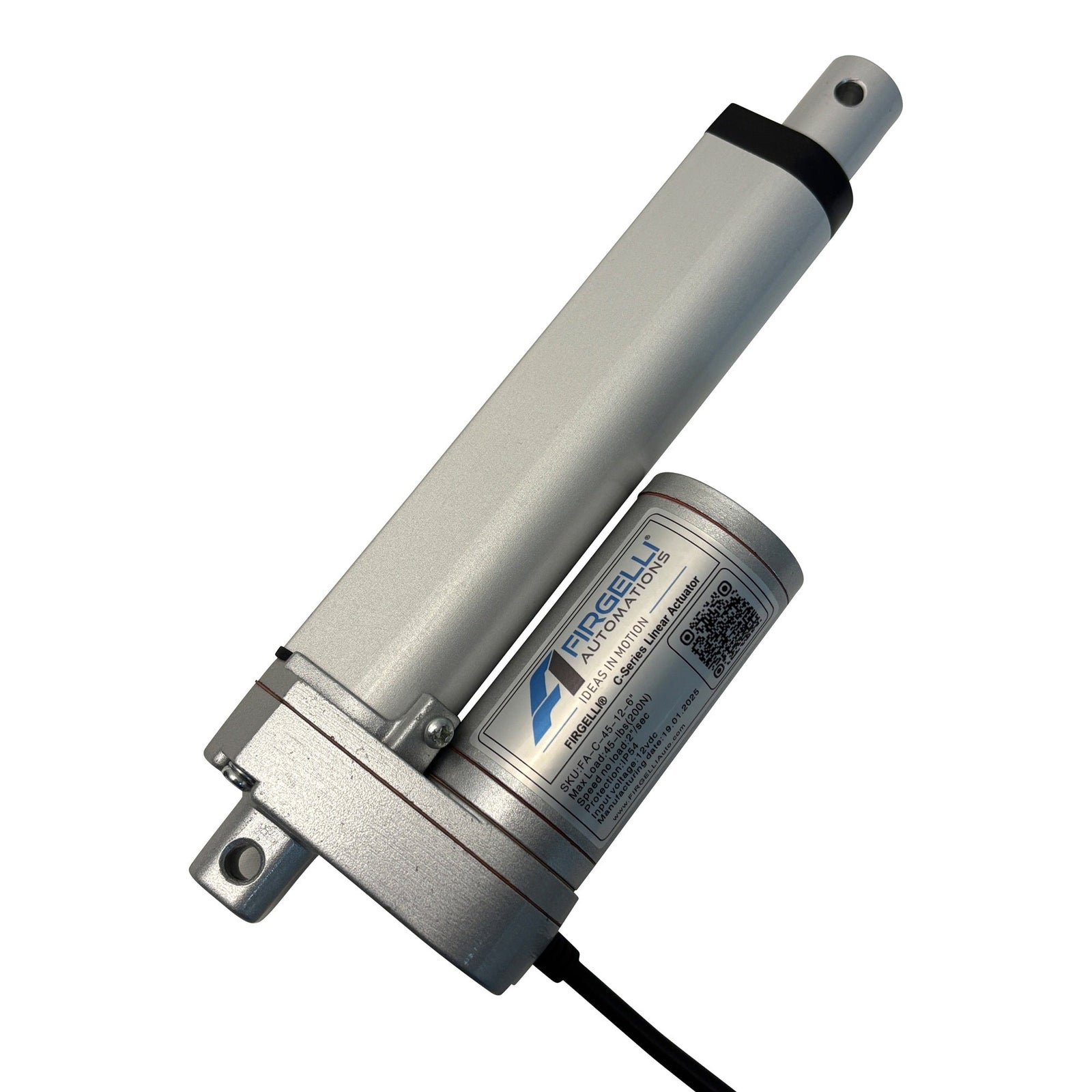

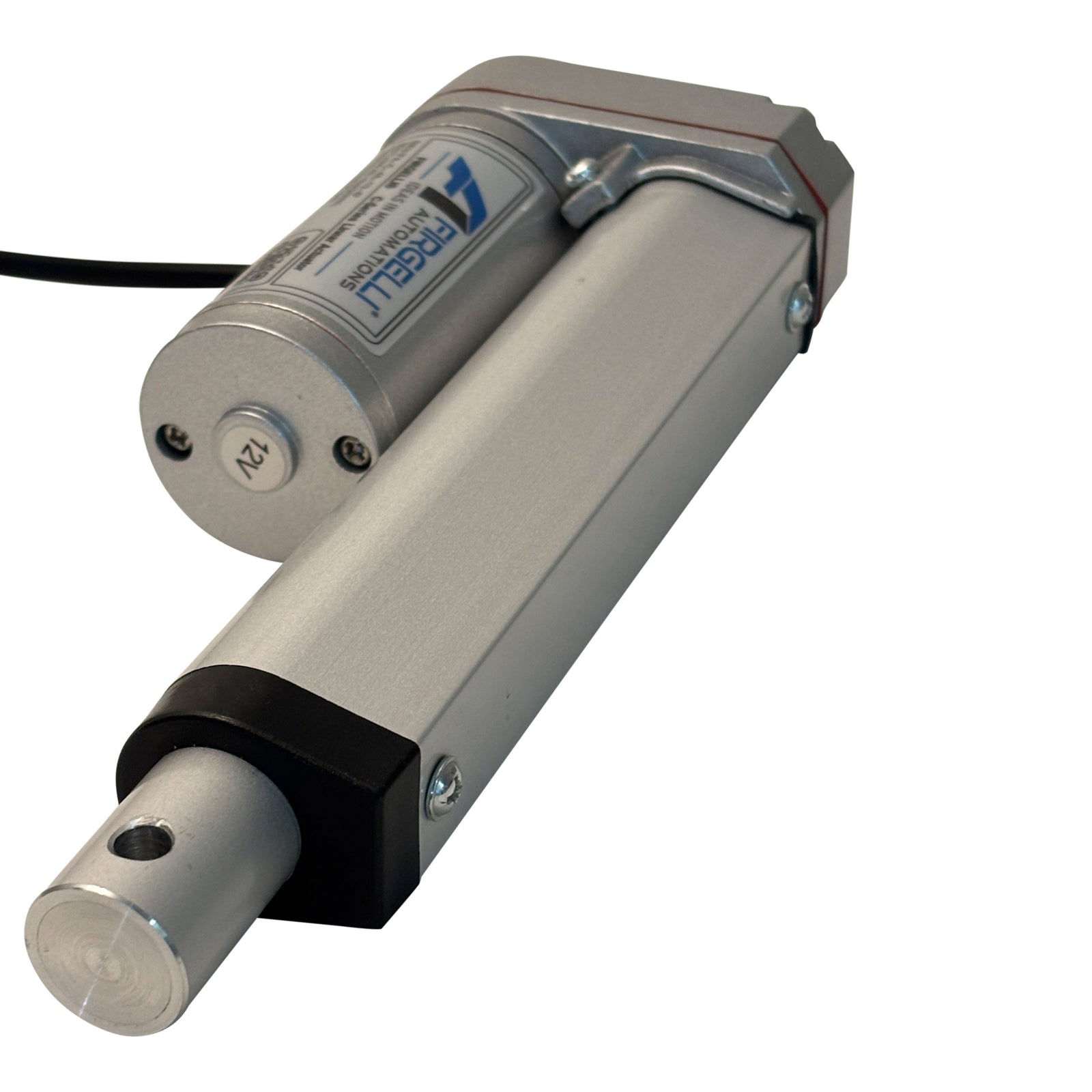

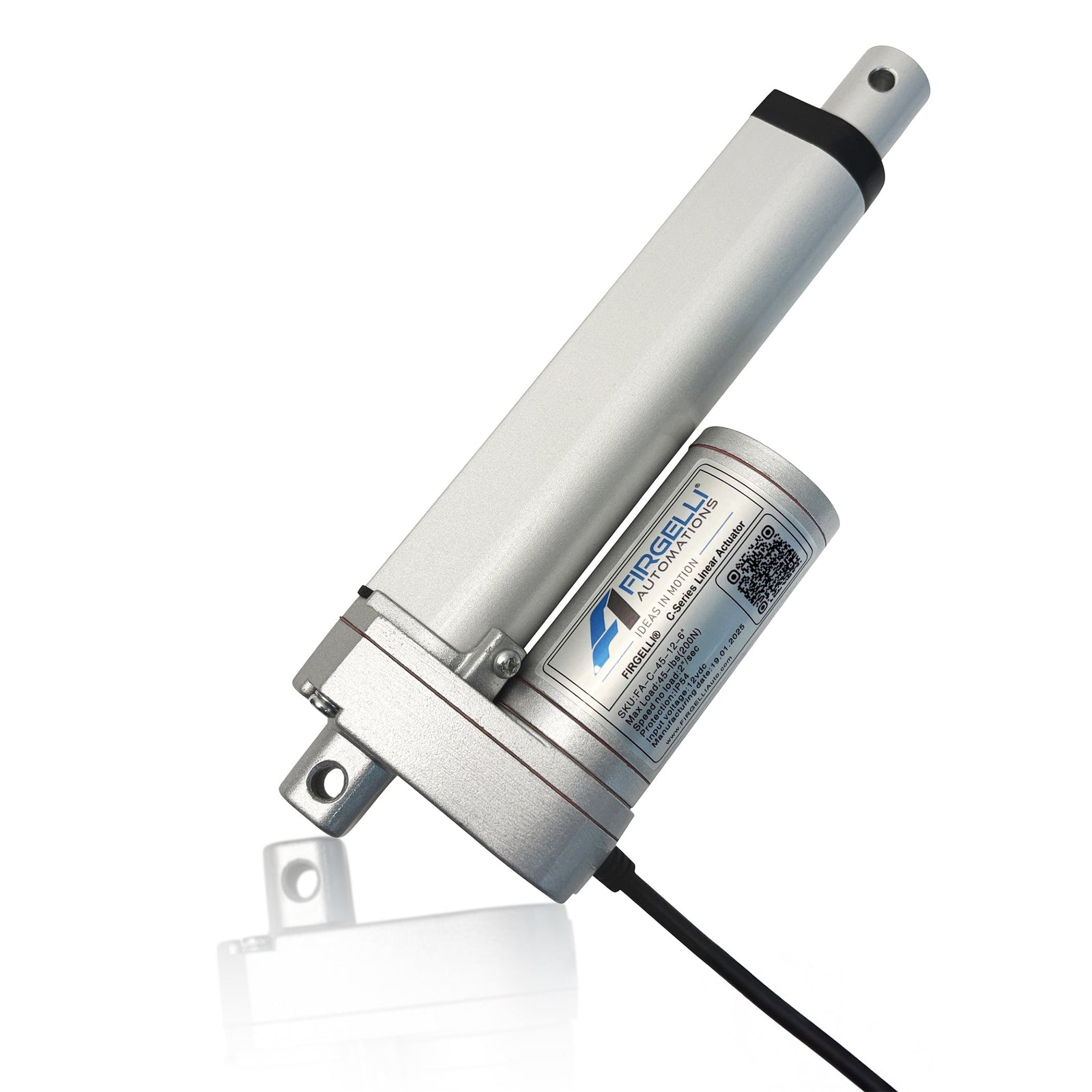

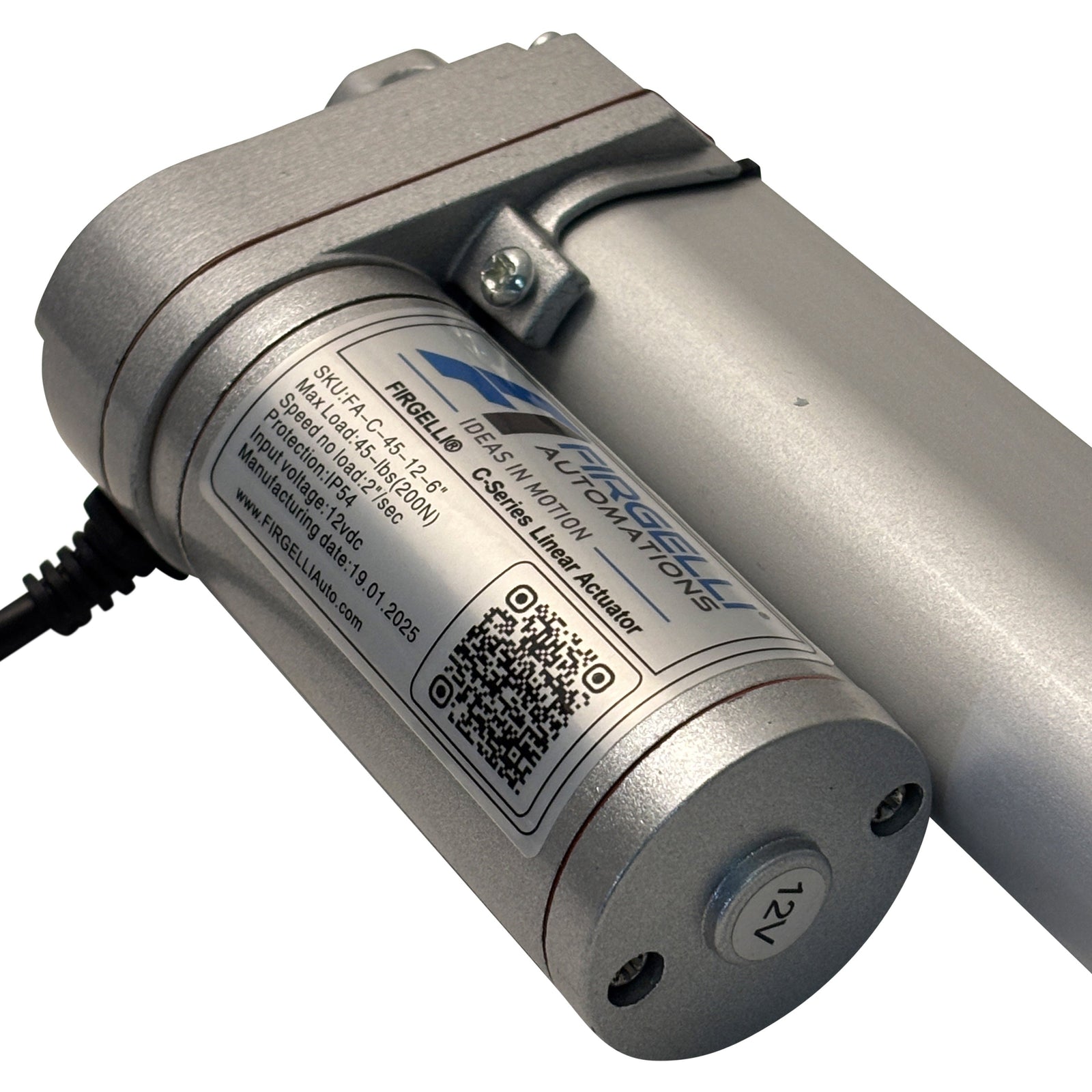

C-Series Actuators

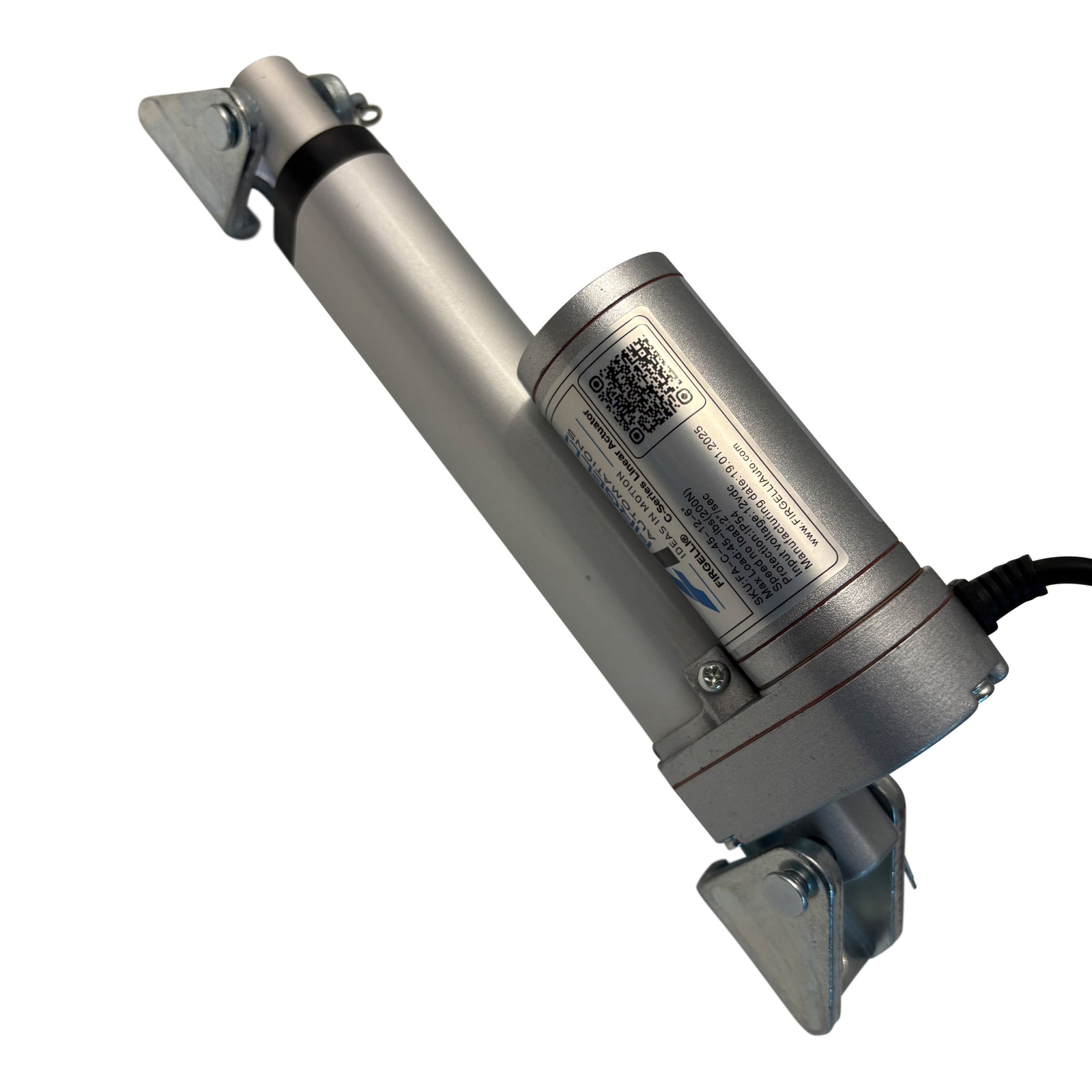

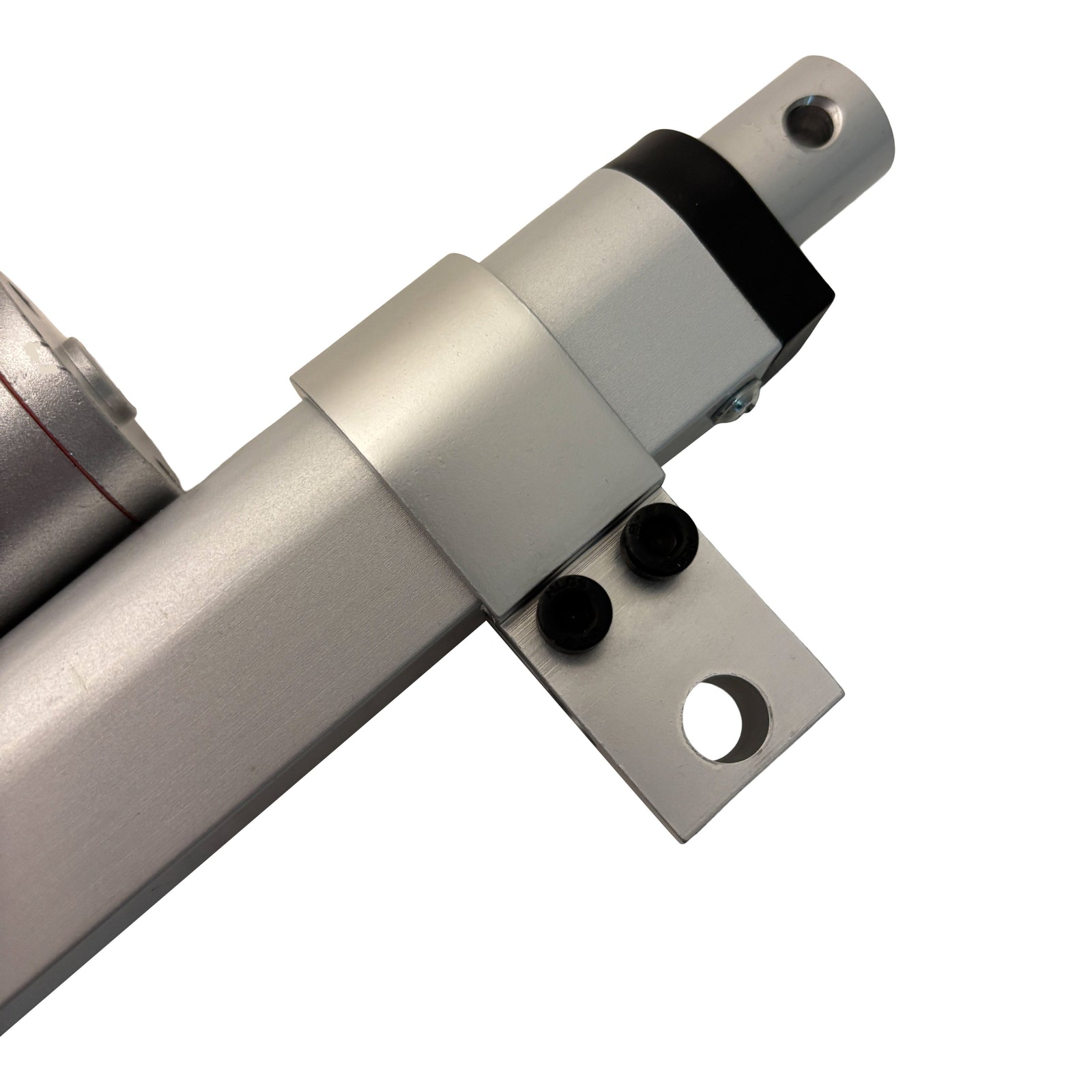

C-Series linear Actuators with body brackets

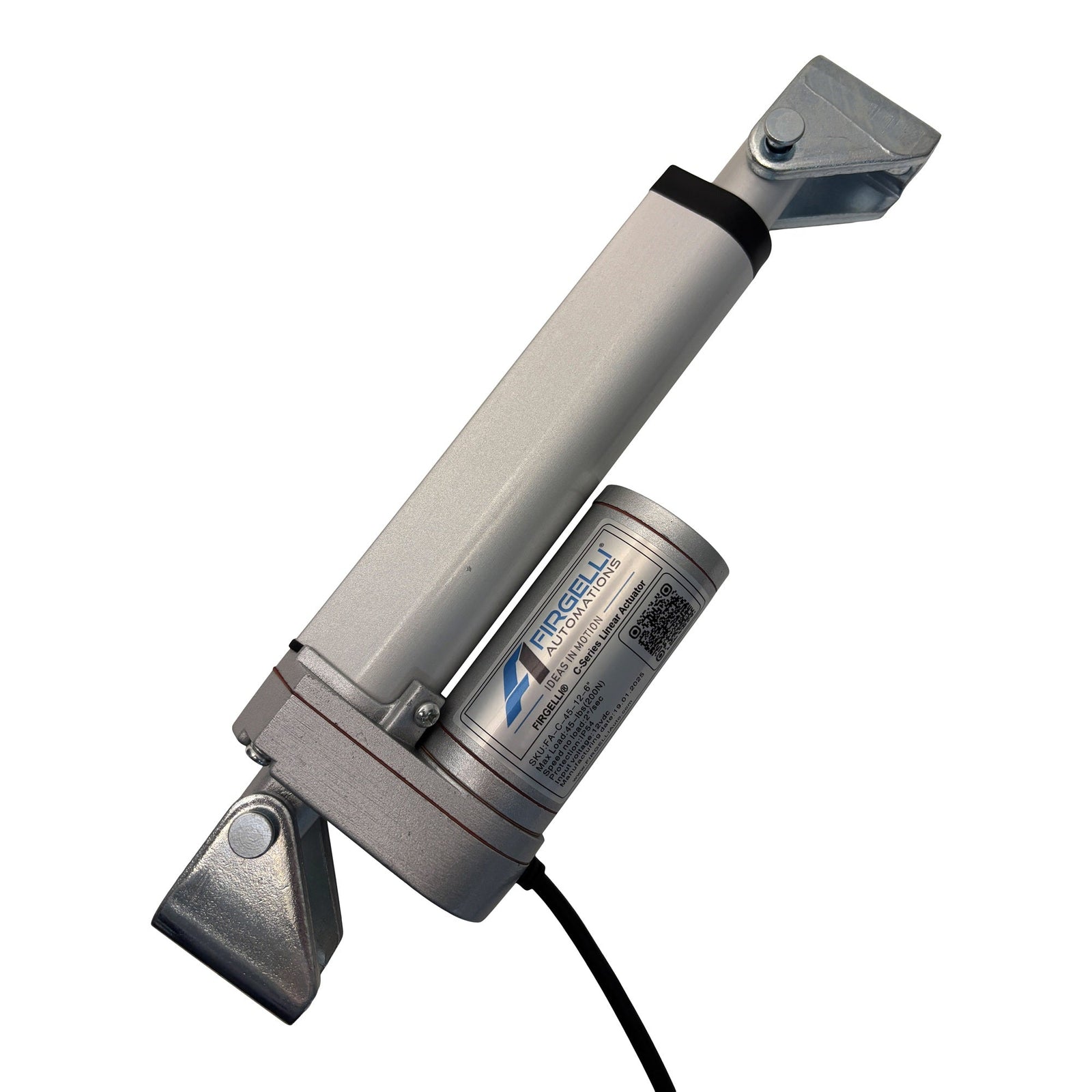

C-Series linear Actuators with body bracket

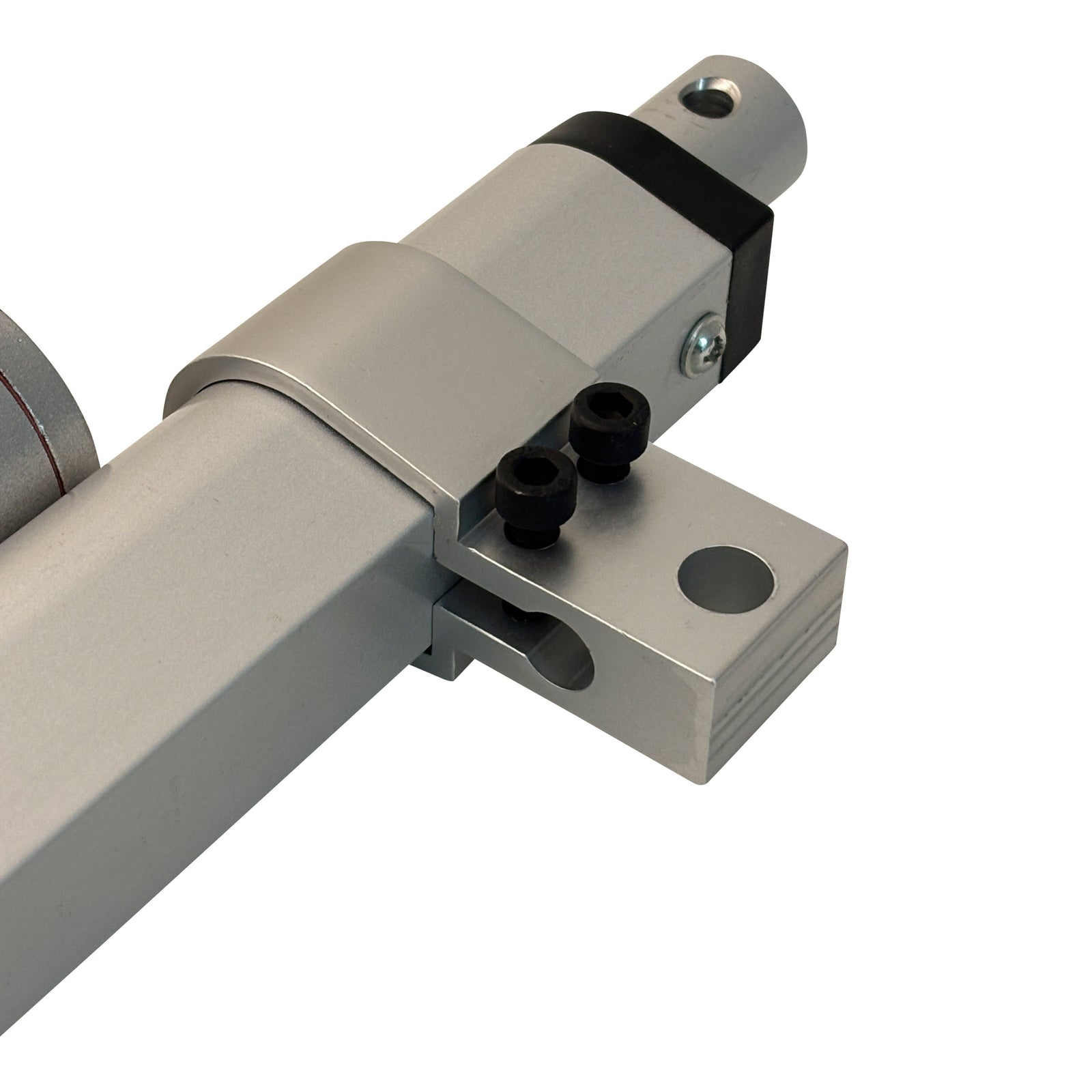

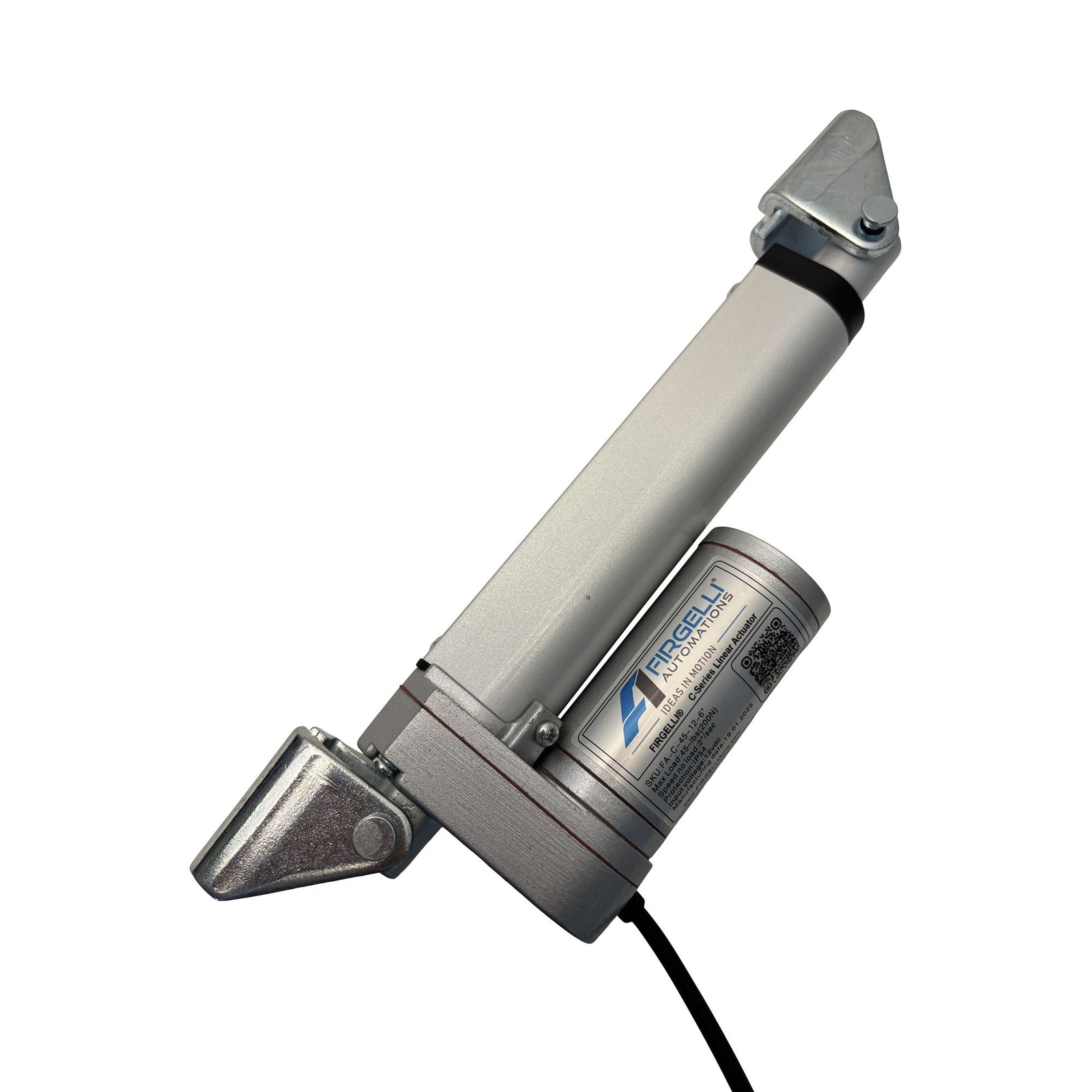

C-Series linear Actuators with pivot bracket

C-Series Actuators

$119.99 USD ~~$129.99~~

Model #FA-C-45-12-1

Bulk Discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

Min. Quantity	Discount
11	20 % OFF
31	25 % OFF
50	30 % OFF
200	40 % OFF

We have 50 of these in stock We have 50 of these in stock
and you currently have in your cart.

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

View Cart

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

Country

State

Zip/Postal Code

Description
The C-Series Actuators build upon our popular Classic Series, incorporating several design enhancements for improved performance and durability. Crafted from heavy-duty materials, these actuators deliver a powerful yet quiet operation. The robust aluminum casing and rods are engineered to handle demanding forces with ease, ensuring exceptional reliability in tough applications.
Available in three force and speed options, with stroke lengths ranging from 1 inch to 30 inches, the C-Series offers versatility to suit a variety of needs. Each unit features built-in end-of-stroke limit switches with an integrated brake, ensuring precise and safe operation by automatically halting movement at fully extended and retracted positions.
Experience the perfect blend of strength, precision, and versatility with the C-Series Actuators.
Features and Benefits
- Works with any type of Rocker switch or control boards such as FCB-2 for the ultimate in Actuator control
- Rugged compact design for universal hardy applications. These units are smaller than other actuators for the same force output
- Metal Alloy Casing, for any Super Duty usage, utilizes a completely sealed enclosure and is ready to be deployed in any application.
- Internal limit switches automatically shut off the unit at the end of the stroke - This protects you and your equipment from possible damage.

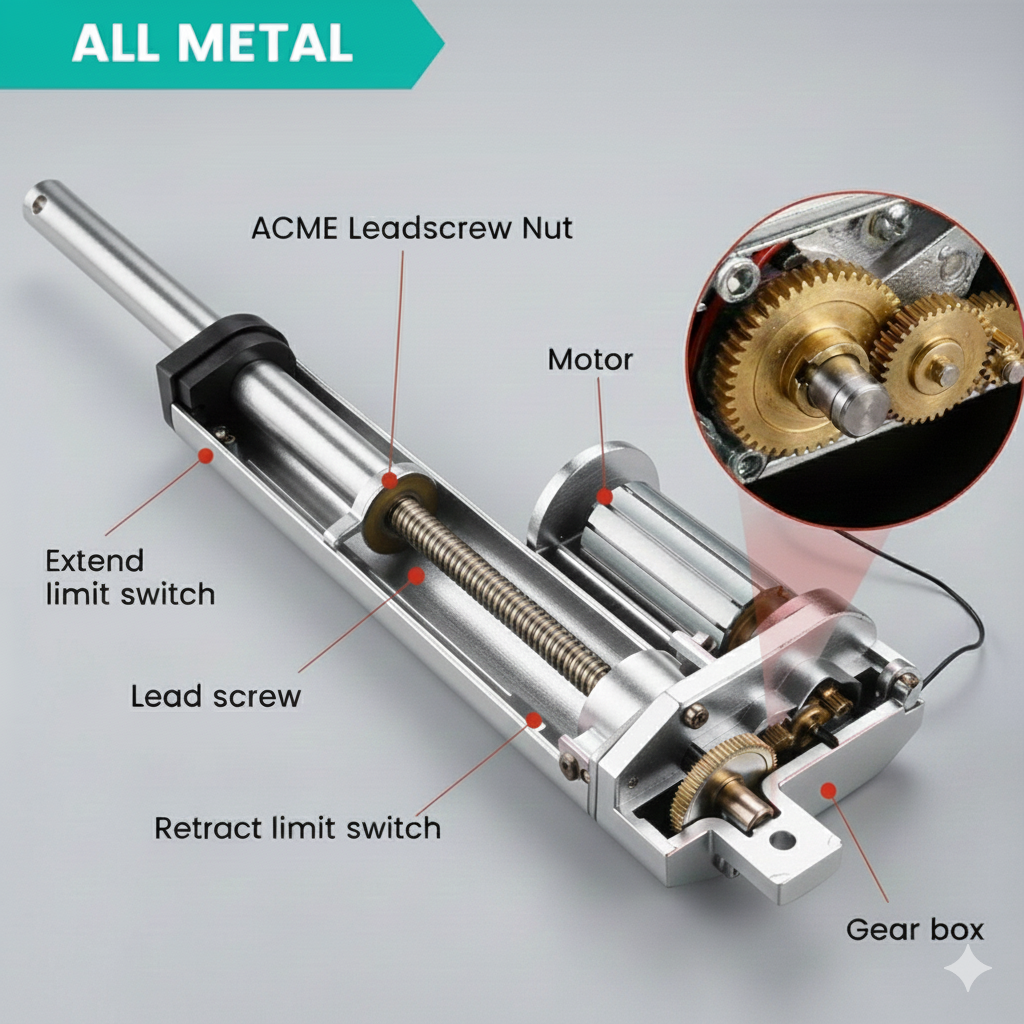

- Worm gear drive system for quiet smooth operation.
- Many stroke increments ranging from 1" up to 30" stroke, gives you more flexibility - Custom strokes can be built to order.
- Delivering force options from 45 to 225 lbs.
- IP54 rated – Dustproof and splash-resistant
- Variable Speed control - Use FA-SC2 to have full control over speed - or Control board FCB-2 (with remote control)
- Maintenance-free - Gives you more free time to do more important things
- Accessories sold separately include: Actuator Brackets - Remote Controls - Switches - Micro-Controllers - Power Supplies
- For help with wiring up a Linear Actuator to other devices such as remotes, controllers, multiple Actuators, etc. please use our Wiring Generator
- End Brackets: MB1 fits on both ends of the Actuators.
- Body Brackets: MB6 fits on the main body of the Actuator.

Specifications

Model	FA-C-45-12-X	FA-C-135-12-X	FA-C-225-12-X
Pulling/Pushing Force	45 lbs.	135 lbs.	225 lbs.
Static Force	45 lbs.	135 lbs.	225 lbs.
Speed ("/S) No Load	2"/sec	0.6"/sec	0.42"/sec
Max Draw	4.2 amps	4.2 amps	4.1 amps
Duty Cycle	25% at 100% load, 50% at 25% of load. to understand Duty cycle changes read this Blog post
IP Rating	IP54 Dustproof and splash-resistant
Sound Rating	Approx 50 dB depending on load
Input	12v DC
Clevis Ends	6.1mm diameter on each end Fits MB1 and MB-6 Brackets
Operational Temperature	-26°C to 65°C (-15°F/150°F)
Limit Switches	Built-in, non-adjustable. For an adjustable limit switch, check out our "Adjustable limit switch Actuator".
Safety Certifications	CE
Bracket(s)	MB-1 Brackets for Both ends and MB-6 Brackets for Body

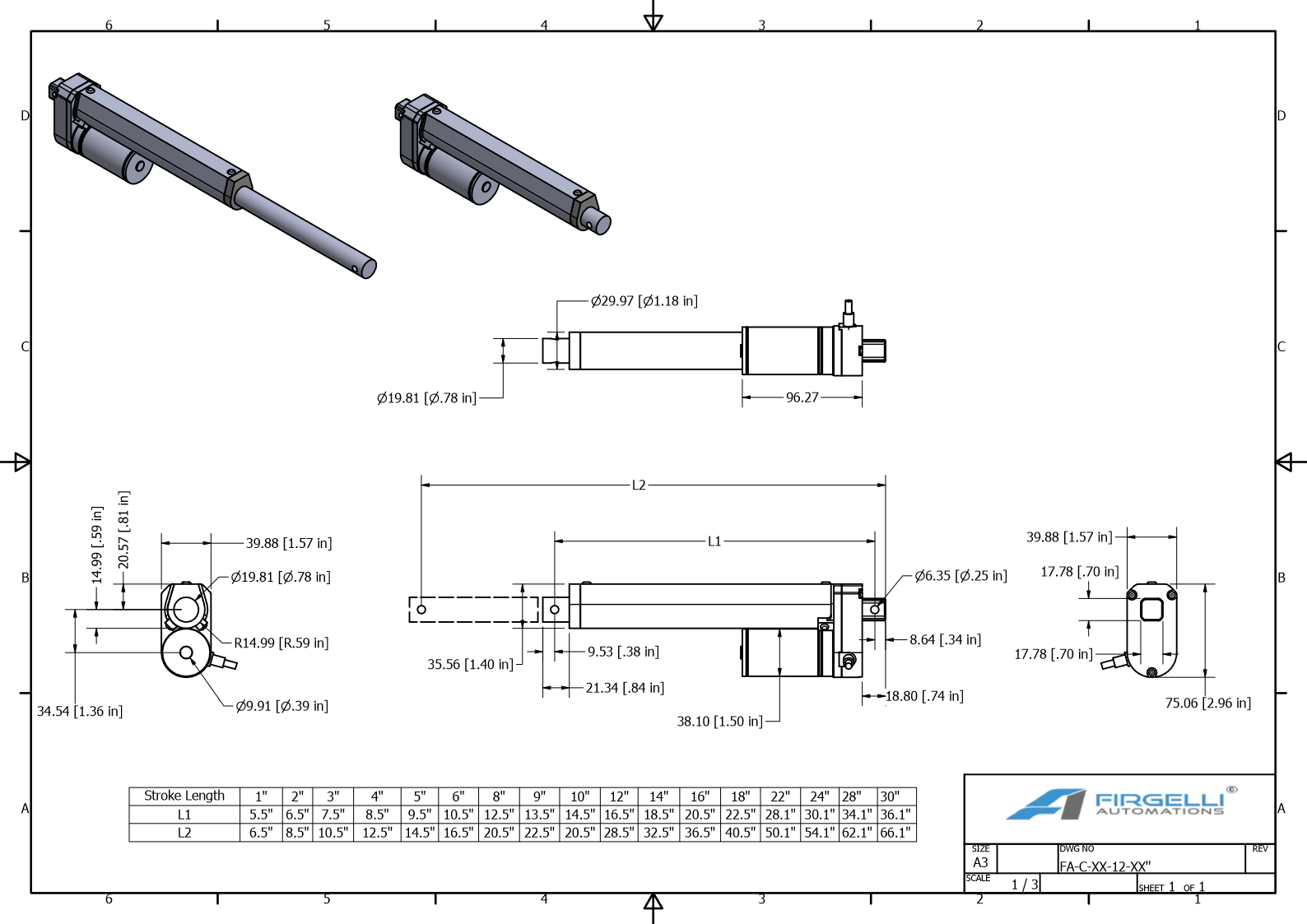

Dimensions

Scroll down for other models

FA-C-45-12-X
Stroke	Retracted Length (L1)	Extended Length (L2)	Weight (lbs)	STEP file	Drawing
1"	5.5 inch	6.5 inch	2.06 lbs	FA-C-45-12-1	FA-C-45-12-1
2"	6.5 inch	8.5 inch	2.11 lbs	FA-C-45-12-2	FA-C-45-12-2
3"	7.5 inch	10.5 inch	2.16 lbs	FA-C-45-12-3	FA-C-45-12-3
4"	8.5 inch	12.5 inch	2.21 lbs	FA-C-45-12-4	FA-C-45-12-4
5"	9.5 inch	14.5 inch	2.24 lbs	FA-C-45-12-5	FA-C-45-12-5
6"	10.5 inch	16.5 inch	2.25 lbs	FA-C-45-12-6	FA-C-45-12-6
8"	12.5 inch	20.5 inch	2.35 lbs	FA-C-45-12-8	FA-C-45-12-8
9"	13.5 inch	22.5 inch	2.65 lbs	FA-C-45-12-9	FA-C-45-12-9
10"	14.5 inch	24.5 inch	2.75 lbs	FA-C-45-12-10	FA-C-45-12-10
12"	16.5 inch	28.5 inch	3.11 lbs	FA-C-45-12-12	FA-C-45-12-12
14"	18.5 inch	32.5 inch	3.21 lbs	FA-C-45-12-14	FA-C-45-12-14
16"	20.5 inch	36.5 inch	3.32 lbs	FA-C-45-12-16	FA-C-45-12-16
18"	22.5 inch	40.5 inch	3.45 lbs	FA-C-45-12-18	FA-C-45-12-18
22"	28.1 inch	50.1 inch	3.74 lbs	FA-C-45-12-22	FA-C-45-12-22
24"	30.1 inch	54.1 inch	3.98 lbs	FA-C-45-12-24	FA-C-45-12-24
28"	34.1 inch	62.1 inch	4.41 lbs	FA-C-45-12-28	FA-C-45-12-28
30"	36.1 inch	66.1 inch	4.53 lbs	FA-C-45-12-30	FA-C-45-12-30

FA-C-135-12-X
Stroke	Retracted Length (L1)	Extended Length (L2)	Weight (lbs)	STEP file	Drawing
1"	5.5 inch	6.5 inch	2.06 lbs	FA-C-135-12-1	FA-C-135-12-1
2"	6.5 inch	8.5 inch	2.11 lbs	FA-C-135-12-2	FA-C-135-12-2
3"	7.5 inch	10.5 inch	2.16 lbs	FA-C-135-12-3	FA-C-135-12-3
4"	8.5 inch	12.5 inch	2.21 lbs	FA-C-135-12-4	FA-C-135-12-4
5"	9.5 inch	14.5 inch	2.24 lbs	FA-C-135-12-5	FA-C-135-12-5
6"	10.5 inch	16.5 inch	2.25 lbs	FA-C-135-12-6	FA-C-135-12-6
8"	12.5 inch	20.5 inch	2.35 lbs	FA-C-135-12-8	FA-C-135-12-8
9"	13.5 inch	22.5 inch	2.65 lbs	FA-C-135-12-9	FA-C-135-12-9
10"	14.5 inch	24.5 inch	2.75 lbs	FA-C-135-12-10	FA-C-135-12-10
12"	16.5 inch	28.5 inch	3.11 lbs	FA-C-135-12-12	FA-C-135-12-12
14"	18.5 inch	32.5 inch	3.21 lbs	FA-C-135-12-14	FA-C-135-12-14
16"	20.5 inch	36.5 inch	3.32 lbs	FA-C-135-12-16	FA-C-135-12-16
18"	22.5 inch	40.5 inch	3.45 lbs	FA-C-135-12-18	FA-C-135-12-18
22"	28.1 inch	50.1 inch	3.74 lbs	FA-C-135-12-22	FA-C-135-12-22
24"	30.1 inch	54.1 inch	3.98 lbs	FA-C-135-12-24	FA-C-135-12-24
28"	34.1 inch	62.1 inch	4.41 lbs	FA-C-135-12-28	FA-C-135-12-28
30"	36.1 inch	66.1 inch	4.53 lbs	FA-C-135-12-30	FA-C-135-12-30

FA-C-225-12-X
Stroke	Retracted Length (L1)	Extended Length (L2)	Weight (lbs)	STEP file	Drawing
1"	5.5 inch	6.5 inch	2.06 lbs	FA-C-225-12-1	FA-C-225-12-1
2"	6.5 inch	8.5 inch	2.11 lbs	FA-C-225-12-2	FA-C-225-12-2
3"	7.5 inch	10.5 inch	2.16 lbs	FA-C-225-12-3	FA-C-225-12-3
4"	8.5 inch	12.5 inch	2.21 lbs	FA-C-225-12-4	FA-C-225-12-4
5"	9.5 inch	14.5 inch	2.24 lbs	FA-C-225-12-5	FA-C-225-12-5
6"	10.5 inch	16.5 inch	2.25 lbs	FA-C-225-12-6	FA-C-225-12-6
8"	12.5 inch	20.5 inch	2.35 lbs	FA-C-225-12-8	FA-C-225-12-8
9"	13.5 inch	22.5 inch	2.65 lbs	FA-C-225-12-9	FA-C-225-12-9
10"	14.5 inch	24.5 inch	2.75 lbs	FA-C-225-12-10	FA-C-225-12-10
12"	16.5 inch	28.5 inch	3.11 lbs	FA-C-225-12-12	FA-C-225-12-12
14"	18.5 inch	32.5 inch	3.21 lbs	FA-C-225-12-14	FA-C-225-12-14
16"	20.5 inch	36.5 inch	3.32 lbs	FA-C-225-12-16	FA-C-225-12-16
18"	22.5 inch	40.5 inch	3.45 lbs	FA-C-225-12-18	FA-C-225-12-18
22"	28.1 inch	50.1 inch	3.74 lbs	FA-C-225-12-22	FA-C-225-12-22
24"	30.1 inch	54.1 inch	3.98 lbs	FA-C-225-12-24	FA-C-225-12-24
28"	34.1 inch	62.1 inch	4.41 lbs	FA-C-225-12-28	FA-C-225-12-28
30"	36.1 inch	66.1 inch	4.53 lbs	FA-C-225-12-30	FA-C-225-12-30

Speed and Load curves
12v Charts

Actuator Dimensions

Click on each image to get the PDF dimensions sheet. All SKU's are below. First all 45-lbs force models then the 135-lbs and 225-lbs models. For all Hole to Hole open and closed dimensions click here

FA-C-45-12-X
Stroke	STEP file	Drawing
1"	FA-C-45-12-1	FA-C-45-12-1
2"	FA-C-45-12-2	FA-C-45-12-2
3"	FA-C-45-12-3	FA-C-45-12-3
4"	FA-C-45-12-4	FA-C-45-12-4
5"	FA-C-45-12-5	FA-C-45-12-5
6"	FA-C-45-12-6	FA-C-45-12-6
8"	FA-C-45-12-8	FA-C-45-12-8
9"	FA-C-45-12-9	FA-C-45-12-9
10"	FA-C-45-12-10	FA-C-45-12-10
12"	FA-C-45-12-12	FA-C-45-12-12
14"	FA-C-45-12-14	FA-C-45-12-14
16"	FA-C-45-12-16	FA-C-45-12-16
18"	FA-C-45-12-18	FA-C-45-12-18
22"	FA-C-45-12-22	FA-C-45-12-22
24"	FA-C-45-12-24	FA-C-45-12-24
28"	FA-C-45-12-28	FA-C-45-12-28
30"	FA-C-45-12-30	FA-C-45-12-30

FA-C-135-12-X
Stroke	STEP file	Drawing
1"	FA-C-135-12-1	FA-C-135-12-1
2"	FA-C-135-12-2	FA-C-135-12-2
3"	FA-C-135-12-3	FA-C-135-12-3
4"	FA-C-135-12-4	FA-C-135-12-4
5"	FA-C-135-12-5	FA-C-135-12-5
6"	FA-C-135-12-6	FA-C-135-12-6
8"	FA-C-135-12-8	FA-C-135-12-8
9"	FA-C-135-12-9	FA-C-135-12-9
10"	FA-C-135-12-10	FA-C-135-12-10
12"	FA-C-135-12-12	FA-C-135-12-12
14"	FA-C-135-12-14	FA-C-135-12-14
16"	FA-C-135-12-16	FA-C-135-12-16
18"	FA-C-135-12-18	FA-C-135-12-18
22"	FA-C-135-12-22	FA-C-135-12-22
24"	FA-C-135-12-24	FA-C-135-12-24
28"	FA-C-135-12-28	FA-C-135-12-28
30"	FA-C-135-12-30	FA-C-135-12-30

FA-C-225-12-X
Stroke	STEP file	Drawing
1"	FA-C-225-12-1	FA-C-225-12-1
2"	FA-C-225-12-2	FA-C-225-12-2
3"	FA-C-225-12-3	FA-C-225-12-3
4"	FA-C-225-12-4	FA-C-225-12-4
5"	FA-C-225-12-5	FA-C-225-12-5
6"	FA-C-225-12-6	FA-C-225-12-6
8"	FA-C-225-12-8	FA-C-225-12-8
9"	FA-C-225-12-9	FA-C-225-12-9
10"	FA-C-225-12-10	FA-C-225-12-10
12"	FA-C-225-12-12	FA-C-225-12-12
14"	FA-C-225-12-14	FA-C-225-12-14
16"	FA-C-225-12-16	FA-C-225-12-16
18"	FA-C-225-12-18	FA-C-225-12-18
22"	FA-C-225-12-22	FA-C-225-12-22
24"	FA-C-225-12-24	FA-C-225-12-24
28"	FA-C-225-12-28	FA-C-225-12-28
30"	FA-C-225-12-30	FA-C-225-12-30
