Micro Pen Actuator with Feedback

Micro Pen Actuator with Feedback

Micro Pen Actuator with Feedback

$135.95 USD
Model #FA-BS16-4-12-20
Stroke
Force
Quantity
We have 9 of these in stock We have 9 of these in stock
and you currently have in your cart.

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

  • Product description

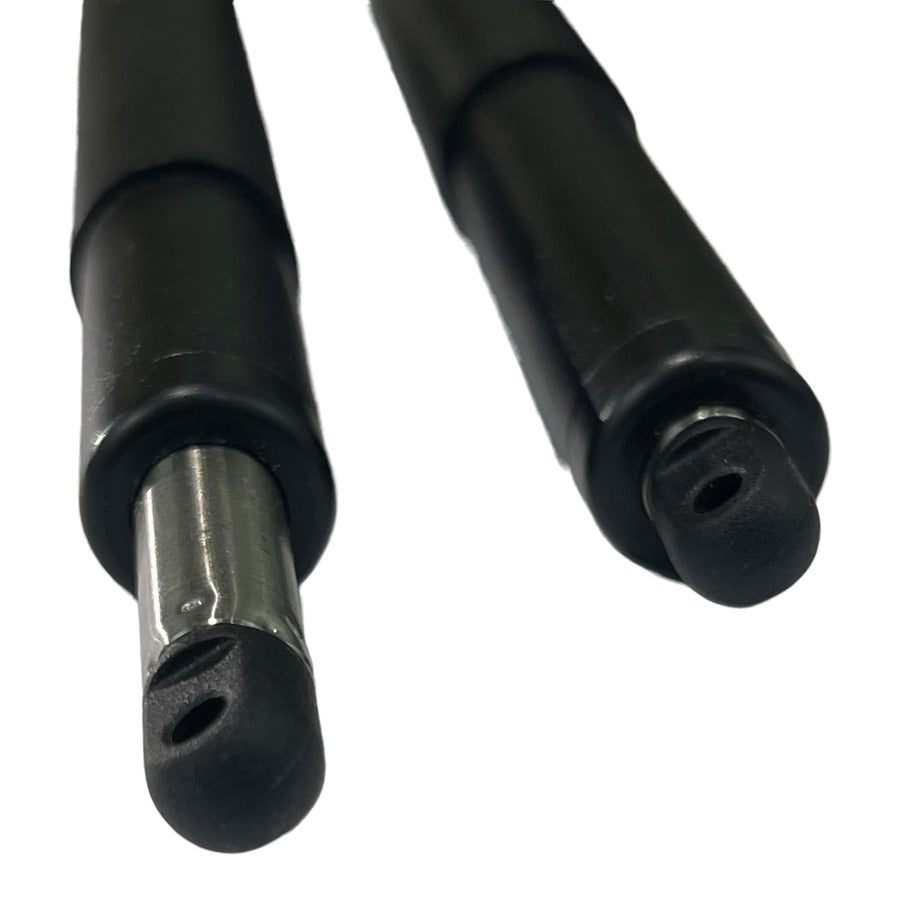

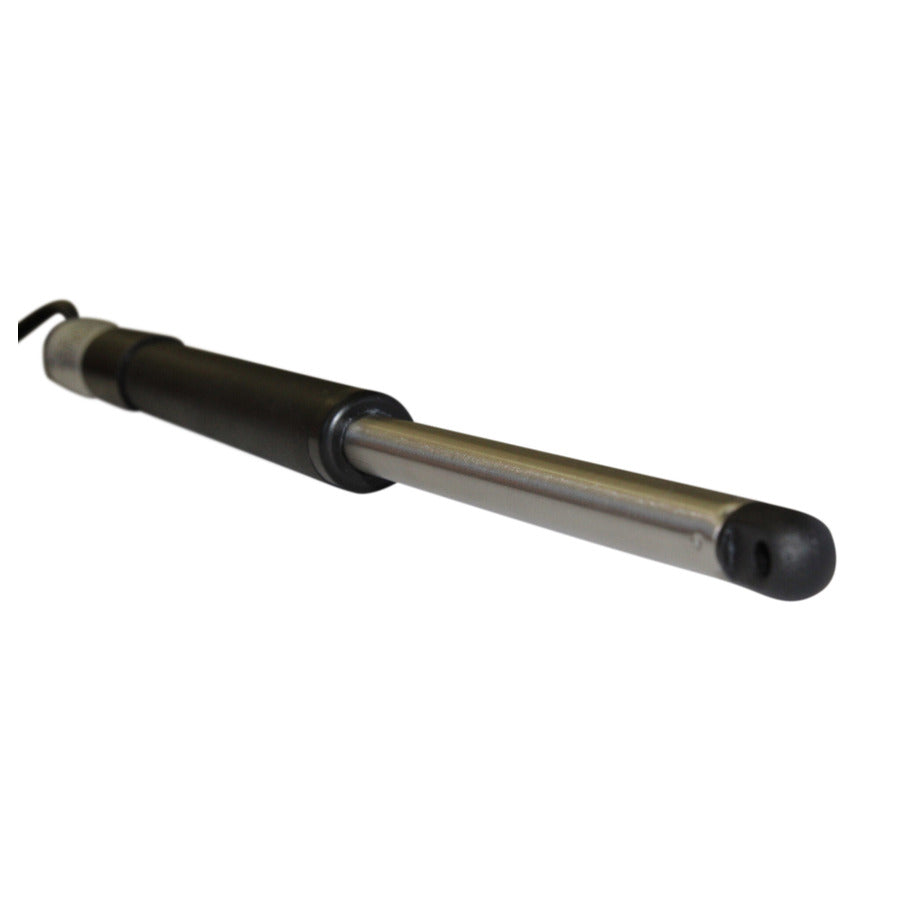

    Need a Micro Pen Actuator with Feedback that delivers the premium results you're looking for? The Firgelli Micro Pen has been specifically designed to provide the performance you need, no matter what the nature of your business may be.

    Durable, High-grade Components

    Each Micro Actuator comprises high-grade components that have been built to a demanding specification and put together by time-served engineers. The result is a premium product that has been designed to deliver highly accurate results, even in challenging conditions.

    Created to provide robust, consistent performance, Micro Linear Actuators offer a dependable solution to your design and production requirements, no matter what your operation might be.

    Exceptional Performance

    If performance matters to you, then look no further than this actuator. Equipped with Hall sensor feedback, that results in an exceptional level of positional control, this Actuator also offers overload protection, which minimizes the risk of unexpected failure when it matters most.

    Modest Dimensions for Optimum Versatility

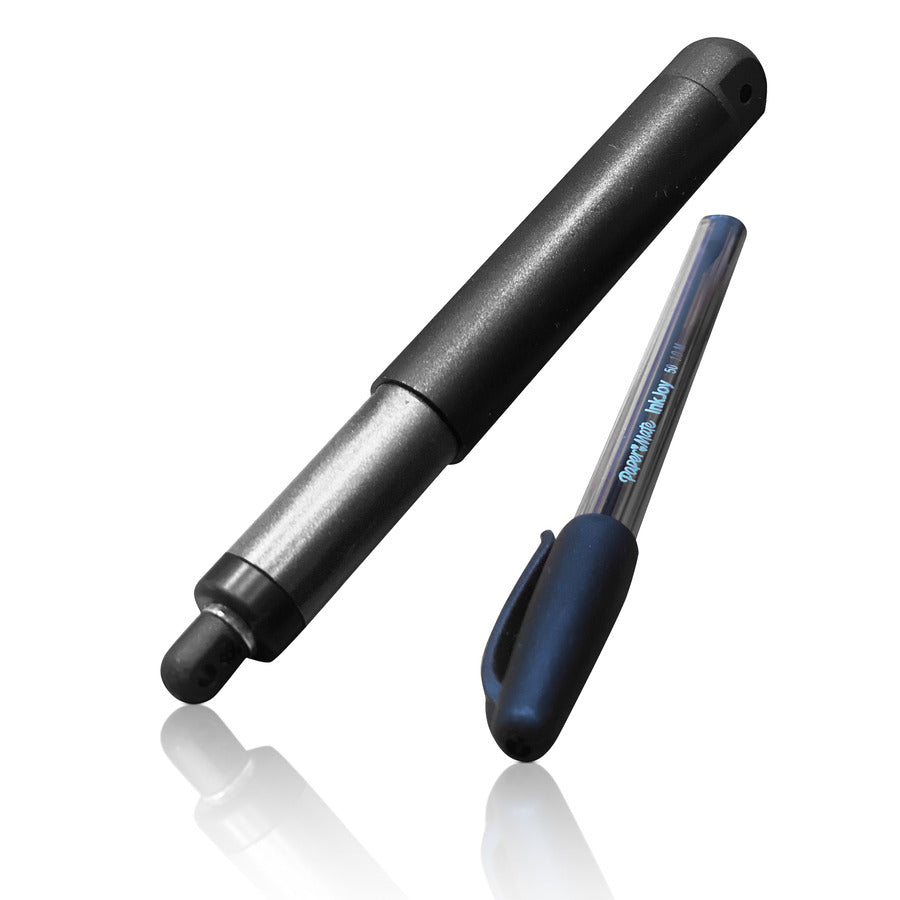

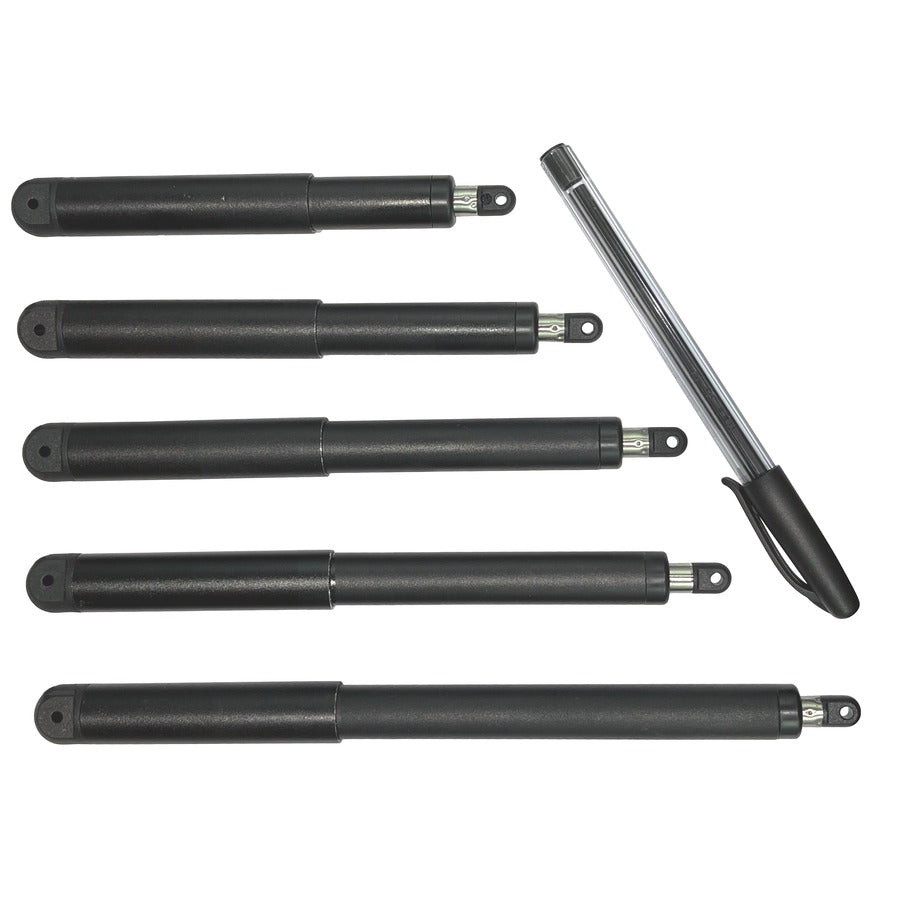

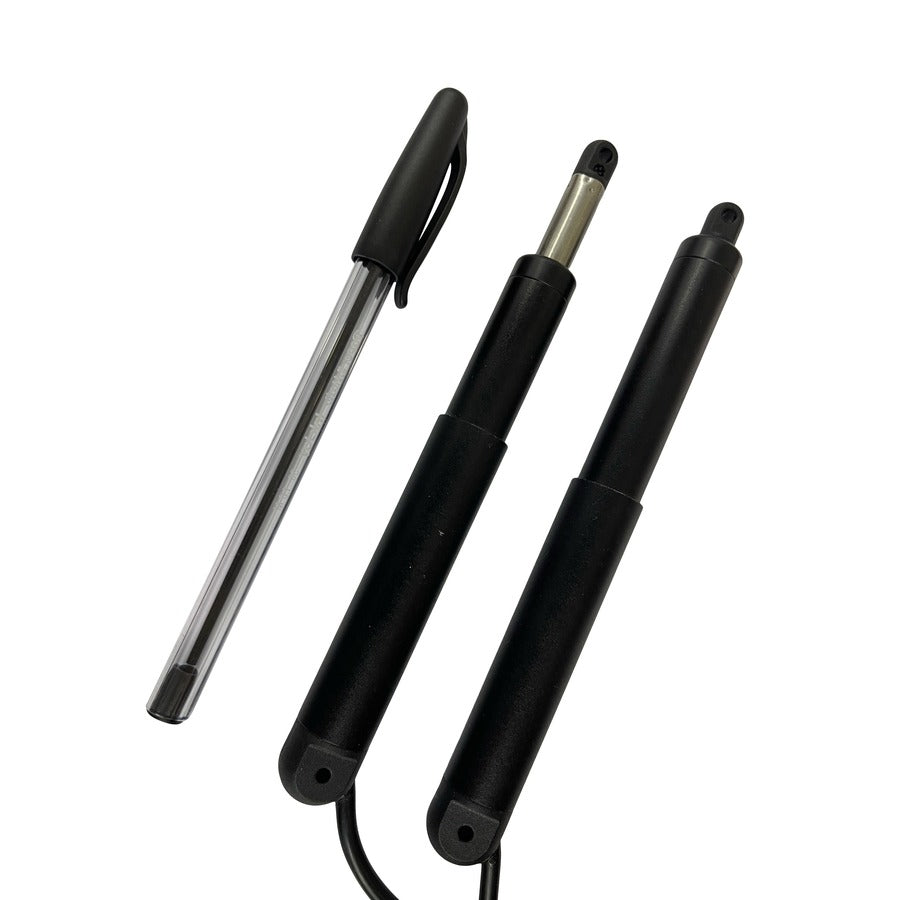

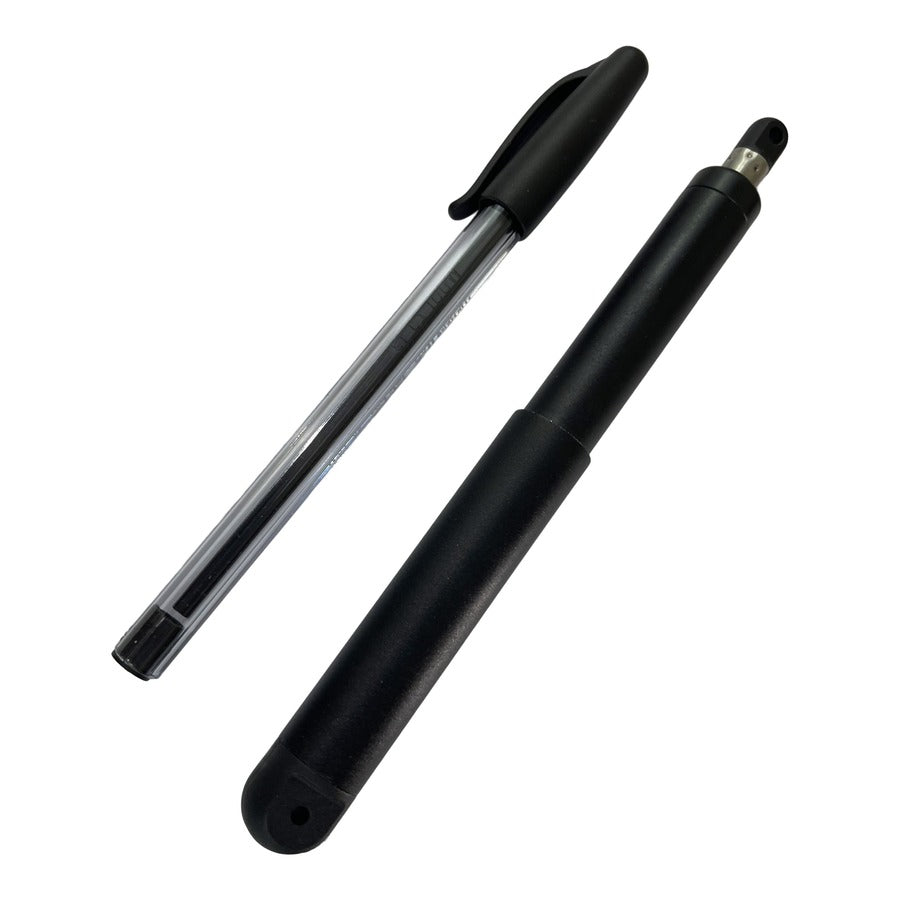

    One of the main reasons why a growing number of companies are choosing this Micro Pen Actuator for their operations is its relatively small dimensions - measuring just 16mm in diameter, it's still capable of offering forces up to 50N (11lbs) at the same time as providing stroke lengths up to 100mm (10cm or approximately 3.93701 inches.

    The Micro Pen Actuator With Feedback is Suitable for a Wide Range of Applications

    Whether you have a robotics operation and need a suitable Actuator that will deliver the results you're looking for or are involved in some form of consumer electronics, a Micro Pen Actuator with Feedback could be exactly what you're looking for. It's also a good option if your product has hidden flaps or panels that require specialist work.

    This Actuator is a versatile piece of equipment that's useful for environments where a high level of accuracy and detail is essential to good results.

    To synchronous 2 or more actuators together to run at exactly the same speed, we recommend our Control board FCB-1 for the ultimate Actuator control.  This gives you complete actuator control including adjusting limits, speed, and even a series of timer functions to be able to time when an Actuator opens and closes.



  • Specifications

    FA-BS16-4-12-(Stroke) FA-BS16-11-(Stroke) FA-BS16-22-(Stroke)
    Push/Pull Force 20N (4.5-lbs) 50N (11-lbs) 100N (22-lbs)
    Static Force 30N (6.75-lbs) 75N (16.5-lbs) 140N (33-lbs)
    Speed at no load 15mm/sec  (0.6”/sec) 5.8mm/sec  (0.22”/sec) 3mm/sec  (0.22”/sec)
    Voltage 12V 12V 12V
    Max Current at full load 0.3A 0.3A 0.3A
    Duty Cycle 10%
    Operating Temp. Range 23°F to 149°F (-5°C to 65°C)
    Protection Class IP66
    No Load Noise Level 50-65 dB
    Diameter (16mm)  0.62"
    Mounting Ends Plastic O Type
    Screw Type ACME
    Outer Housing Material Aluminum T6063
    Expansion Rod Material Stainless Steel 304
    Limit Switch  Built-In non-adjustable

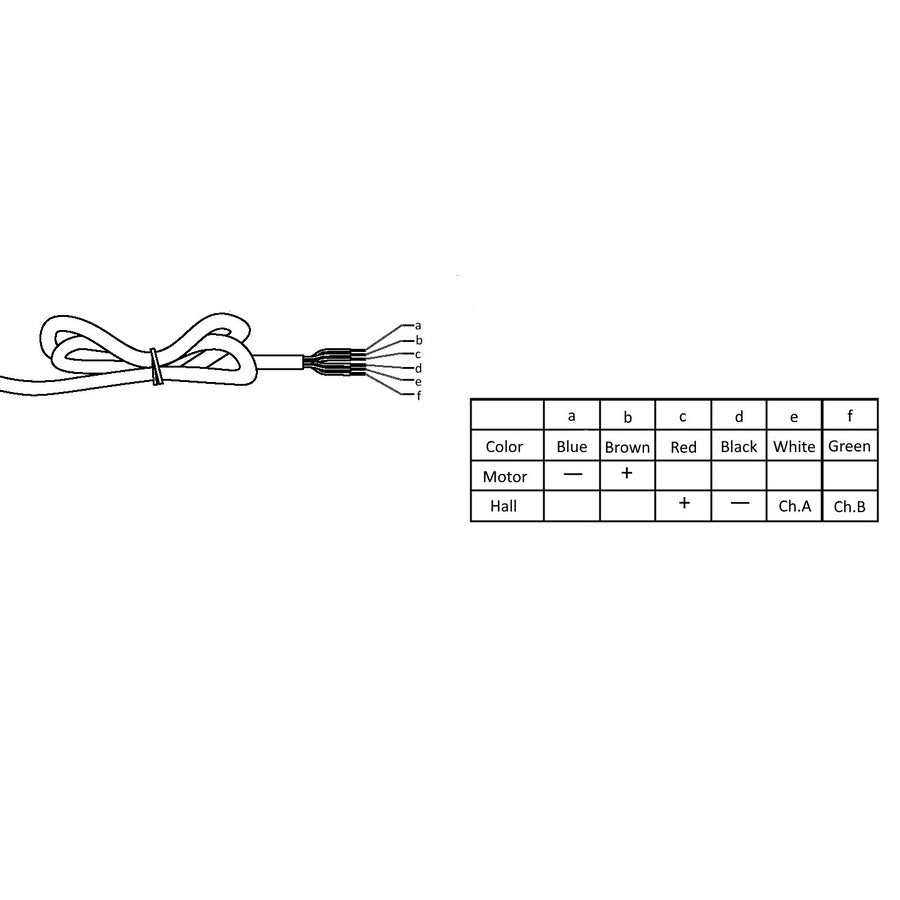

    Feedback Hall Effect Sensor
    Repeatability 0.1mm positional repeatability
    Hall sensor pulses per revolution 360PPR
    Feedback Voltage 5V
    Synchronous Capability Yes, with a Microcontroller
    Cable Length 0.5 feet
    Stroke Length

    Retracted Length

    (Hole to Hole)

    Extended Length

    (Hole to Hole)

    Weight Gram (Ounce) STEP File
    20mm (0.78") 140mm (5.5")
    160mm (6.3") 49 (1.7)
    FA-PL100-12-20
    40mm (1.57") 160mm (6.3") 200mm (7.87")
    59 (2.0) FA-PL100-12-40
    60mm (2.36") 180mm (7.08") 240mm (9.44") 63 (2.22) FA-PL100-12-60
    80mm (3.14") 200mm (7.87") 280mm (11") 75 (2.64) FA-PL100-12-80
    100mm (4") 220mm (8.66")
    320mm (12.59") 81 (2.85) FA-PL100-12-100

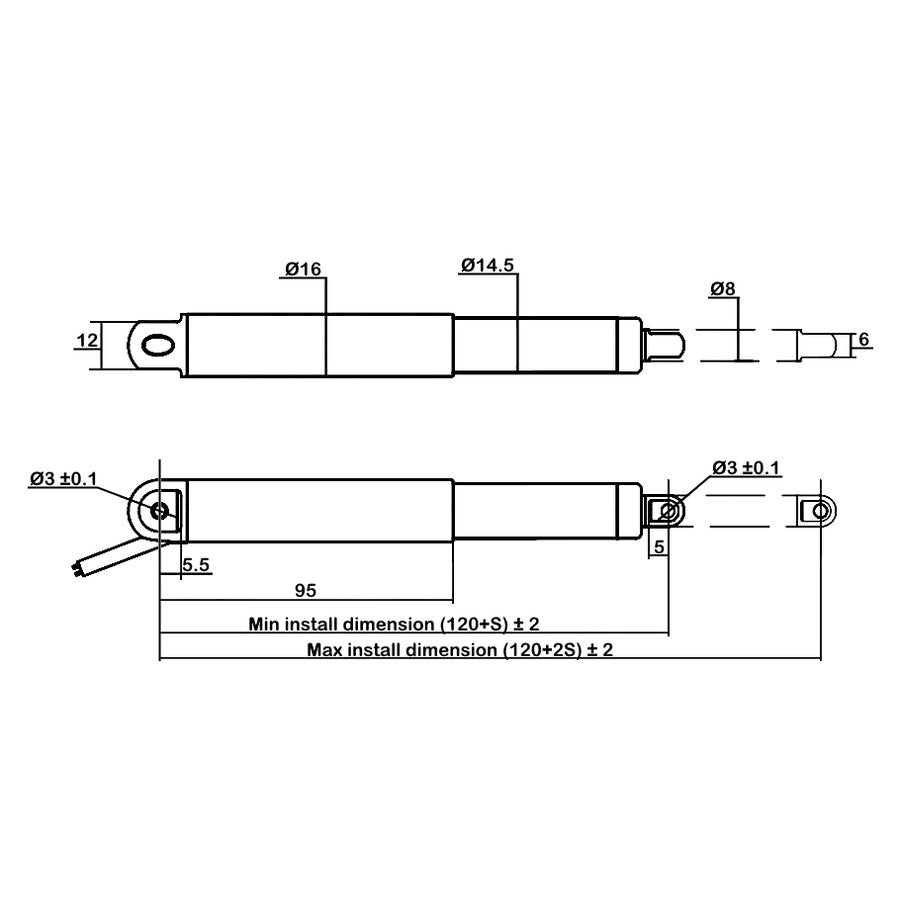

  • Dimensions

  • 3D Step Files

    FA-PL100-12-20

    FA-PL100-12-40

    FA-PL100-12-60

    FA-PL100-12-80

    FA-PL100-12-100

  • Technical curves

    micro actuator force curves
