      Description

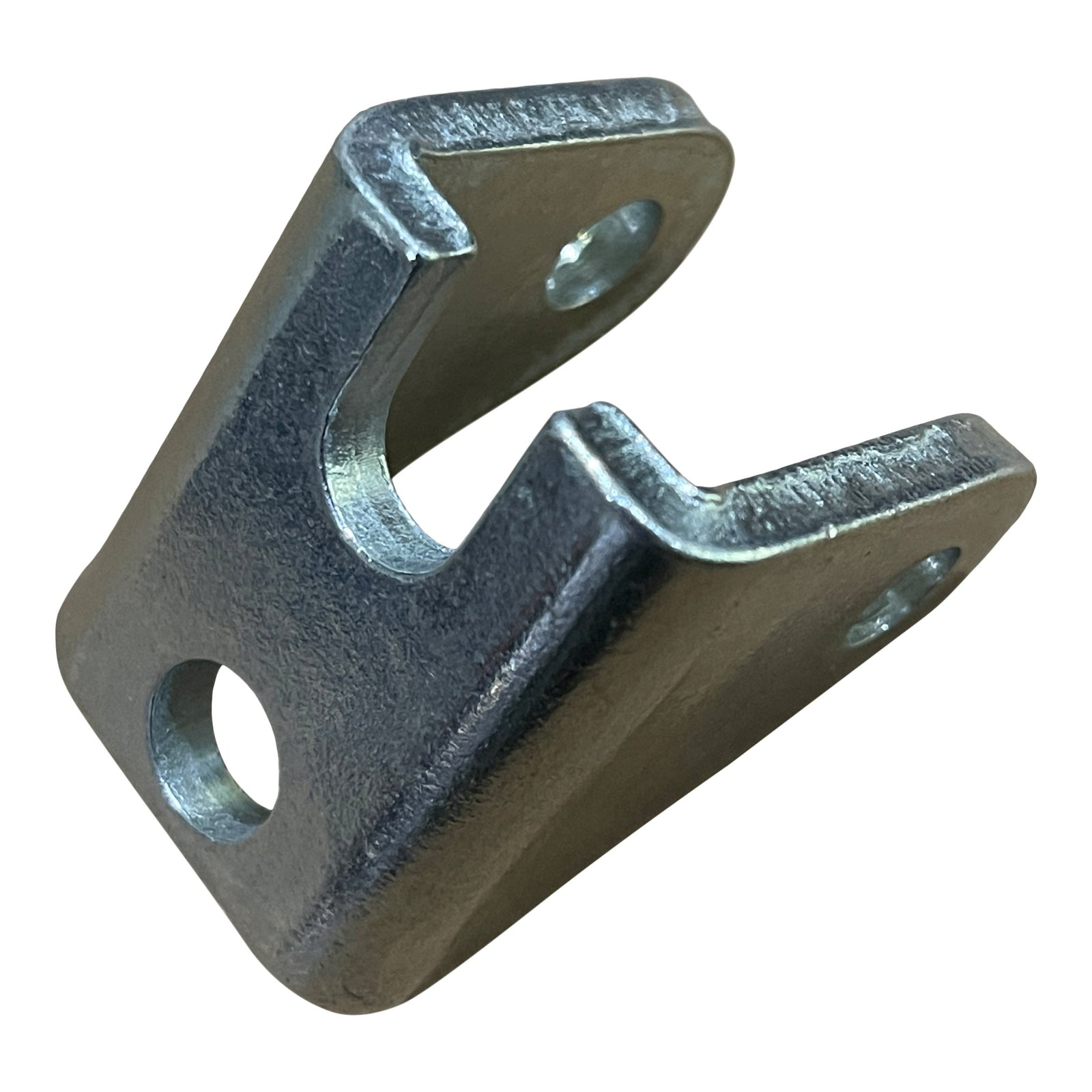

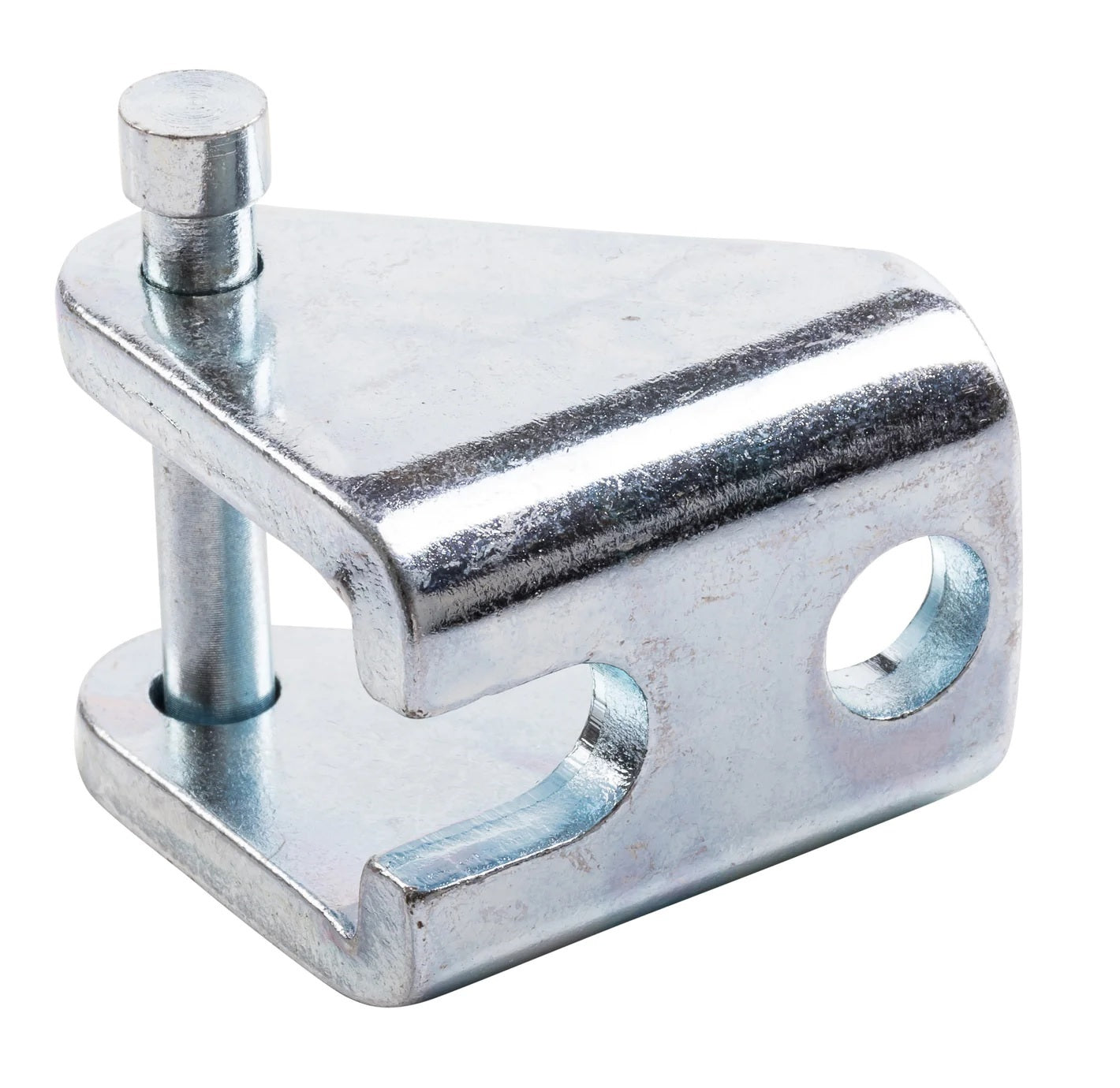

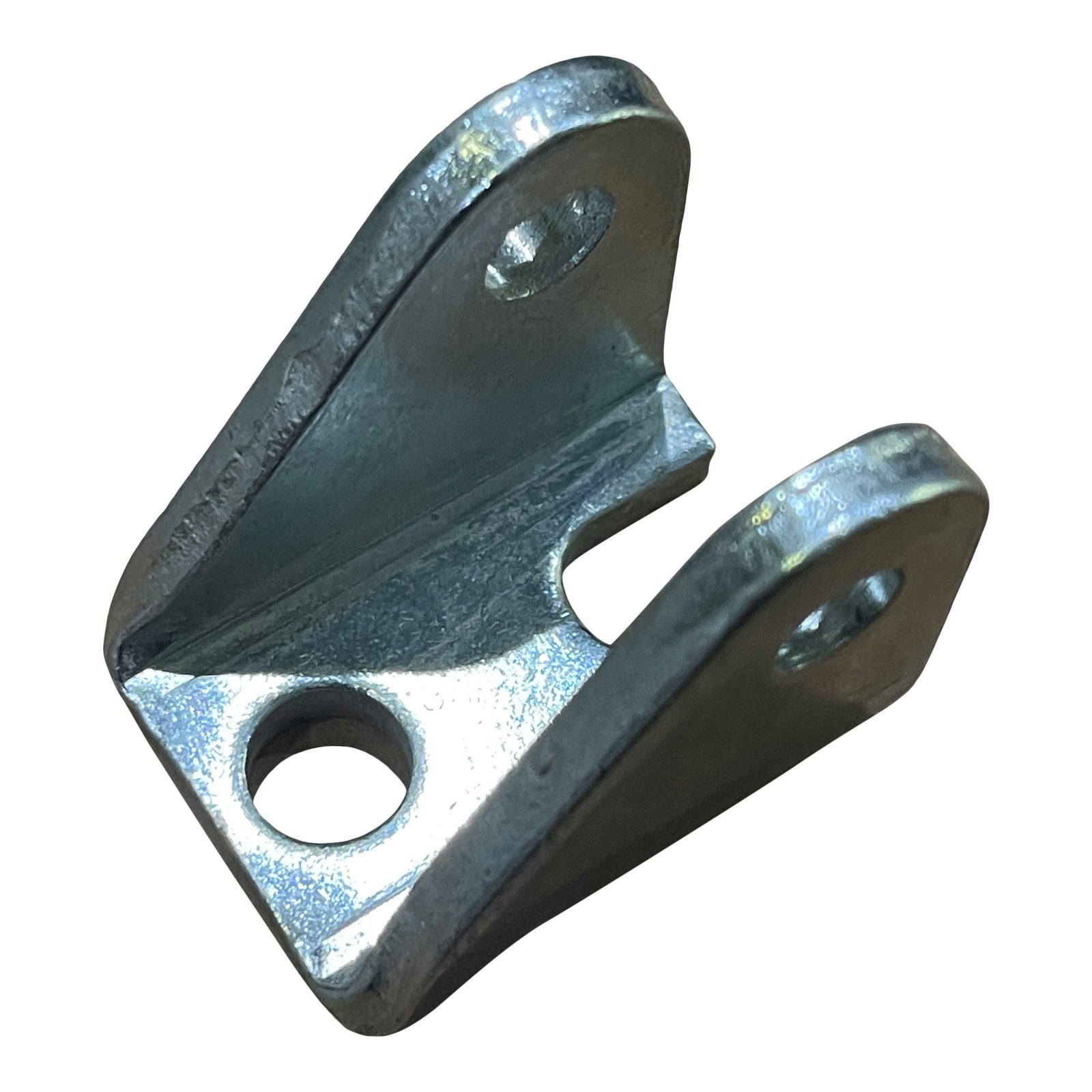

      Mounting bracket for our Super Duty Actuators . Fits on both ends and suits any actuator that has an 8mm dia pin size. Handles up to 1000 lbs. of force, which is more than enough for most applications.

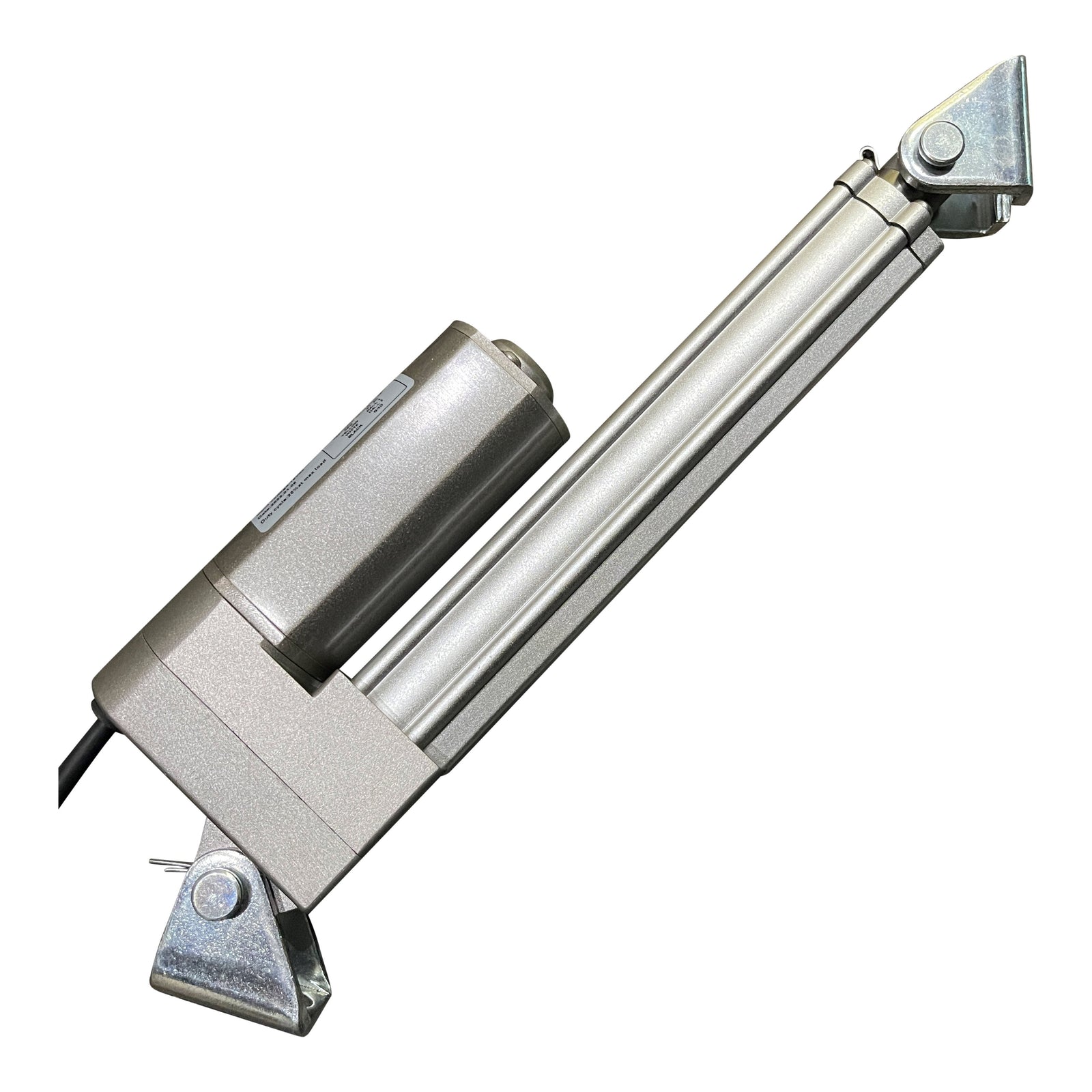

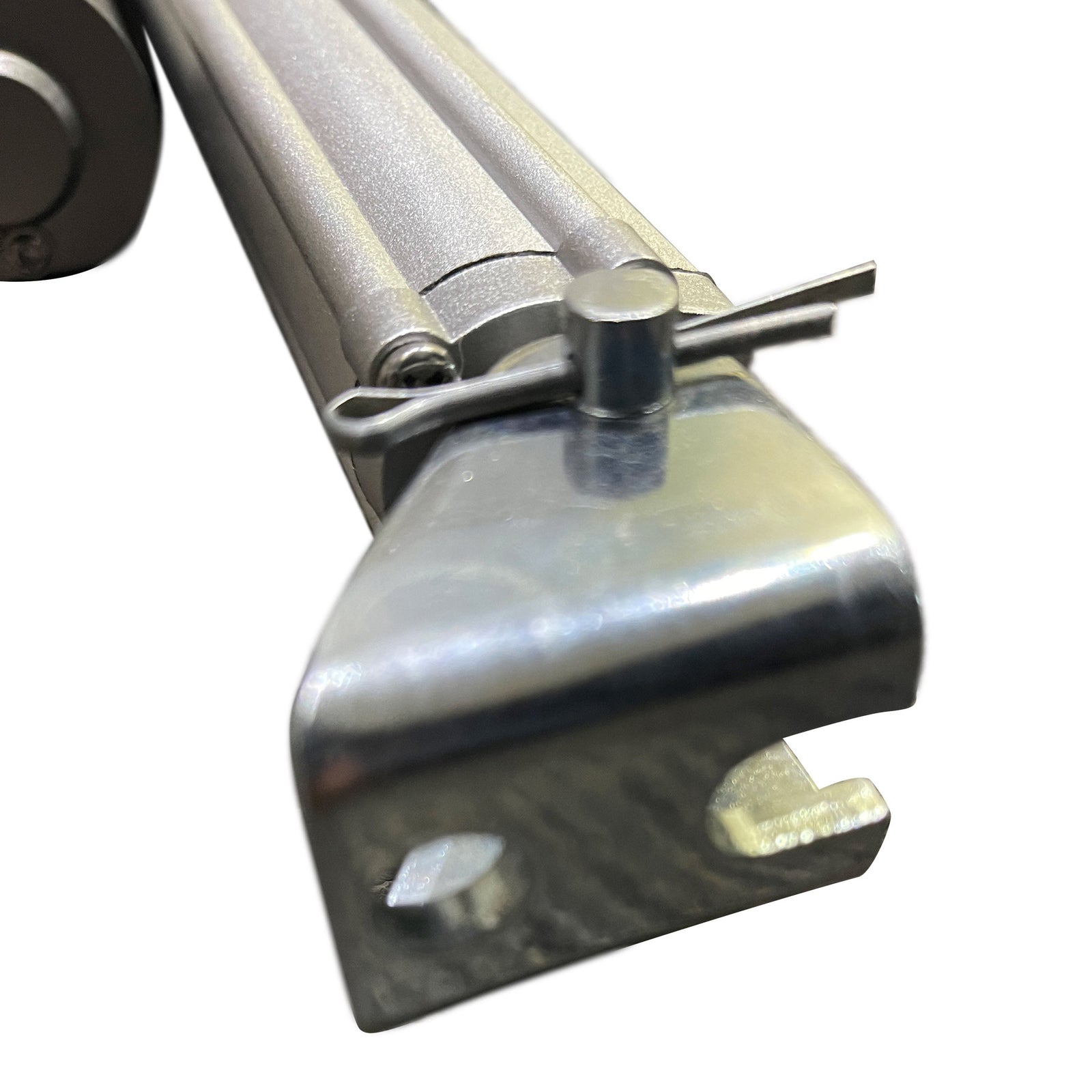

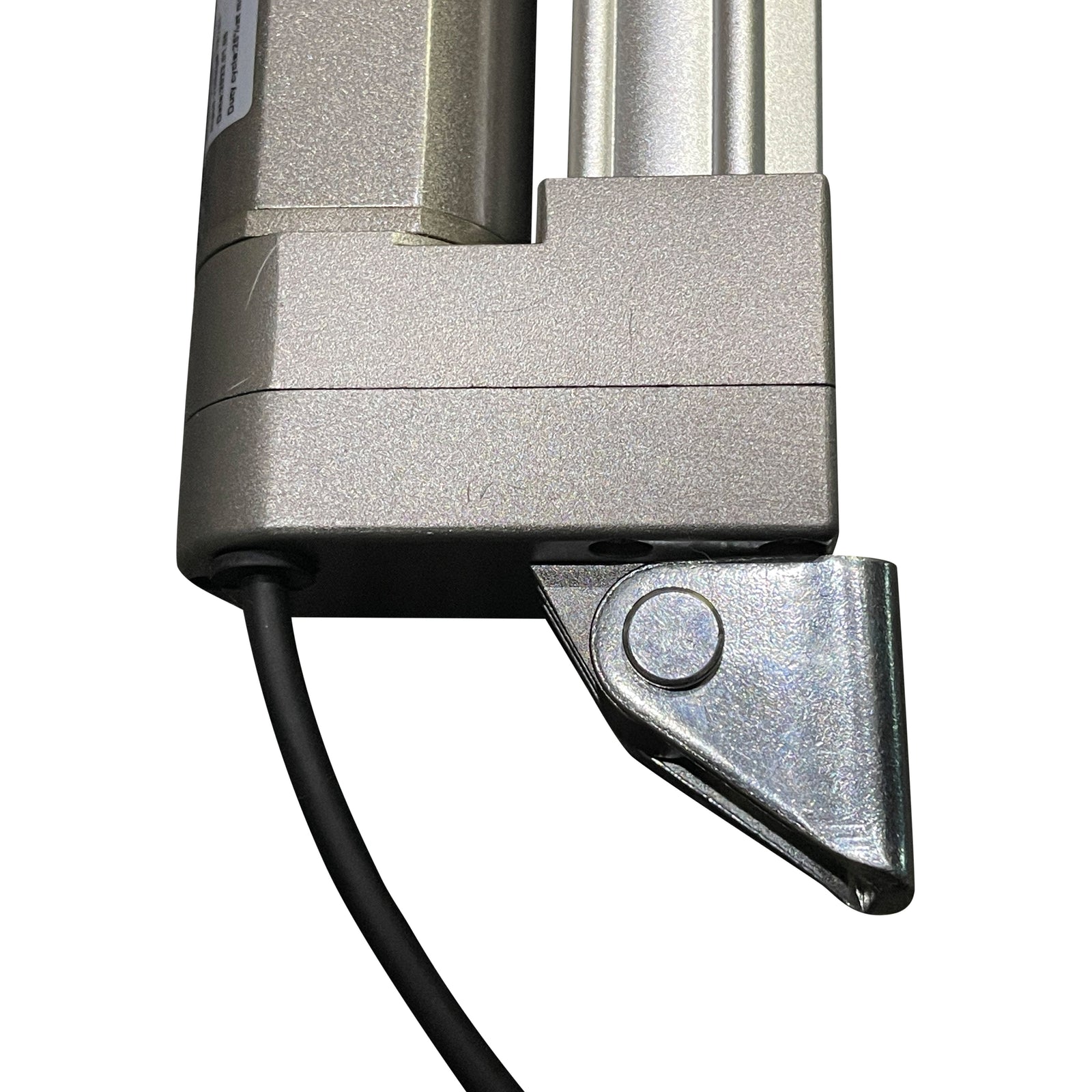

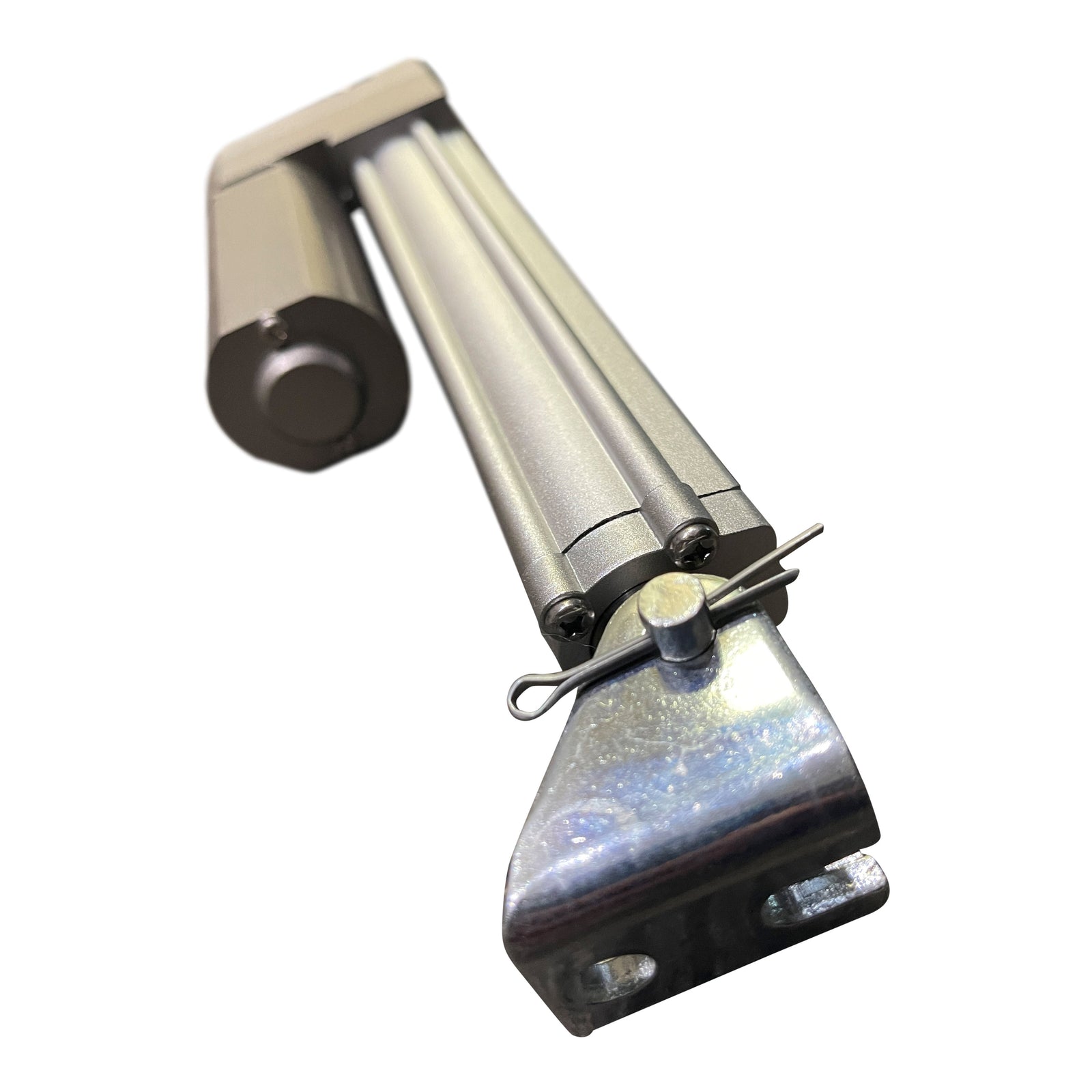

      The MB17 Mounting Bracket was specifically designed to work in tandem with our Super Duty Actuators. Featuring a clevis design with a pin for quick release, as well as an elongated mounting hole for easy adjustment. The chrome-plated steel MB17 mounting bracket is ready to be fitted for quick installation of a Firgelli Automations Super Duty Actuator. To keep the clevis pin in place, a cotter pin is included; however an R-Clip may also be used for regular quick release functionality. As with all clevis type brackets offered by Firgelli Automations, actuators are able to rotate just over 180 degrees pivoting on the clevis pin. This articulation allows them to be used in a variety of 'hinged' applications, as well as opening and closing doors, lids, or trunks; rotating solar panels, actuating agricultural equipment, and more.

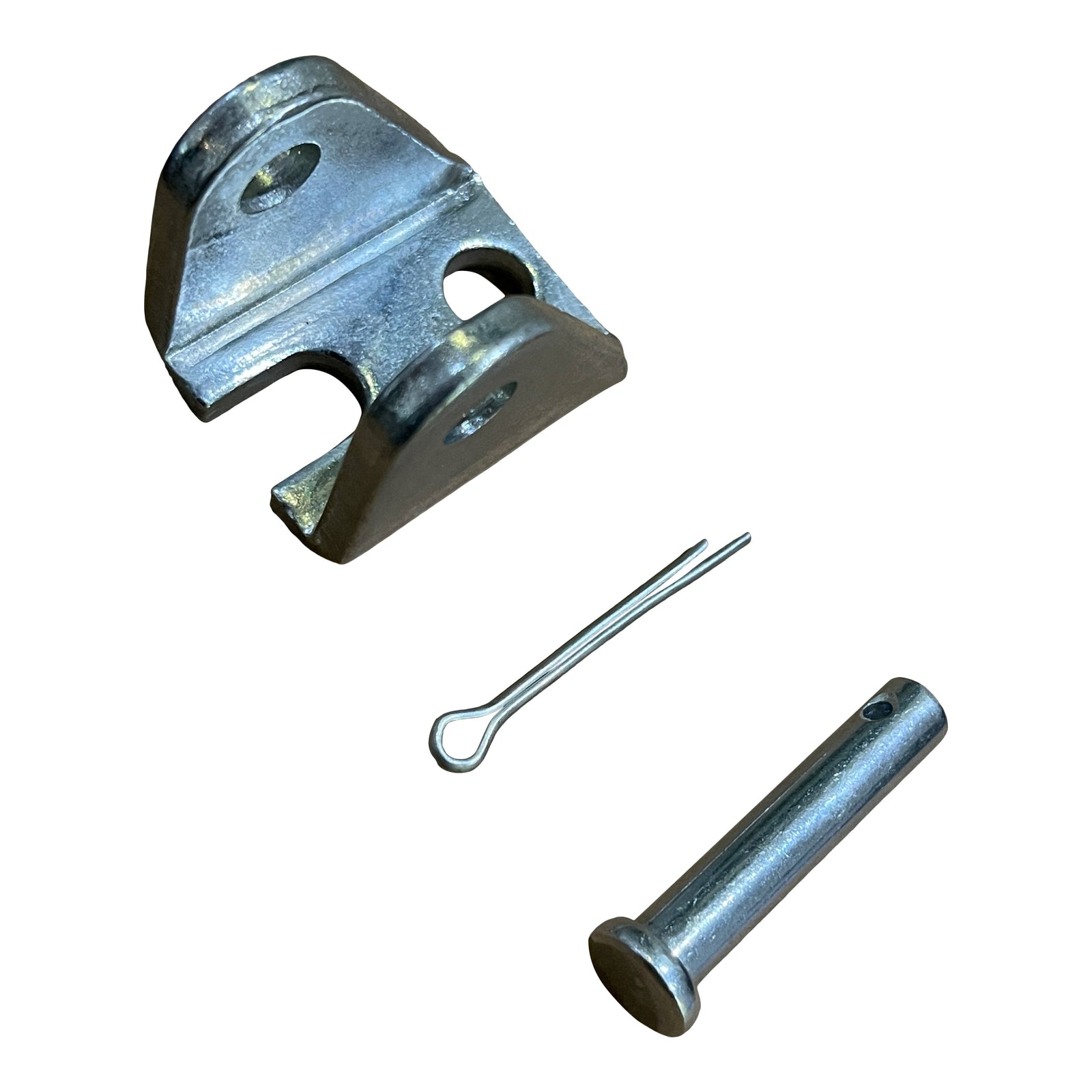

      *Contains 1 bracket, 1 Clevis pin, and 1 cotter pin.

      Technical Drawings

      Super duty actuator bracket
