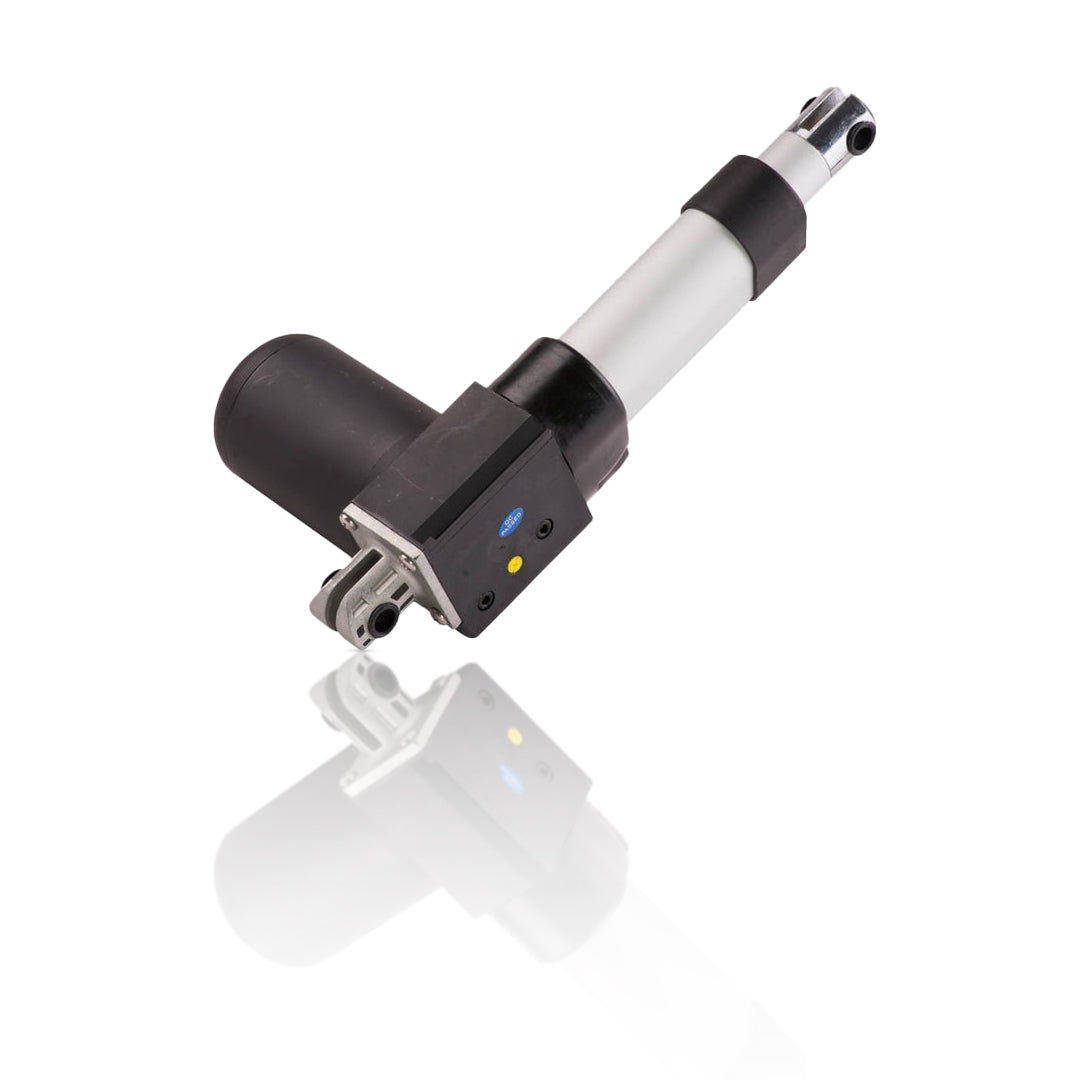

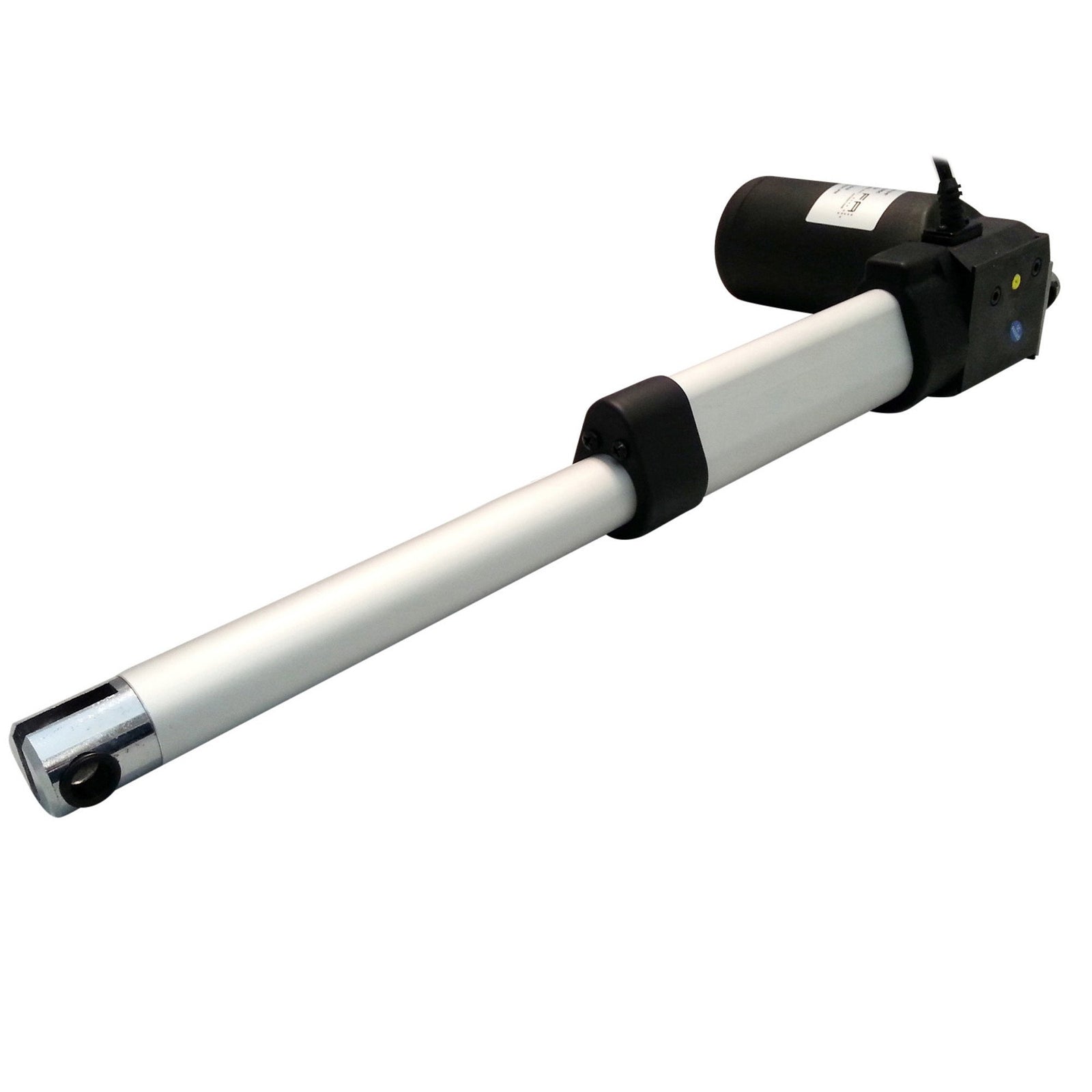

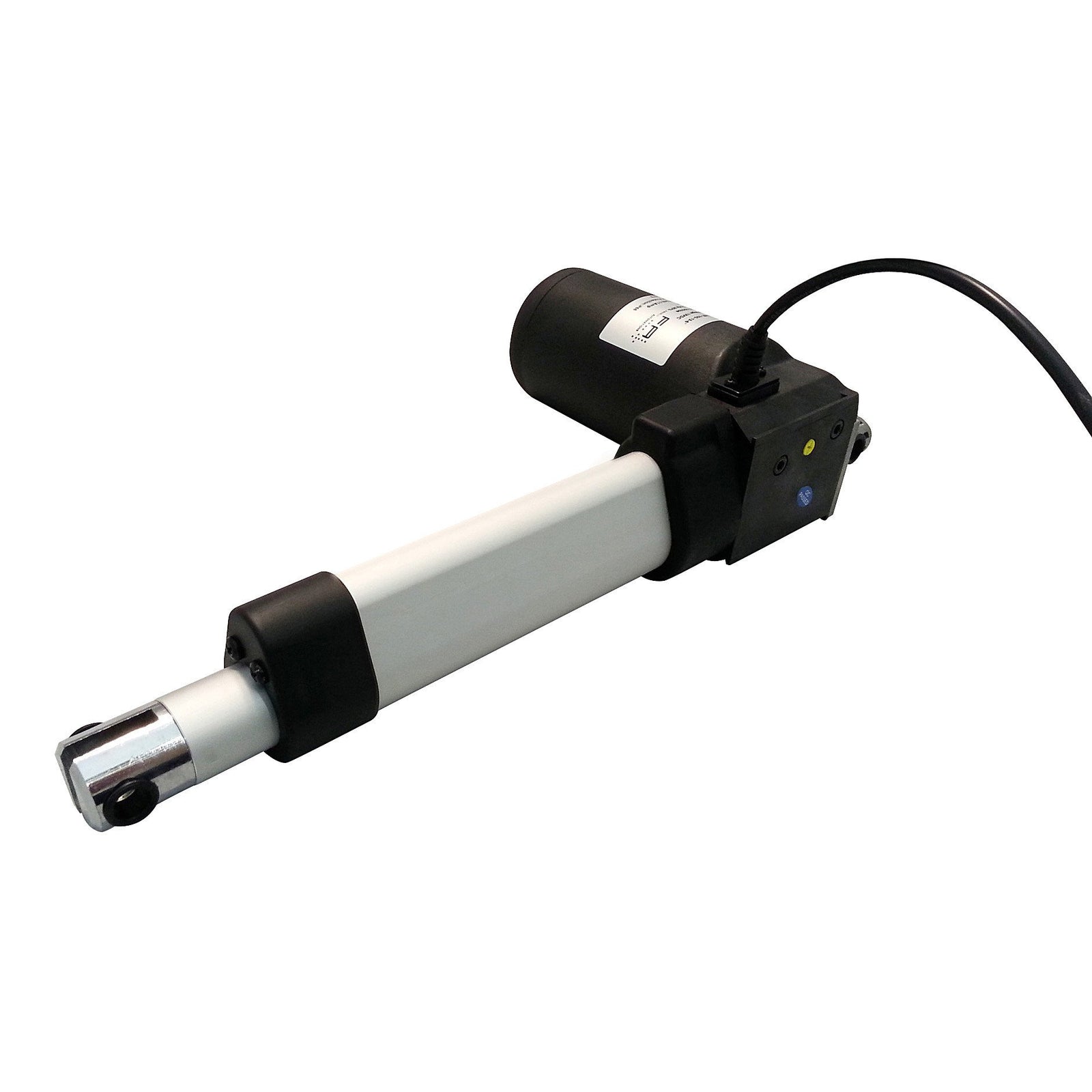

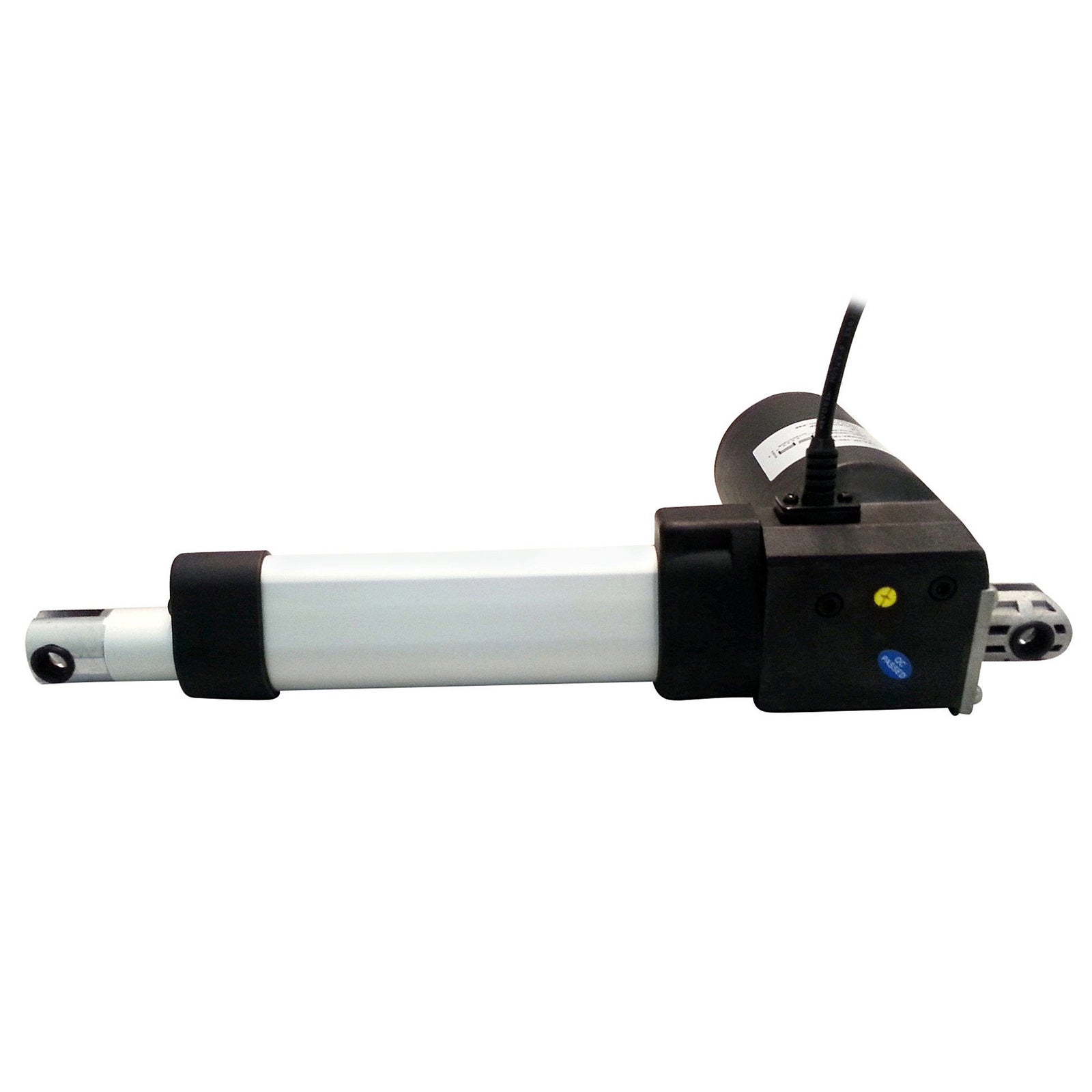

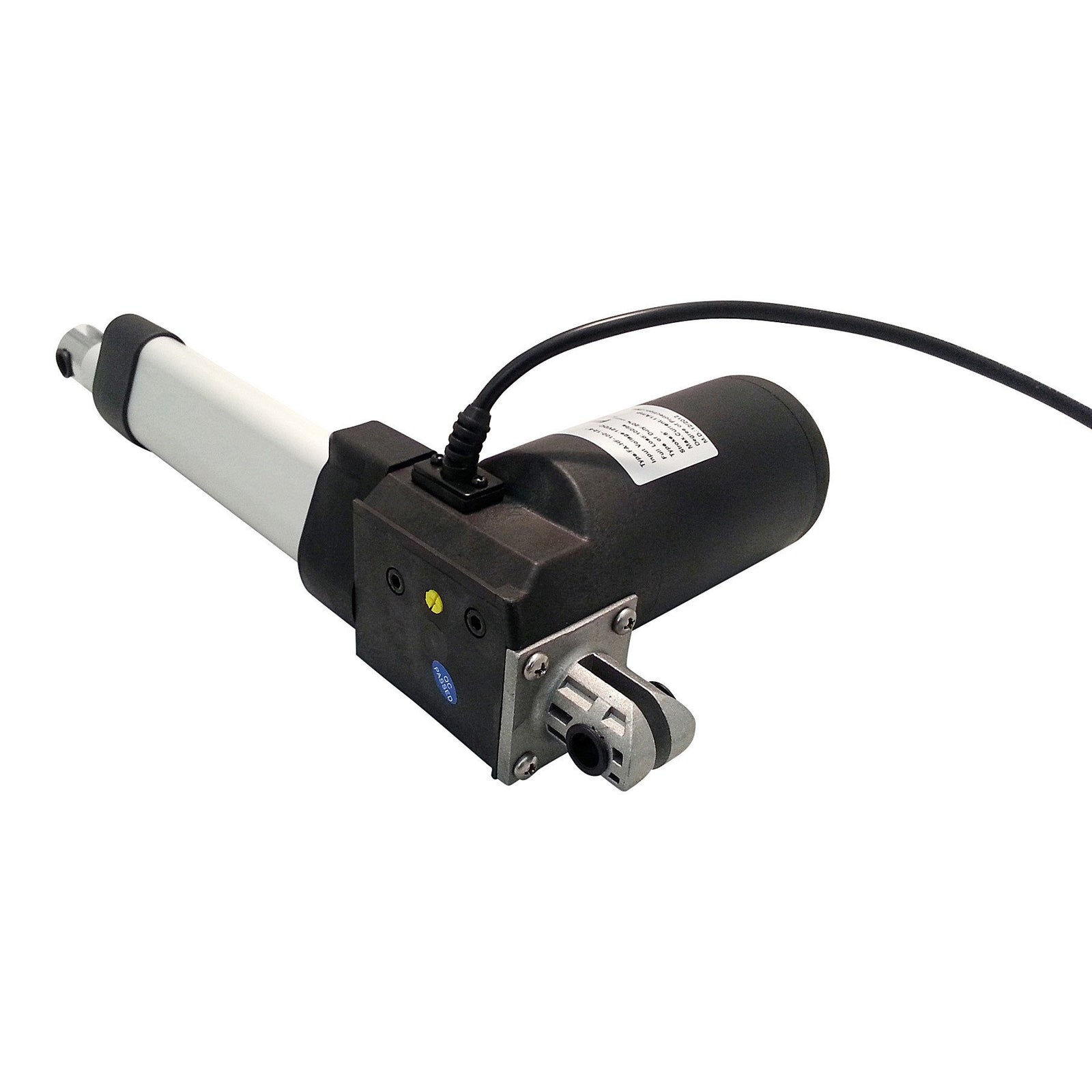

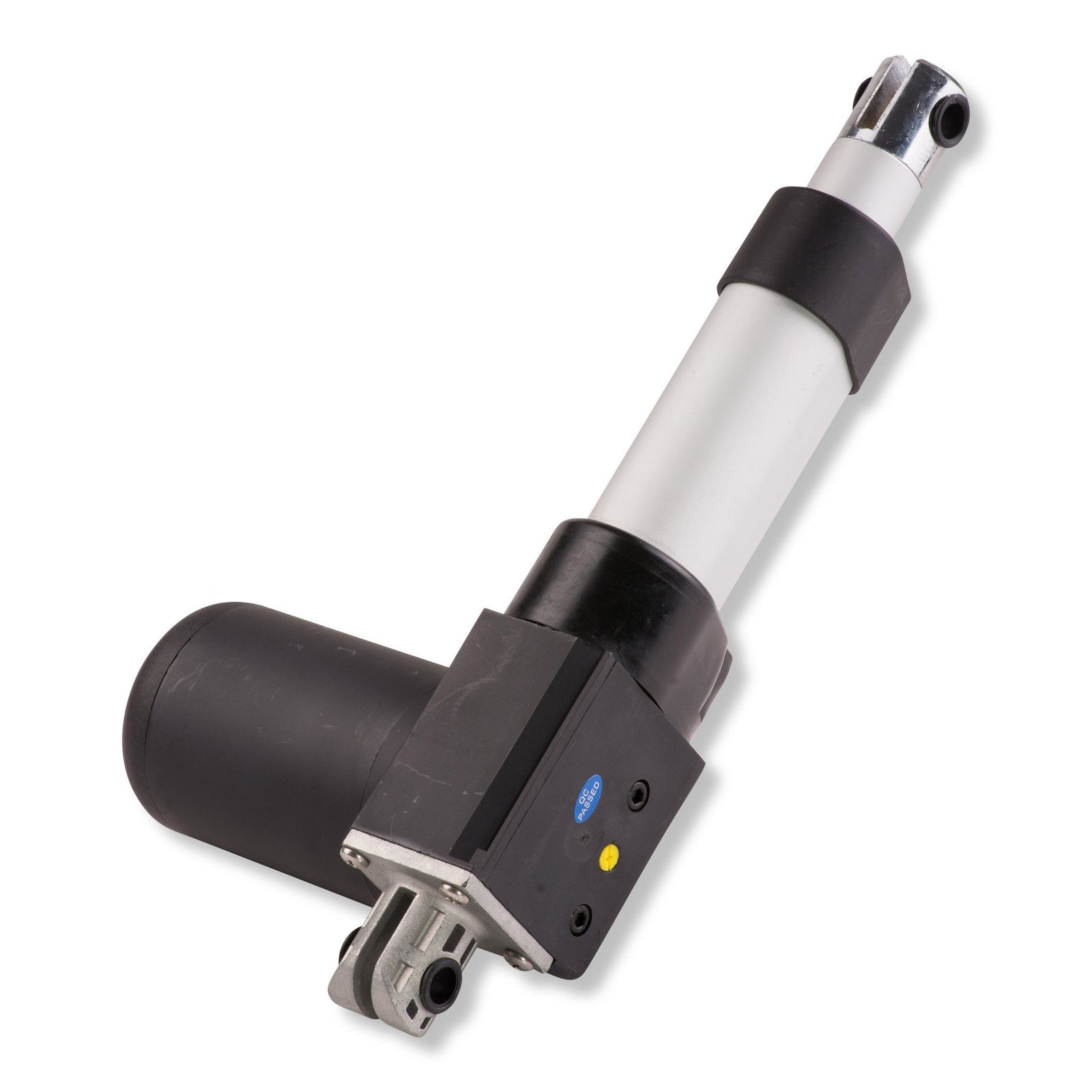

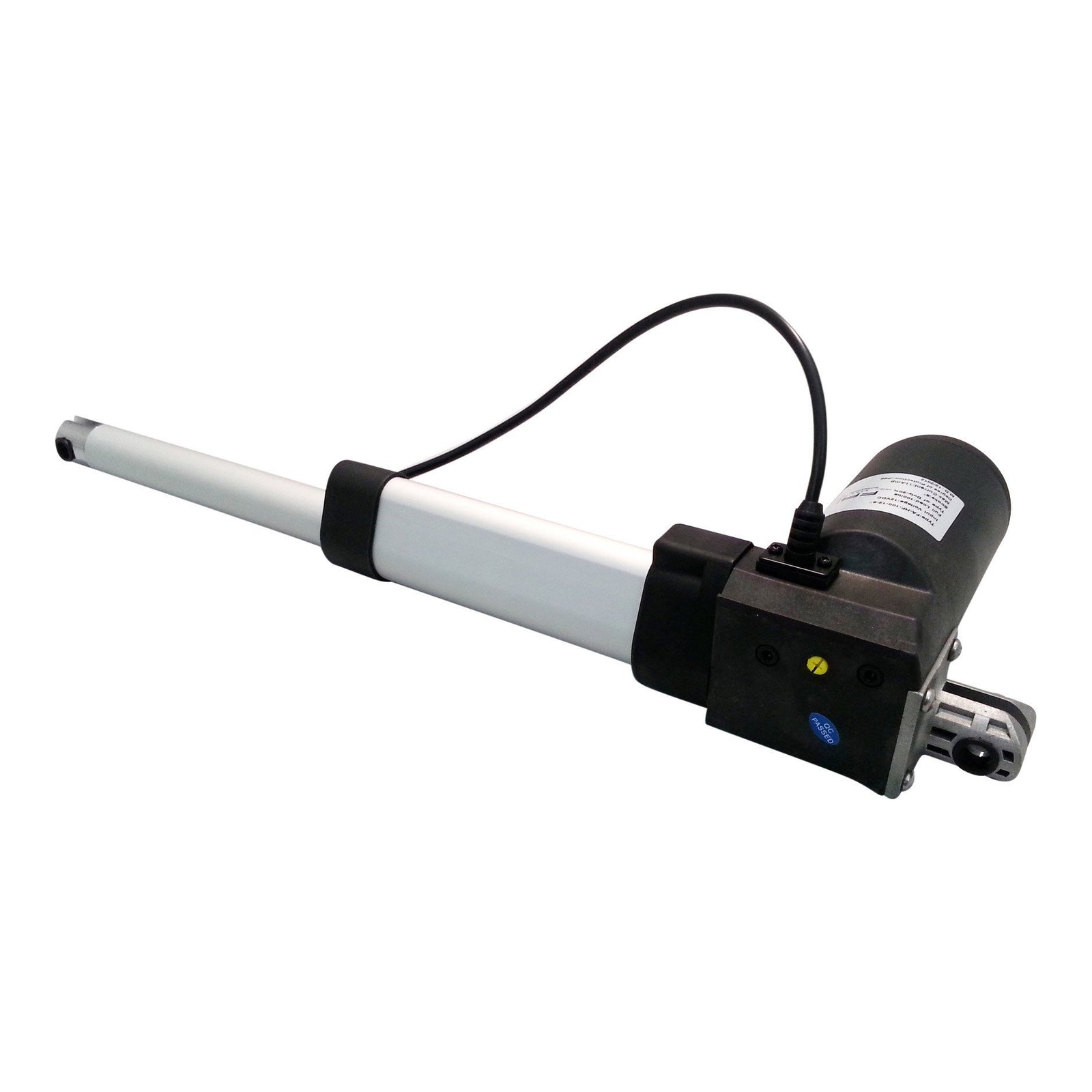

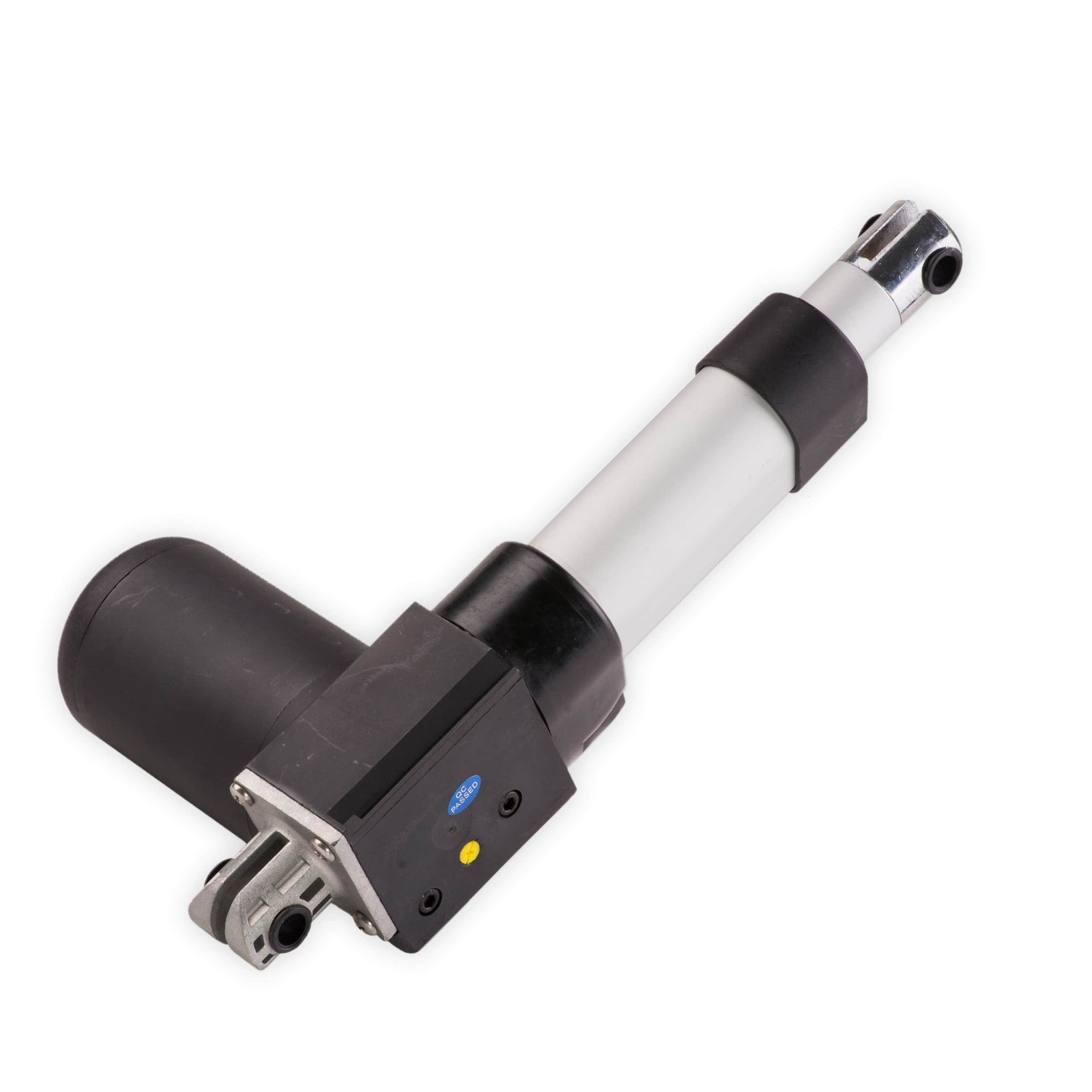

Deluxe Rod Actuators

$170.00 USD
Model #FA-HF-100-12-34
Force
Stroke
Quantity
Bulk Discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

Min. Quantity Discount
11 20 % OFF
31 25 % OFF
50 30 % OFF
200 40 % OFF
We have 35 of these in stock We have 35 of these in stock
and you currently have in your cart.

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.
View Cart

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

  • Description

    These Actuators have a worm gear drive mechanism which reduces friction thus offering better duty cycle and life span and are great home automation projects where low noise is a requirement. At 3” per second with 100lbs of force, these actuators are great for projects that require fast movement for heavier loads.

    CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

    Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies

    *Due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive. Another possibility is to use a relay in SPDT to work as a back-emf brake. See this tutorial for more information

  • Specifications

    Model FA-HF-100-12-XX
    Dynamic Force 100 lb
    Static Force 180 lb
    Speed ("/S) no load 3"
    Duty Cycle 20% at 100% load, 50% at 25% of load, 5 mins max. continuous use
    IP Rating 66
    Screw Type Worm Gear
    Input 12v DC
    Operational Temperature -26°C/65°C (-15°F/150°)
    Limit Switch Built-in (factory preset)
    Safety Certifications CE, ROHS
    Bracket(s) MB3 or MB3U Brackets
    Draw at Full Load 10 Amps



    Stroke Retracted Length Extended Length Weight STEP files
    3" 10.88" 13.88" 5.0 lbs FA-HF-100-12-3
    6" 13.88" 19.88" 5.5 lbs FA-HF-100-12-6
    9" 16.88" 25.88" 5.9 lbs FA-HF-100-12-9
    12" 19.88" 31.88" 6.3 lbs FA-HF-100-12-12
    15" 22.88" 37.88" 6.5 lbs FA-HF-100-12-15
    18" 25.88" 43.88" 7.25 lbs FA-HF-100-12-18
    24" 31.88" 55.88" 8.1 lbs FA-HF-100-12-24
    30" 37.88" 67.88" 9.0 lbs FA-HF-100-12-30
    32" 39.88" 71.88" 9.3 lbs FA-HF-100-12-32
    36"  43.88" 79.88" 9.9 lbs FA-HF-100-12-36

     Use MB3 or MB3U brackets for these actuators.

  • Technical Drawings

    Looking for a 3D model of this actuator? Email support@firgelliauto.com, we will be happy to email it to you

    Deluxe Rod Technical Drawing

  • Performance Graph

    Deluxe Rod Performance Graph jpg

  • Brake with SPDT Relay diagram

  • Product Video

  • Comparison Video

  • 3D Model Downloads (.STEP)

    100lb Force
