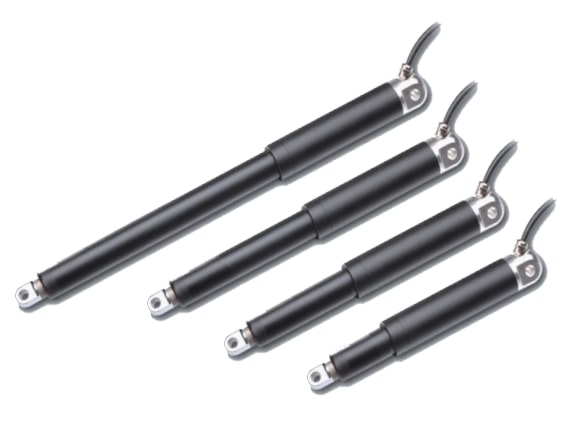

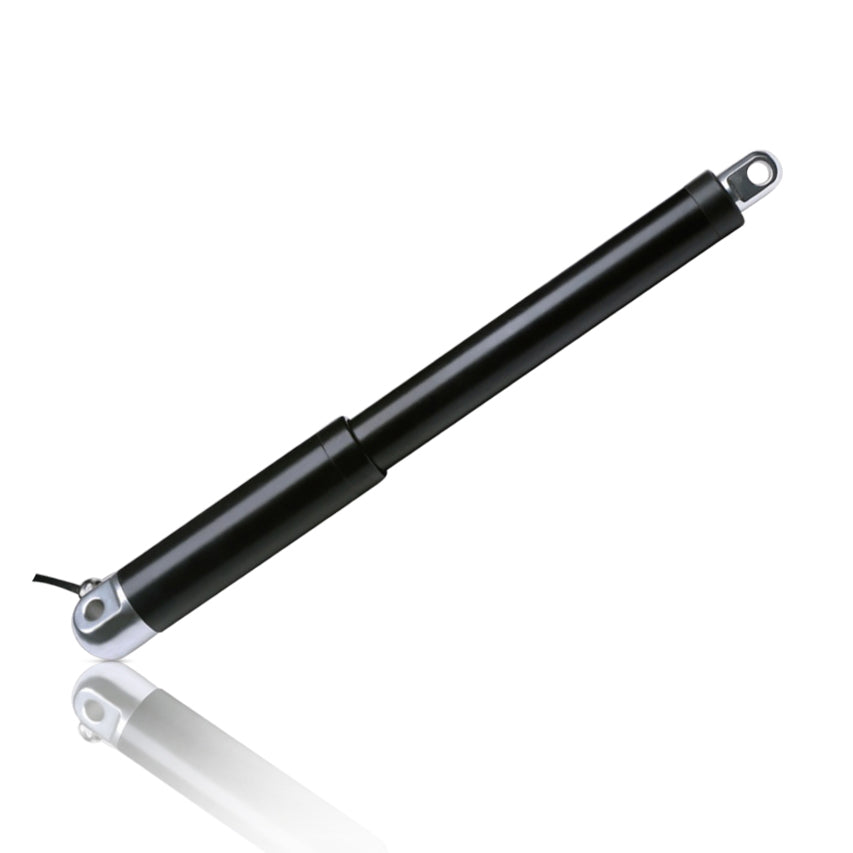

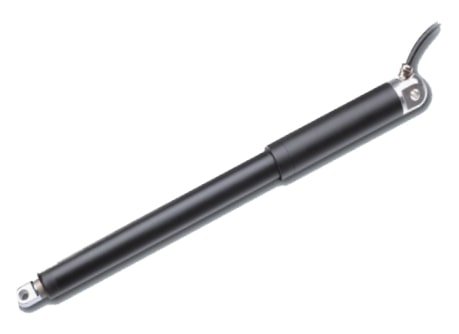

Bullet Series 35 Cal. Linear Actuators

      Bullet Series 35 Cal. Linear Actuators

      USD
      Model #
      Force
      Stroke
      Quantity
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

      The Bullet Series 35 Cal. Linear Actuator was developed to have a slim in-line motor design. They are light weight and are fitted with high quality Japanese motors to ensure a long life span and low operating noise with an IP66 rating.

      These Actuators come with an integrated force sensor (in the form of an over-current protection circuit), this means if they bump into something or when they get to the end of their stroke they automatically stop moving until you either change direction or remove the load. Please be aware that this model does not have internal limit switches - For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators.  The built-in over-current protection system is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control where space is tight.

      For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

      Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies


      Specifications
      Model FA-BS35-20-12-X FA-BS35-90-12-X FA-BS35-180-12-X FA-BS35-270-12-X
      Push/Pull Force 22 lbs. 90 lbs. 180 lbs. 270 lbs.
      Static Force 30 lbs. 135 lbs. 350 lbs. 400 lbs.
      Speed at no load 1.3”/sec  0.7”/sec  0.45”/sec  0.26”/sec
      Speed at full load 1.1"/sec 0.5"/sec 0.27"/sec 0.17"/sec
      Voltage  12V
      Max Current  3.8 amps
      Maximum Power  60W
      Duty Cycle 25% if operating above 65°C (150°F) or 100% if operating below 65°C (150°F)
      Temperature Range -20°C ~ 60°C
      Protection Class IP67
      Noise Level 50-60 dB
      Backlash 0.01 ~ 0.03"
      Over Current Circuit Protection Built-in
      Circuit Breaking Current 4.5 amps
      Circuit Breaking Response Time 0.1 ~ 0.5 seconds
      Diameter 1.37" (35mm)
      Outer Housing Material 6063 Aluminum
      Rod Material 304 Stainless Steel
      Lead Screw Trapezoid
      Material of nut Plastic
      Life Cycles 10k
      Cable Length 5 feet
      Brackets MB35





      Stroke Length Retracted Length Extended Length  Weight Step File
      6" 13.87" 19.87"
      		 1.7 lb.
      9" 16.87" 25.87"
      		 2.2 lb.
      12" 19.87"
      		 31.87"
      		 2.4 lb.
      18" 25.87"
      		 43.87"
      		 3.5 lb.
      24" 31.87"
      		 55.87"
      		 3.7 lb.
      28" 35.87"
      		 63.87"
      		 3.95 lb.

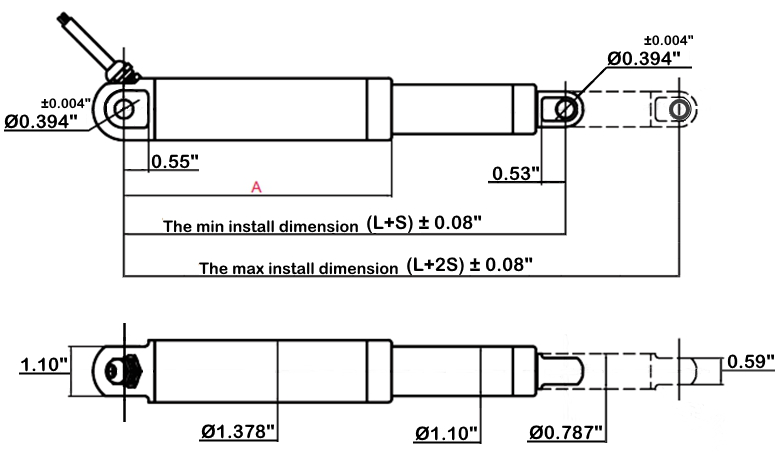

      Technical Drawings

      Curve Graphs

      PDF Brochure
