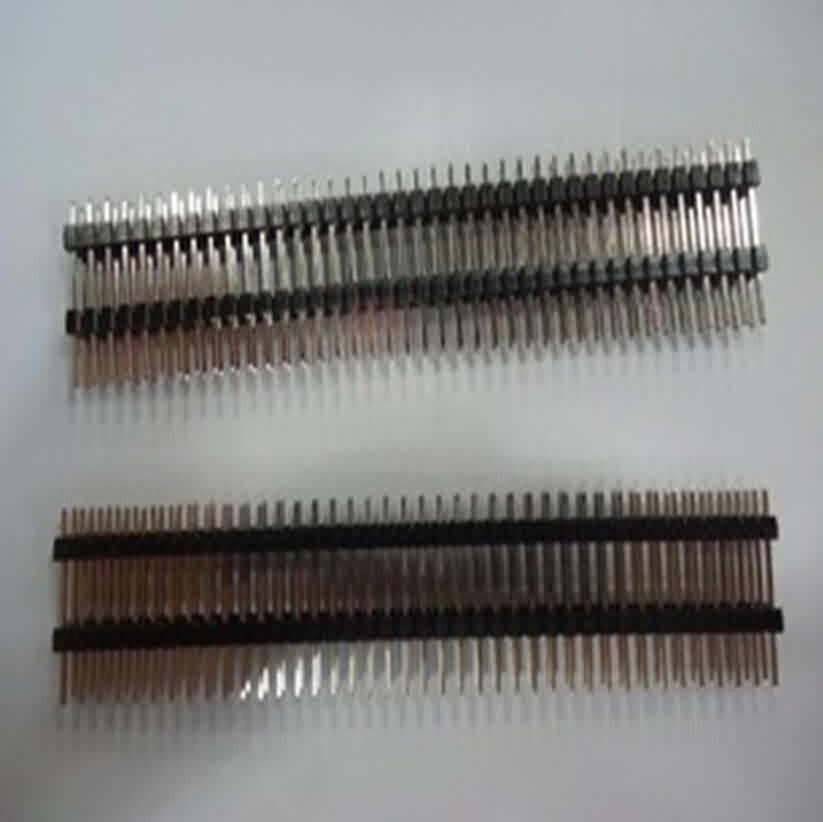

      This unshrouded stacking male header is made with 2 x 40 straight pins. It is breakable according to actual needs. It is commonly used as a low cost connector.

      Its 2.54mm spacing makes it easy to use on our breadboards and prototyping PCBs.

      *** These pin headers are gold-plated with very great conductivity. Hobbyists love to use them

      Features

      • Current rating: 3A
      • Contact resistance: 20 ohm
      • Withstand voltage: 500V
      • Housing material: Black thermoplastic(UL 94V-0)
      • Posts: Phosphor bronze(gold-plated)
      • Insertion force: 12lb(53.4N)max.
      • Retention force: 25lb(1.11N)min.

      A(stack height)=0.4"(10.16mm) / B(tail length)=0.087"(2.2mm) / C(post length)=0.817"(20.75mm)
