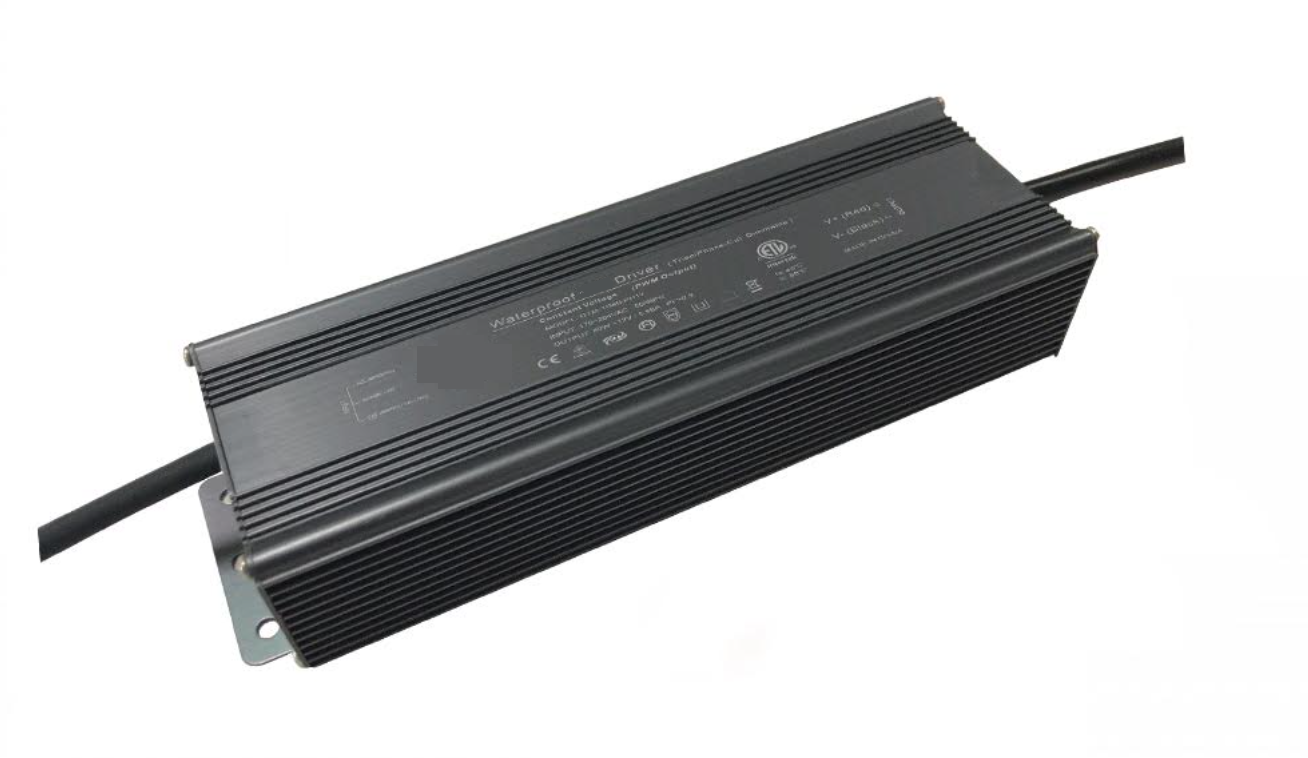

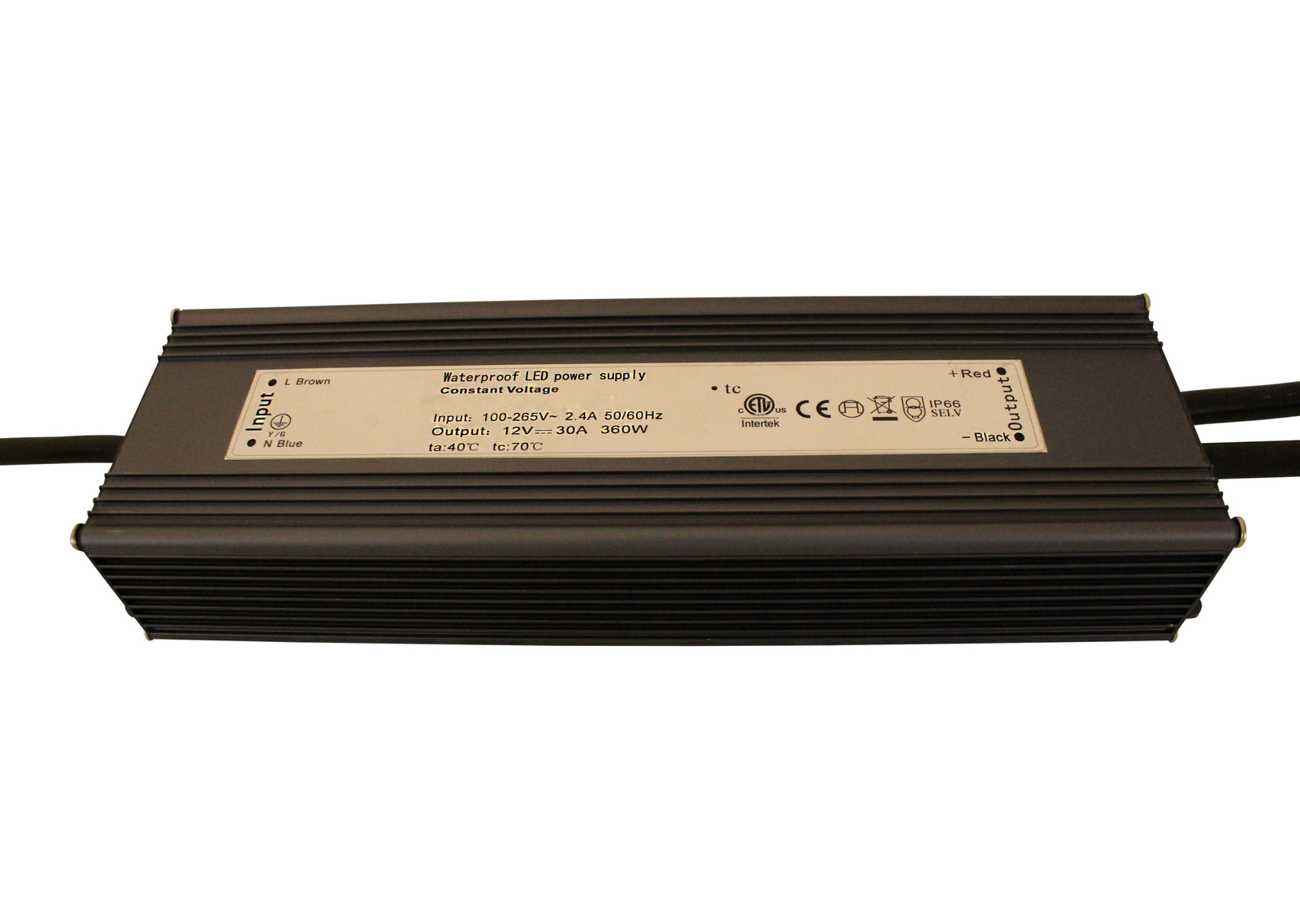

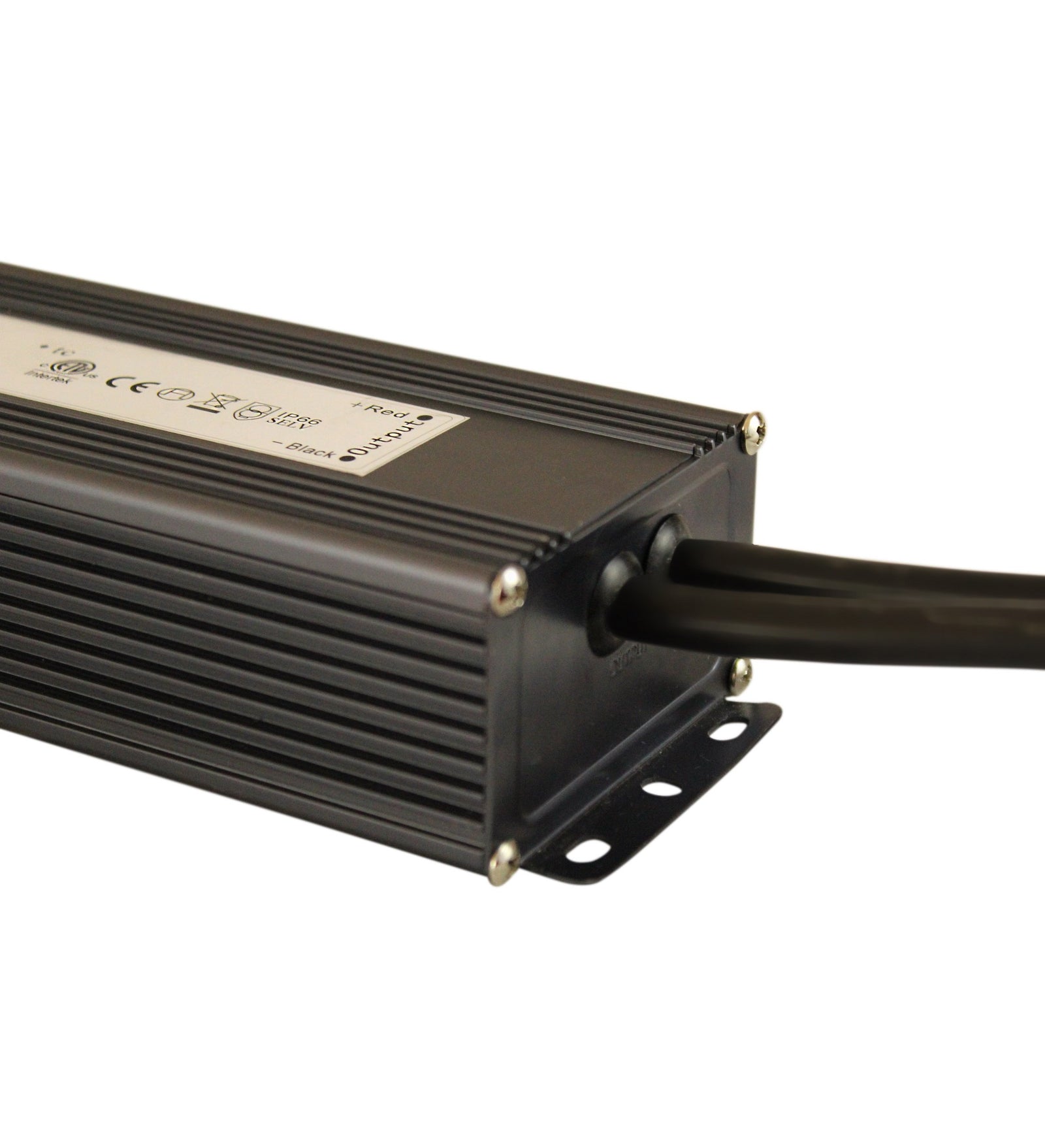

Water Resistant LED Power Supply 12V 30A

      Water Resistant LED Power Supply 12V 30A

      USD
      Model #
      Quantity
      qty limit cart limit

      Add Warranty Plus +8%

      Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

      Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.
      View Cart

      Shipping Cost Estimator

      Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Choosing the approriate power supply

      The Water Resistant LED 12V DC switch power supply is the most popular way to power your LED lighting products.The Universal AC inputs for both residential  and commercial applications. The fully sealed enclosure will ensure that dust, debris, rain and other outdoor elements will not impact the functionality of the power supply.

      Features

      • Output constant voltage
      • Universal AC input: 180 - 250VAC
      • Built-In active power factor correction
      • Cooling by free air convection
      • Great for outdoor applications
      • Inductive load type so ideal for high current start-up actuators like our Deluxe Rod, Heavy Duty Rod or Industrial Actuators.
      Specifications
      MODEL FA-PA-12V-30A-IP66
      OUTPUT VOLTAGE 12 Volt
      VOLTAGE TOLERANCE ±0.5V
      OUTPUT CURRENT 30 Amp
      POWER 360 Watts
      EFFICIENCY 86%
      INPUT VOLTAGE RANGE 180 ~ 250VAC or 90 ~ 130 VAC
      FREQUENCY RANGE 47 ~ 63 Hz
      POWER FACTOR ≧0.6/220VAC
      AC CURRENT 0.47A
      LEAKAGE CURRENT <0.70mA/220VAC
      OVERLOAD PROTECTION ≦120%
      TEMPERATURE -40 ~ +60 ℃
      TEMPERATURE COEFFICIENT ±0.03% (0~50 ℃)
      VIBRATION 10 ~ 500 Hz, 2G 10 min/ 1 cycle
      SIZE 276mm x 78mm x 47mm
      WEIGHT 4.2 lbs.
      Technical Drawing
