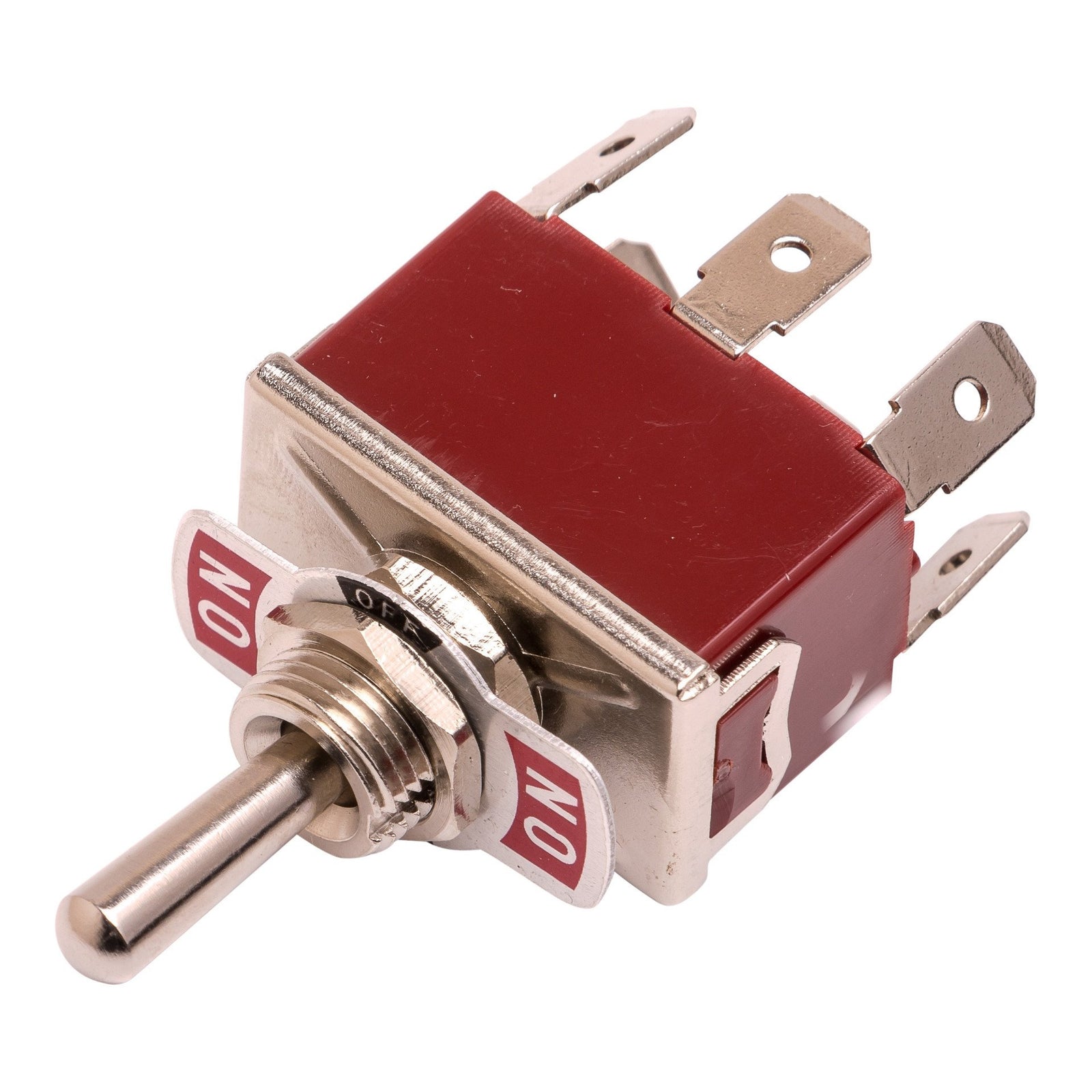

Toggle Switch for Actuators or Motors (DPDT)
Toggle Switch for Actuators or Motors (DPDT)
Model #
Description
Toggle switch to provide input to an actuator or motor. Use to control on/off functions etc.- 2 Models depending on your needs - MOMENTARY or SUSTAINING. Momentary means as soon as you let go of the switch it automatically springs back to the center off position to turn off the motor or Actuator. Sustaining means when you press the switch the lever will stay in that position, and the Motor or Actuator will keep going unil the Actuators reach their own internal limit switch and shut themselves off. All Firgelli Actuators have built in Limit switches for added safety.
- These Heavy duty Toggle switches have 6 terminals which makes the DPDT (Double Pole Double Throw)
- 3 Position switch, Center-off, up and down. The sustaining type of Switch is great if you don't want to hang around holding the switch.
- How Do You Control a Linear Actuator with a Switch? - Read this Blog post to find out

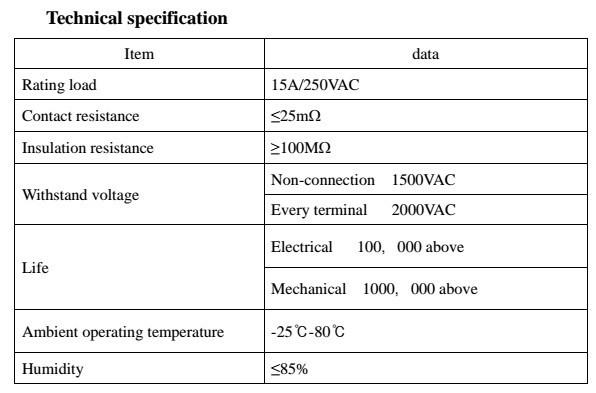

Specifications

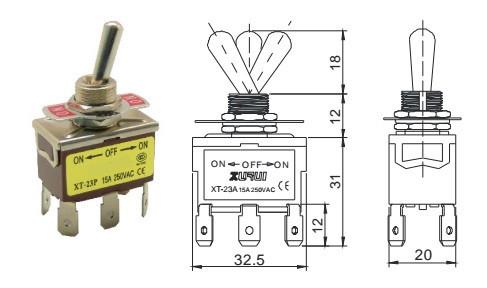

| Stem Dia. and Thread Size: M12 x 0.492" | Mounting Hole: 0.492" Dia. |
| Operating Temp. Range: 14 Degrees to 158 Degrees F | Item: Toggle Switch |
| Control option: Momentary or Sustaining | Contact Rating: 15A @ 125V, 15A @ 250V, 15A Inductive Load @ 125V, 15A Inductive Load @ 250V |
| Contact Form: DPDT | Switch Function: On/Momentary On |
| Number of Connections: 6 | Terminals: Solder or Connector |
| Control Any Firgelli Actuator or Motors: Yes | Warranty: 2 years |
| Name Plate Included: Yes |
