Description

Mounting bracket for our Heavy Duty Rod and Deluxe Rod Actuators.

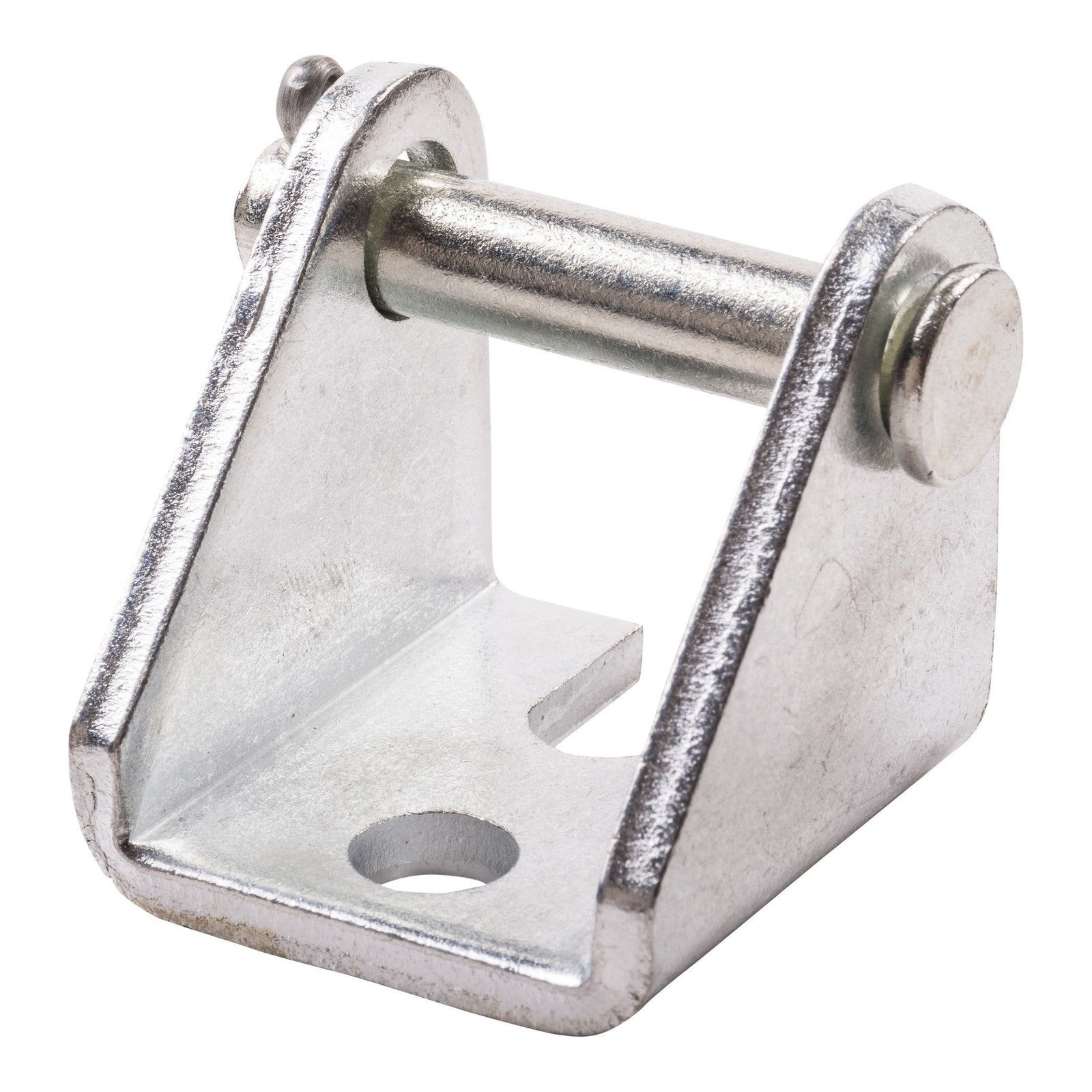

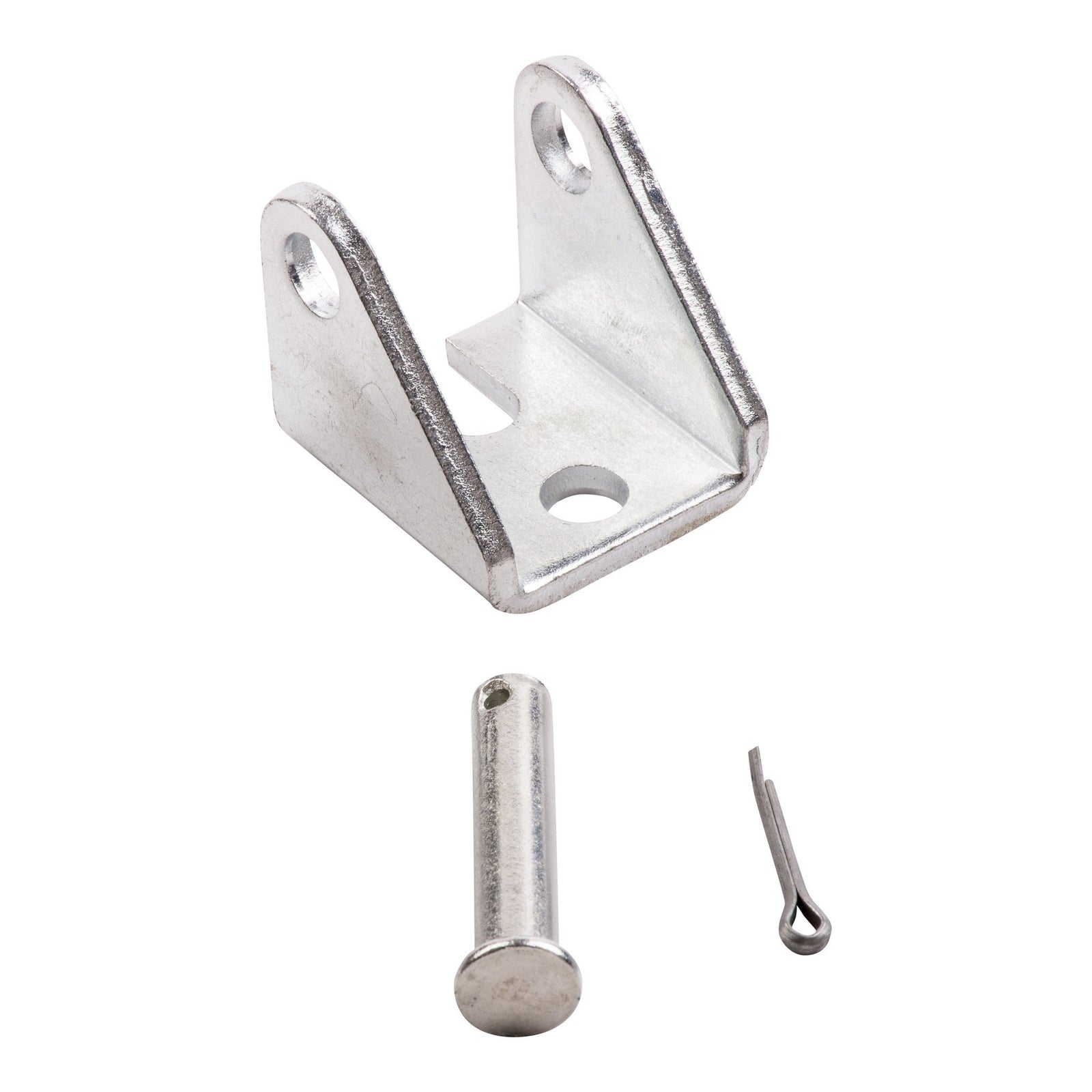

After some development in working with heavy duty units such as the Deluxe Actuators, Heavy Duty IP66 Rated, and Heavy Duty Rod Actuators, it was clear that a new clevis type bracket had to be produced. the MB3U is the solution to heavy duty applications that involve high torque and loads. This is a similar design as the MB1 Bracket, however it has been enlarged for different linear actuator product lines, features a thicker clevis pin for added strength and durability, but still maintains the oversize and elongated holes on the base of the bracket for fine adjustment. Just as with other clevis-type brackets offered by Firgelli Automations, the product is sold as a single unit and ships with the clevis pin as well as a cotter pin to secure it.
