Heavy Duty Rod Actuators

Heavy Duty Rod Actuators

USD
Model #
Force
Stroke
Quantity
Bulk Discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

Min. Quantity Discount
11 20 % OFF
31 25 % OFF
50 30 % OFF
200 40 % OFF
qty limit cart limit

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

Shipping Cost Estimator

Note: you must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

Technical Drawings

Description

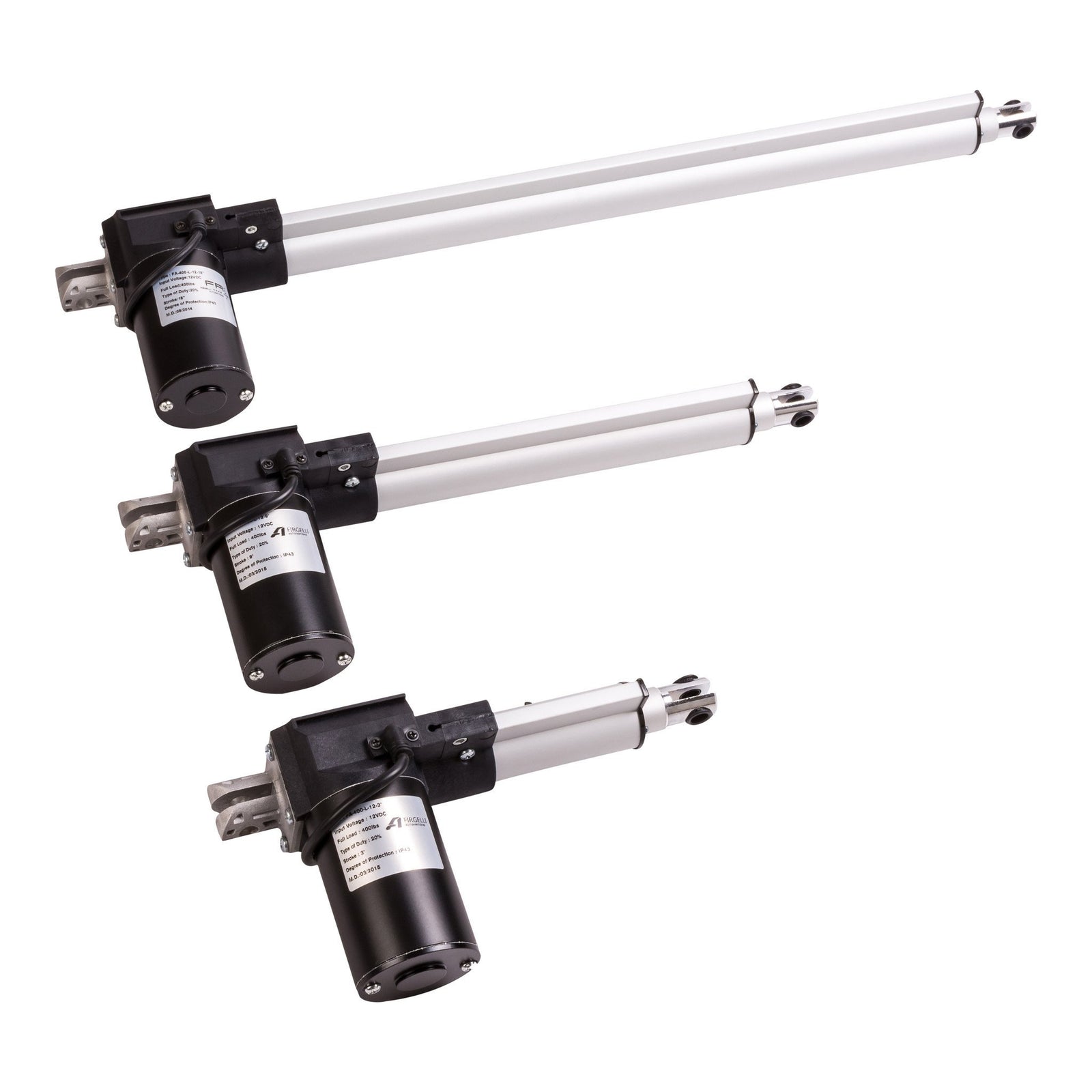

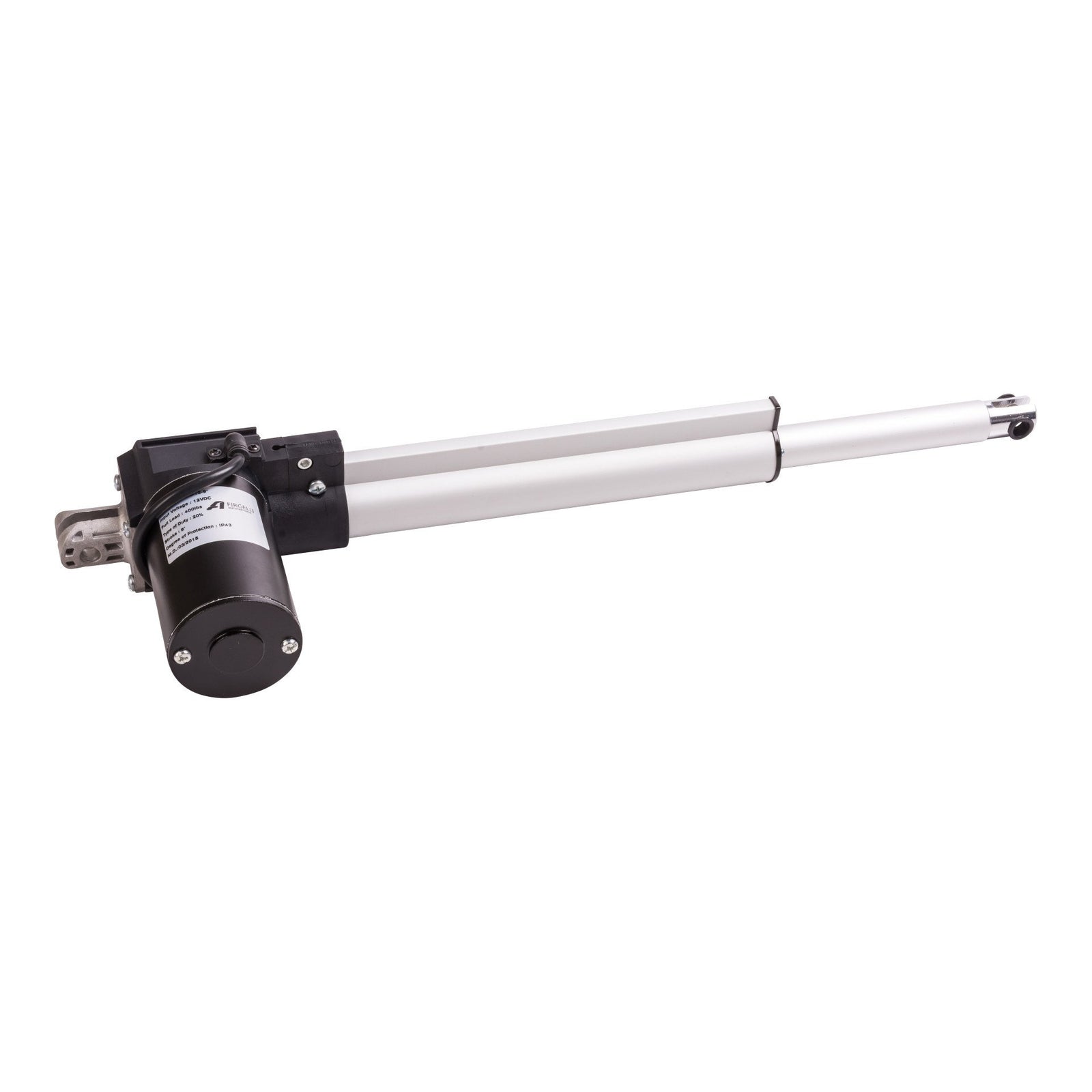

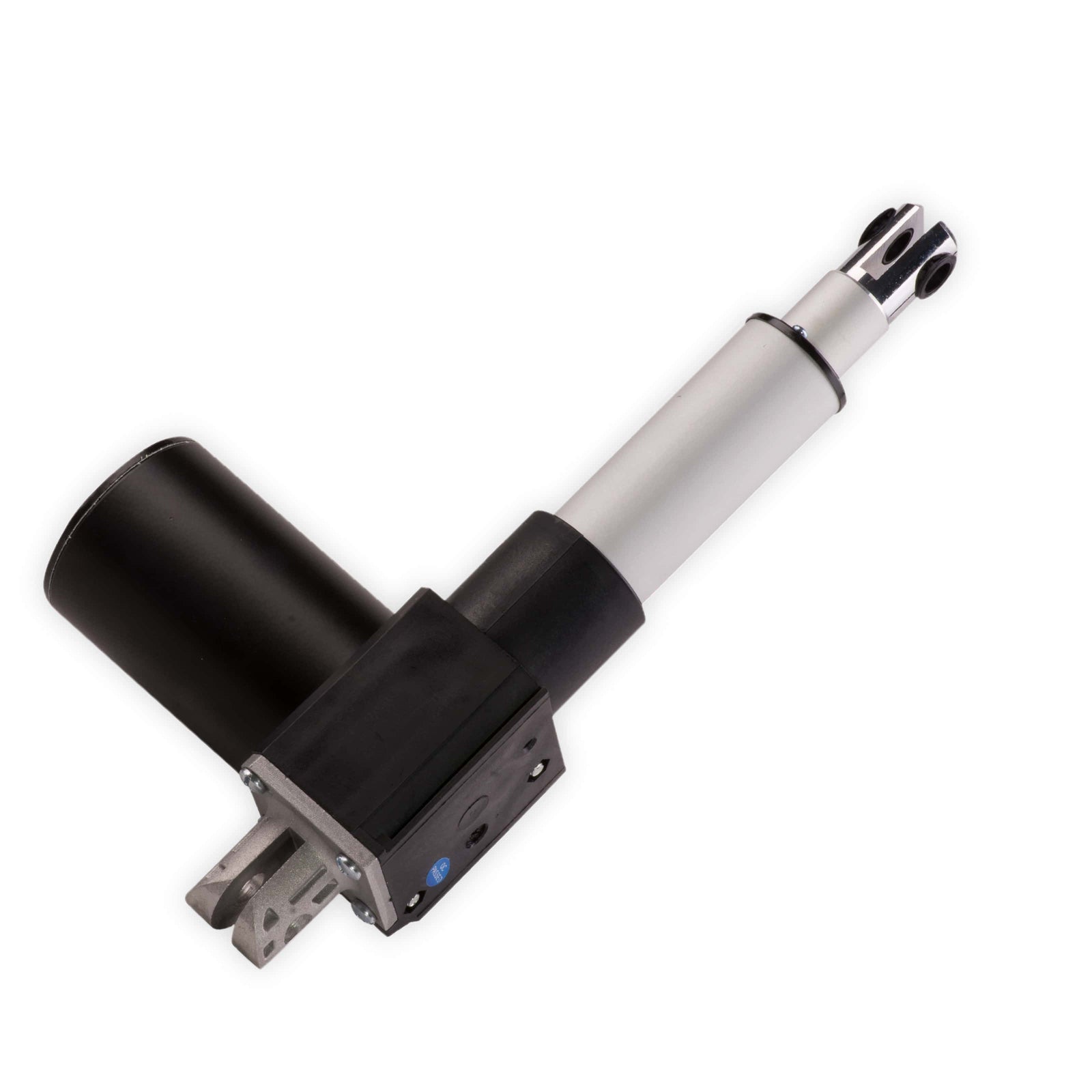

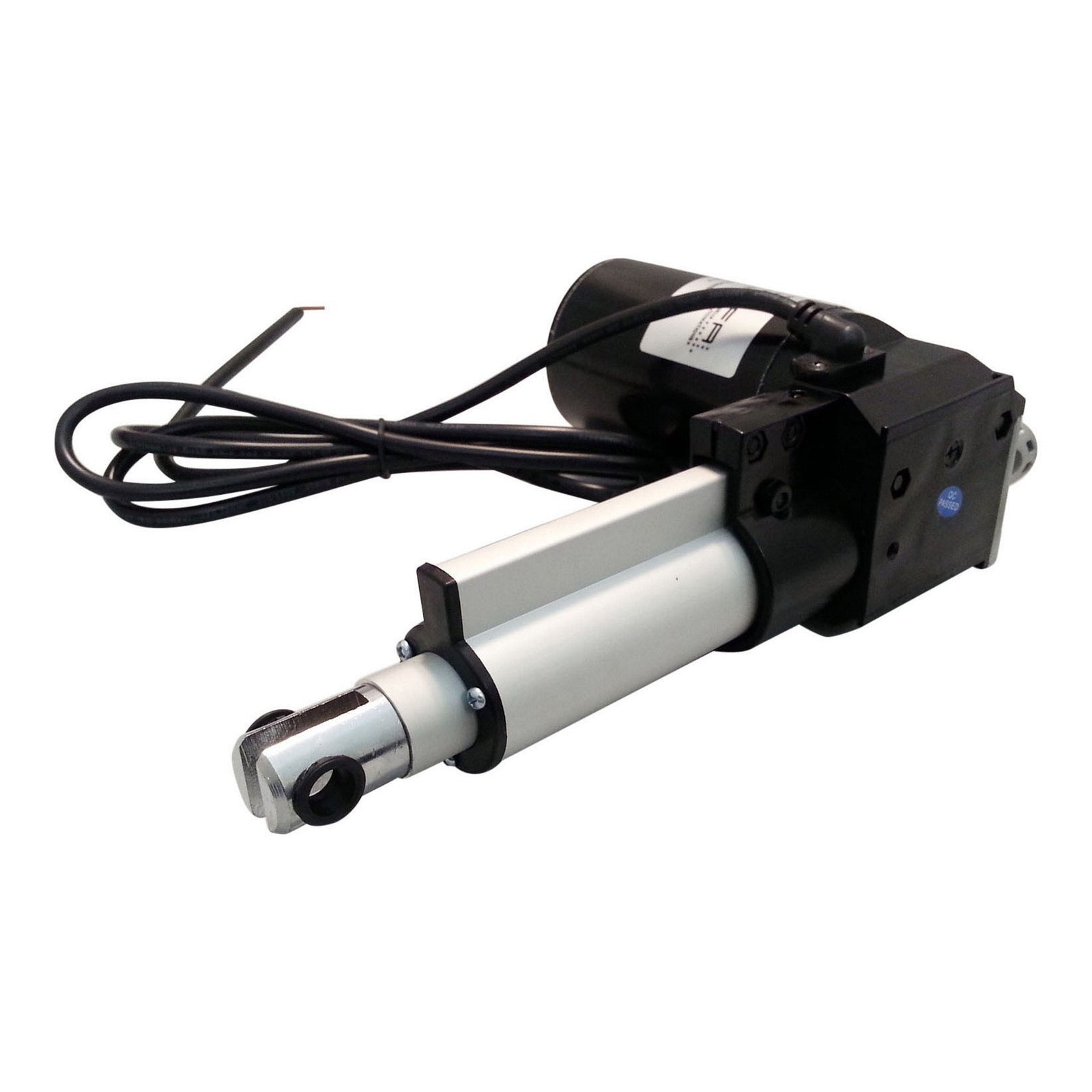

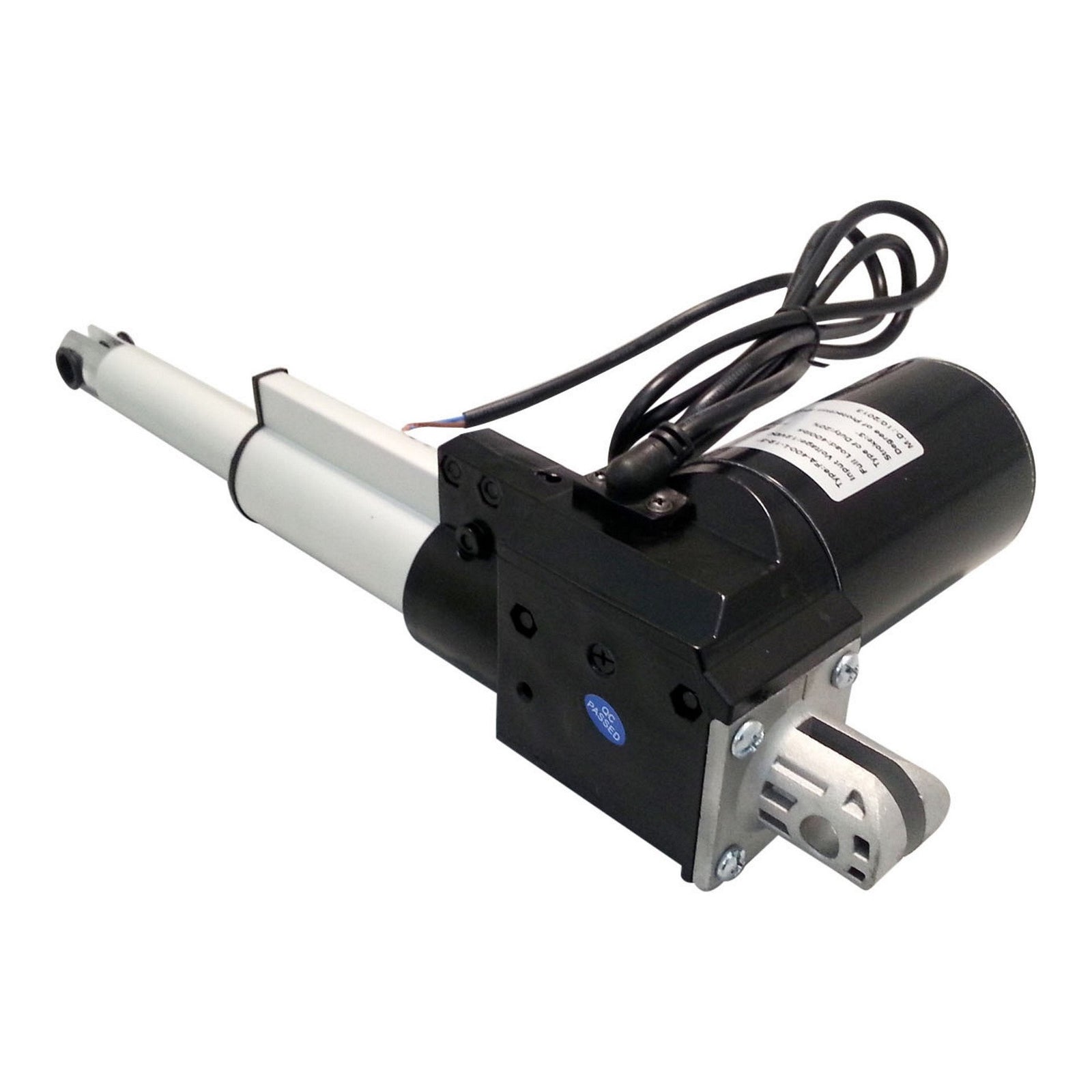

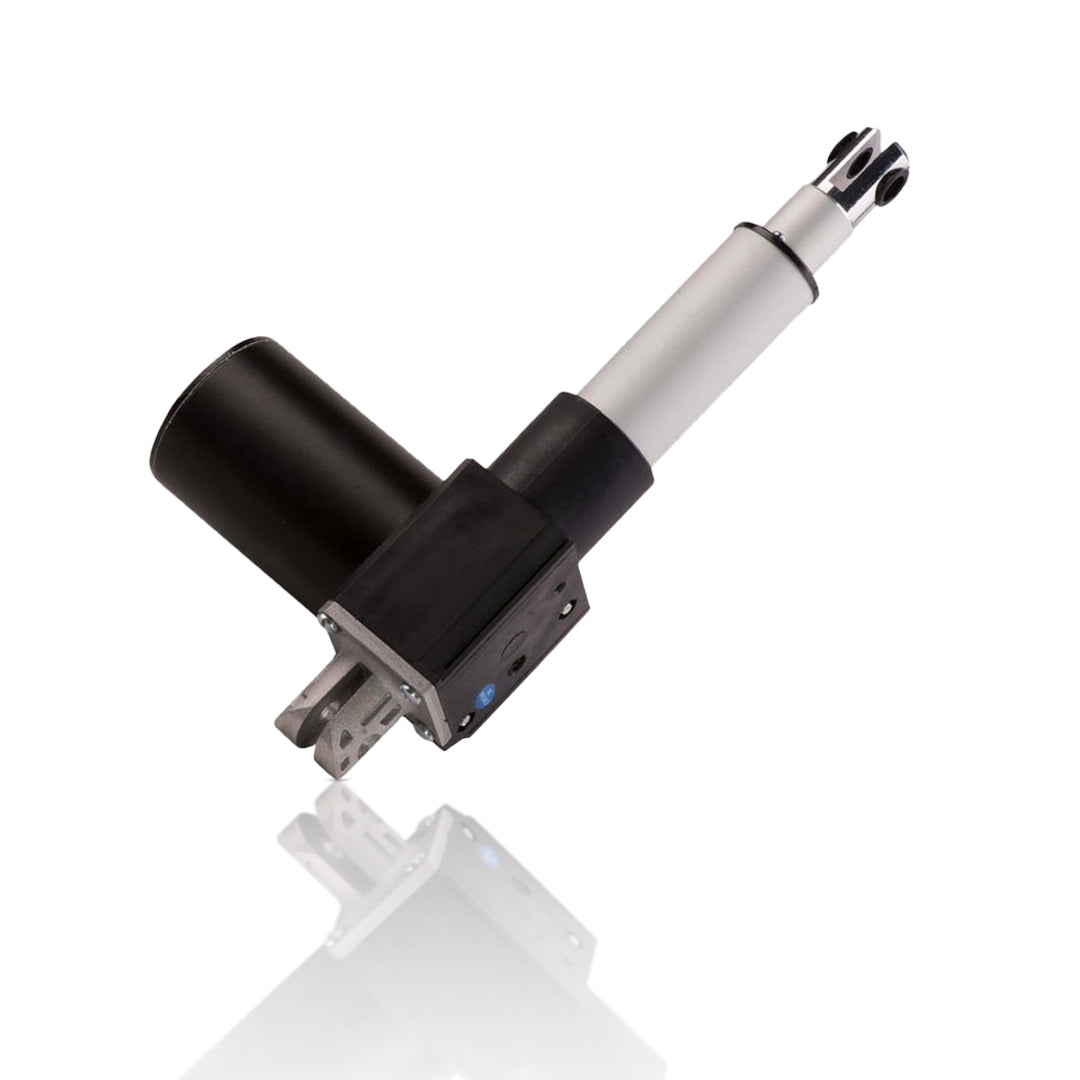

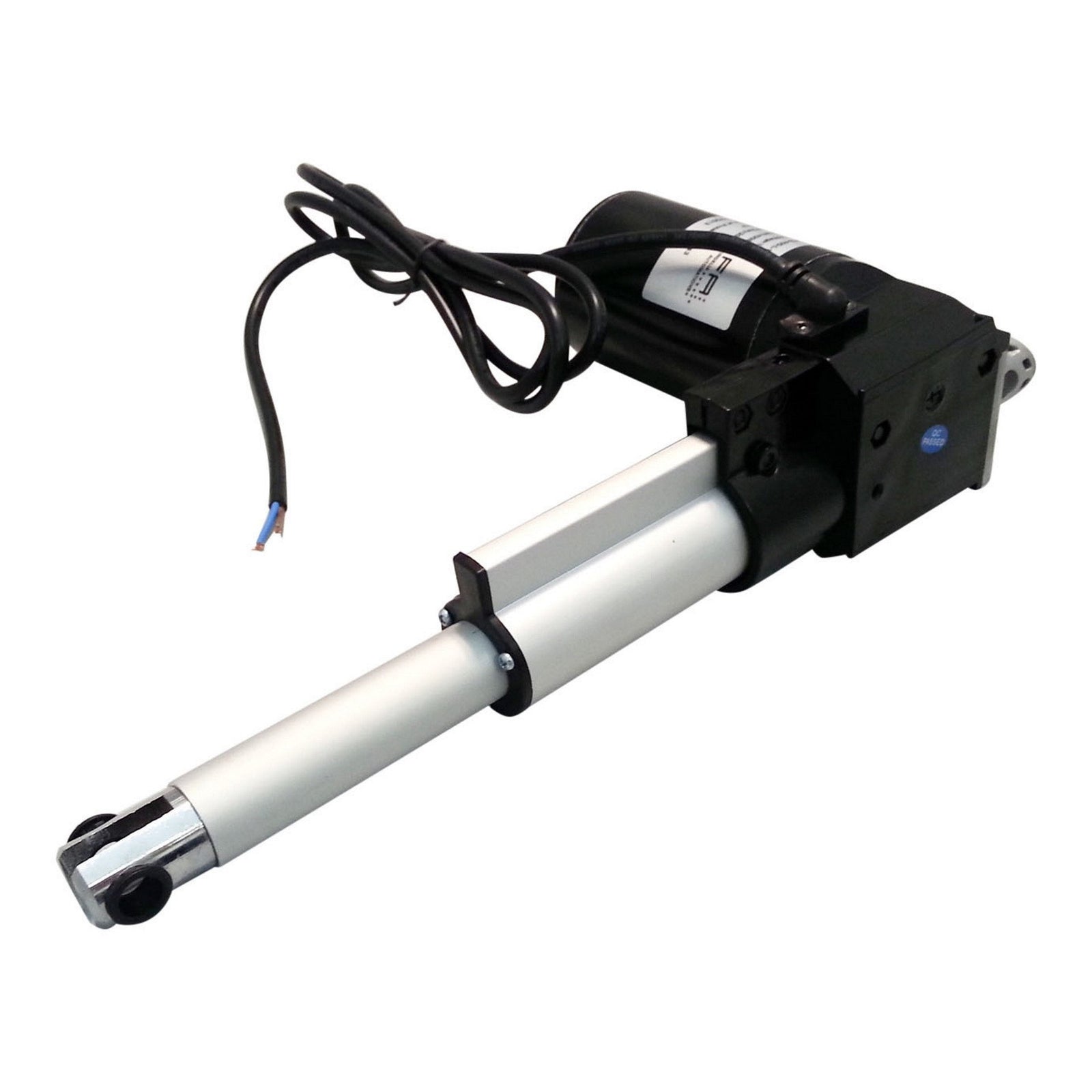

These Heavy Duty Rod Linear Actuators come in a variety of forces from 200 lbs. up to 1,000 lbs. of force; and stroke options range from 3 to 30 inches (or custom strokes, if requested). They use a worm-gear drive mechanism, which means they are very quiet and offer high efficiency as a result.

CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings (below), or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

Note: 200 lbs. force in only available in 3", 6", and 8" stroke

The Heavy Duty line was developed with high standards in mind. Our clients demand the best quality and performance for their money, inspiring us to come up with this rugged design. This versatile unit features an aluminum shaft to shed weight, internal limit switches, an aluminum alloy inner tube, as well as a high-performance 12 volt DC motor that is capable of producing between 200 and 1000 lbs. (90-453 kg) of force.

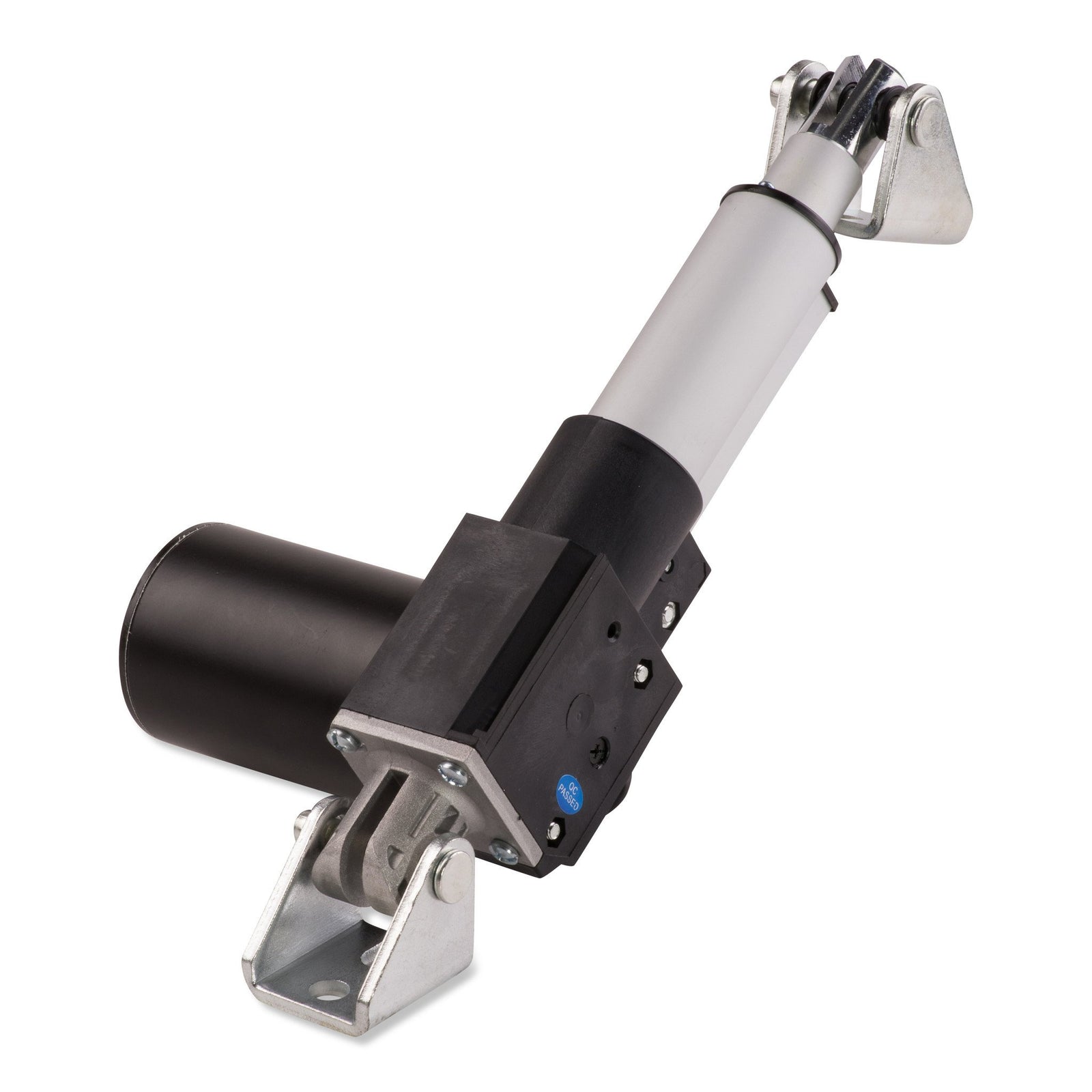

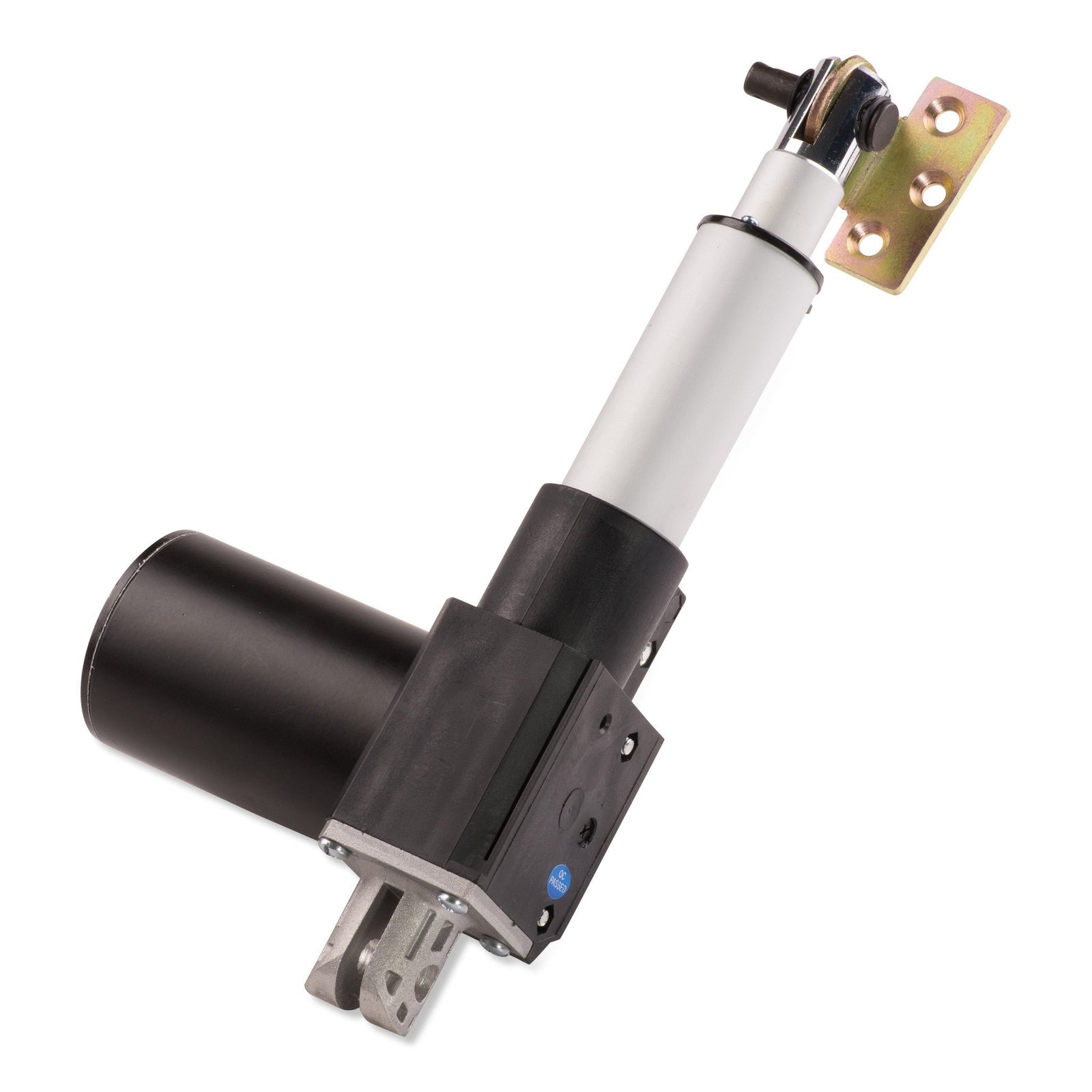

No matter your application, installation doesn’t need to be a hassle. Required components consist of just two brackets, one for either end, with quick-release pins for easy fitting and set-up. Controlling the unit is just as easy via a 2-wire system, making this unit a ‘plug & play’ type accession unique to Firgelli Automations.

*Due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive. Another option is to use an SPDT relay to work as a back-EMF brake. See this tutorial for more information

Specifications
Model FA-200-L-12-XX FA-400-L-12-XX FA-1000-L-12-XX
Dynamic Force 200 lb 400 lb 1000 lb
Static Force (back driving threshold) 225 lb 450 lb  900 lb
Speed ("/S) @ Full Load 0.8 0.4 0.2
Duty Cycle 20% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use
IP Rating 43
Screw Type Worm Gear
Input 12v DC
Max Draw 5 A
Operational Temperature -26°C/65°C (-15°F/150°F)
Limit Switch Built-in (factory preset) - For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators
Safety Certification CE
Bracket(s) MB3 or MB3U



Stroke Retracted Length Extended Length Weight STEP Files
3" 10.37" 13.37" 4.5 lbs FA-(F)-L-12-3
6" 13.37" 19.25" 5.1 lbs FA-(F)-L-12-6
8" 14.88" 23.12" 5.3 lbs FA-(F)-L-12-8
9" 16.5" 25.5" 5.5 lbs FA-(F)-L-12-9
12" 19.12" 31.12" 5.9 lbs FA-(F)-L-12-12
15" 21.94" 37.19" 6.1 lbs FA-(F)-L-12-15
18" 25.75" 43.62" 6.7 lbs FA-(F)-L-12-18
24" 31.81" 54.44" 7.4 lbs FA-(F)-L-12-24
30" 37.5" 67.5" 8.2 lbs FA-(F)-L-12-30

 *Stroke length tolerance +/- 0.125"

Technical Drawings

 Performance Graph
Rod Actuator / Current & Speed vs Load
Product Video

Heavy Duty Linear Actuator Review

Comparison Video

Heavy Duty vs Premium High Force Linear Actuator

3D Model Downloads (.STEP)

200lb, 400lb and 1000lb Force
