      Description

      Column Lift Actuators have many application opportunities from lifting projectors, podiums to lifting devices out of cabinets.  Check out our projects page to view some videos of other people's projects using lifting column Actuators

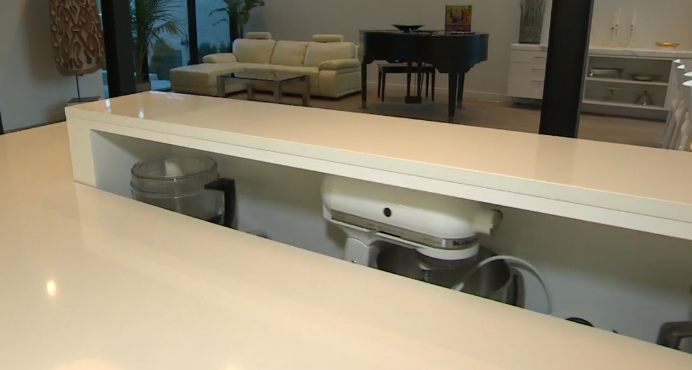

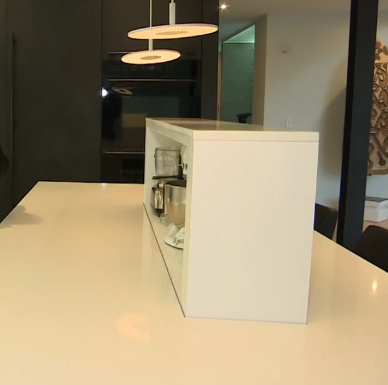

      Our Lifting column Actuators have a compact and clean design with great optional Remote Control system. They provide optimal ergonomics in applications for Kitchen Appliance lifting, to office and industrial markets along with the hospital and care sector. Furthermore, column lift Actuators can be used upside down to lifts objects up such as for Projectors to pop out of the ceiling

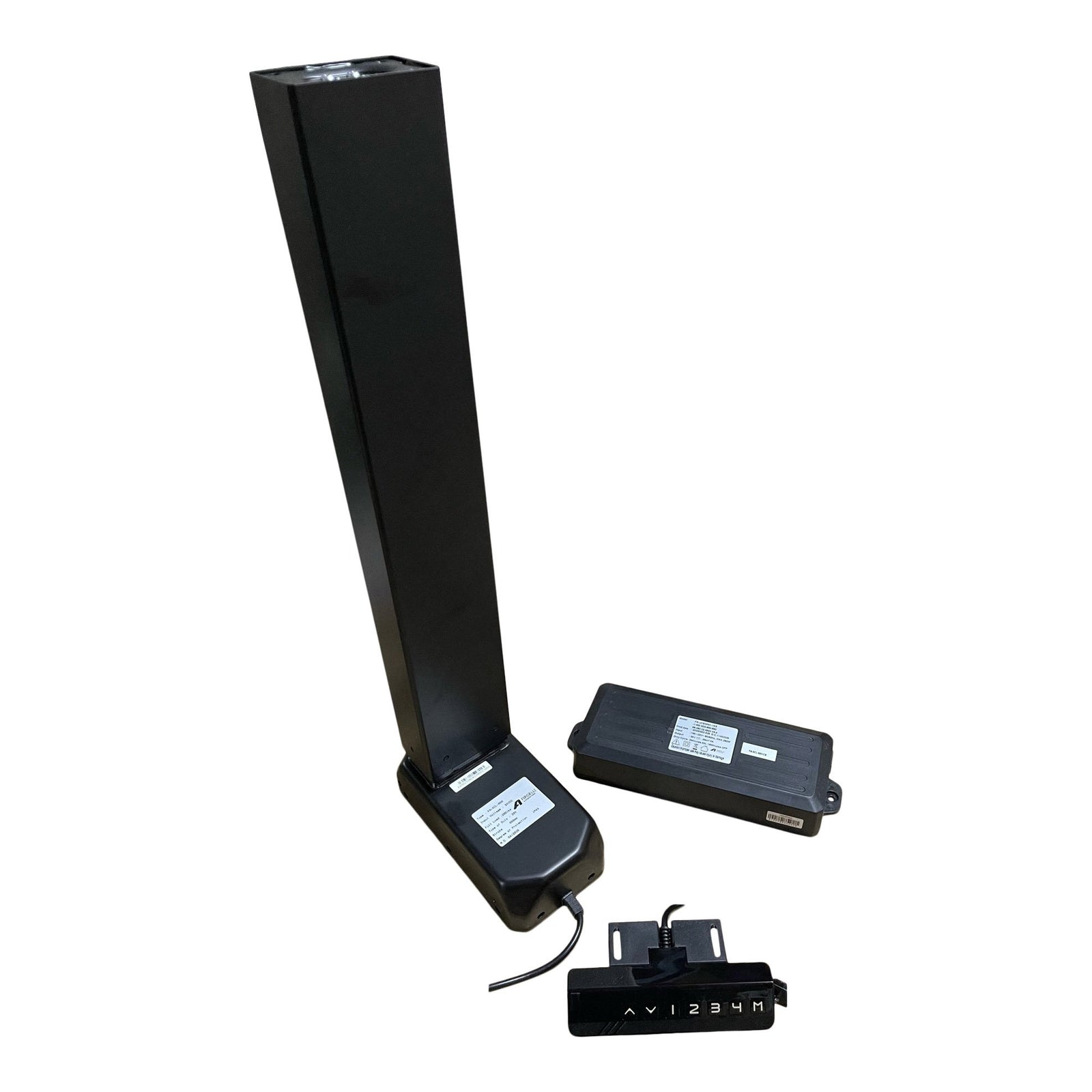

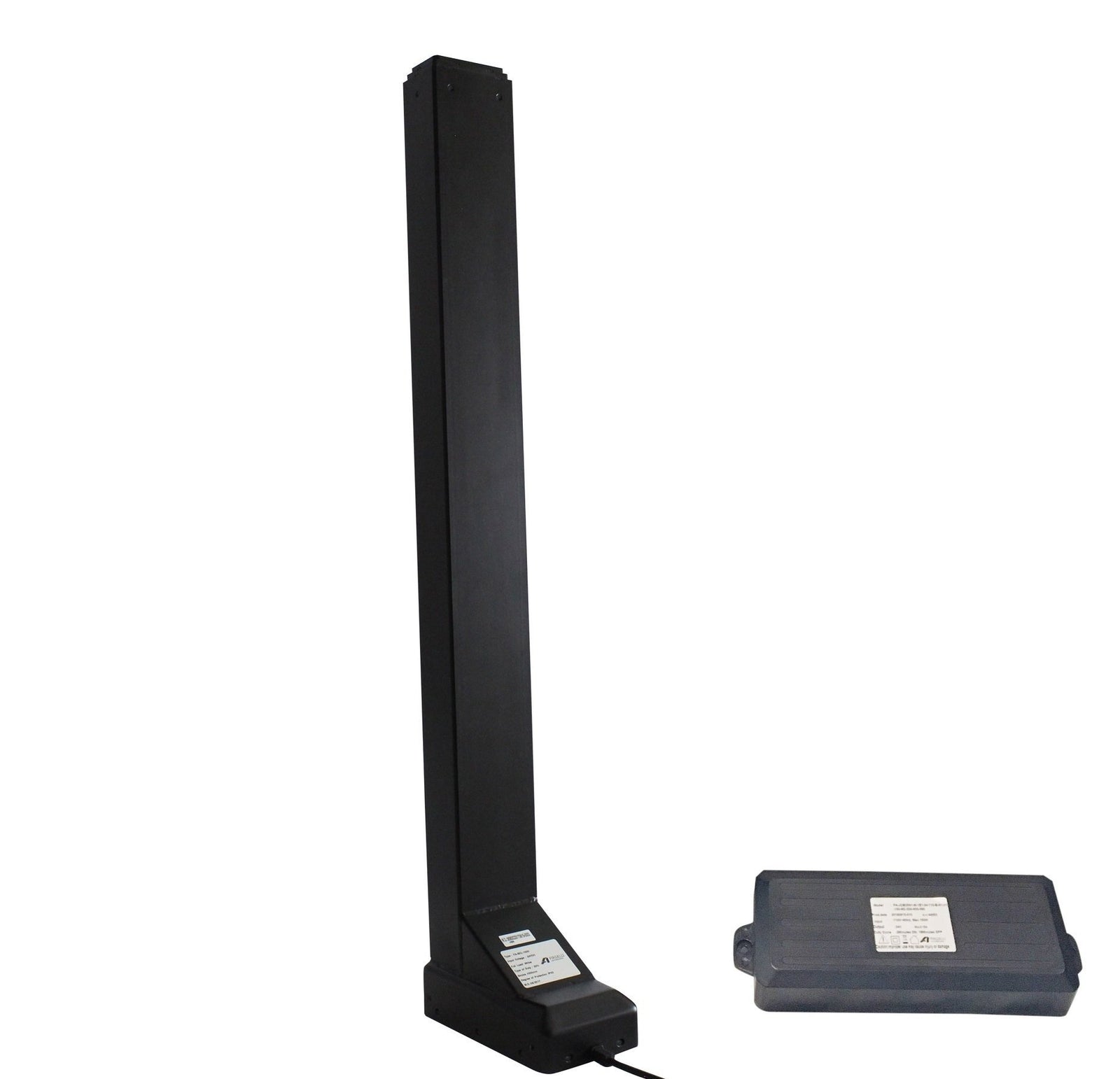

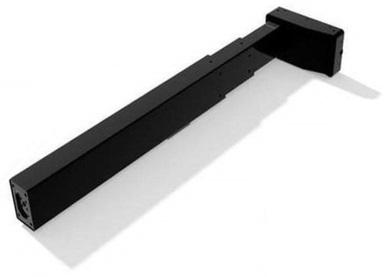

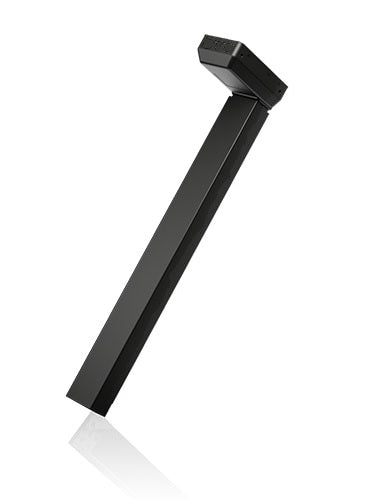

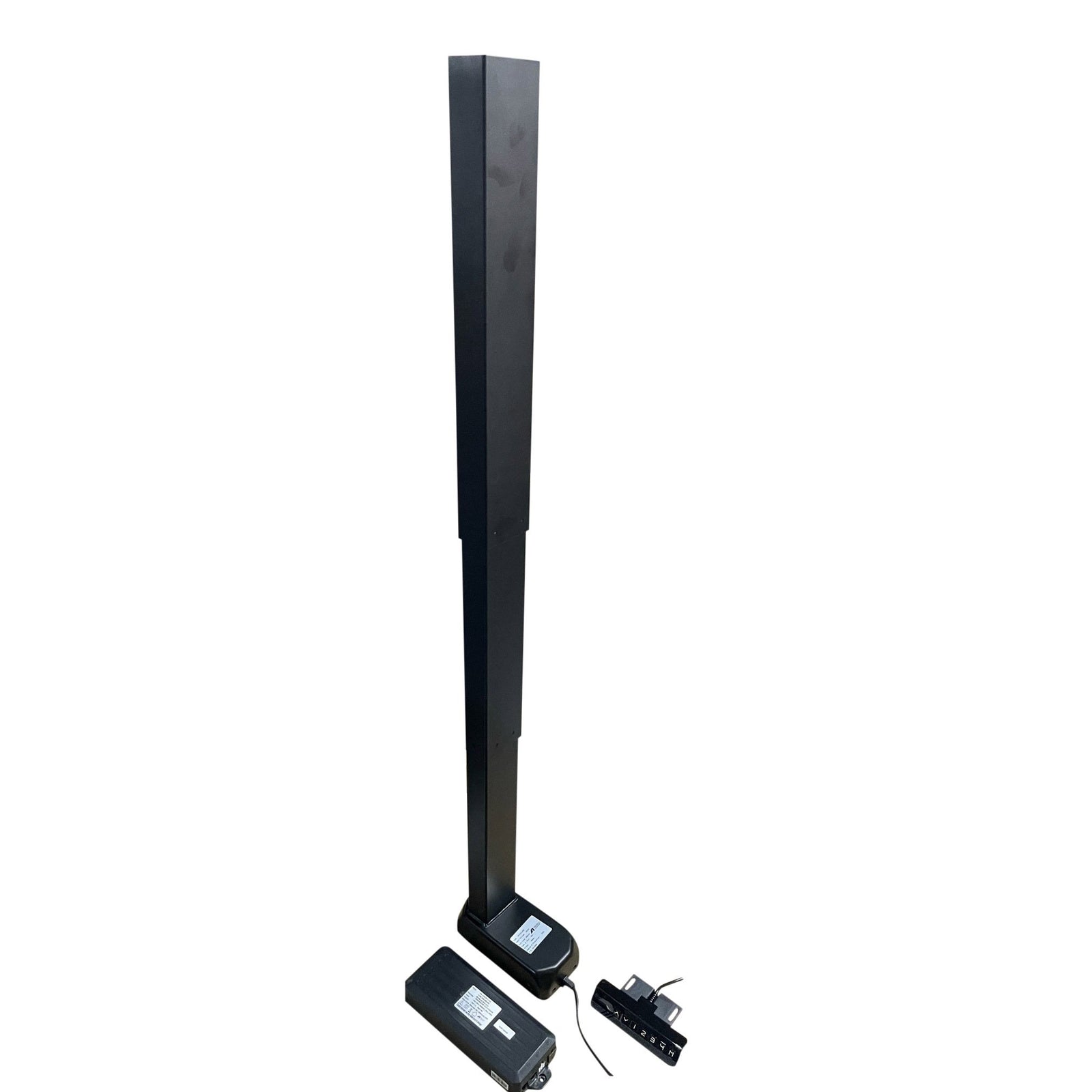

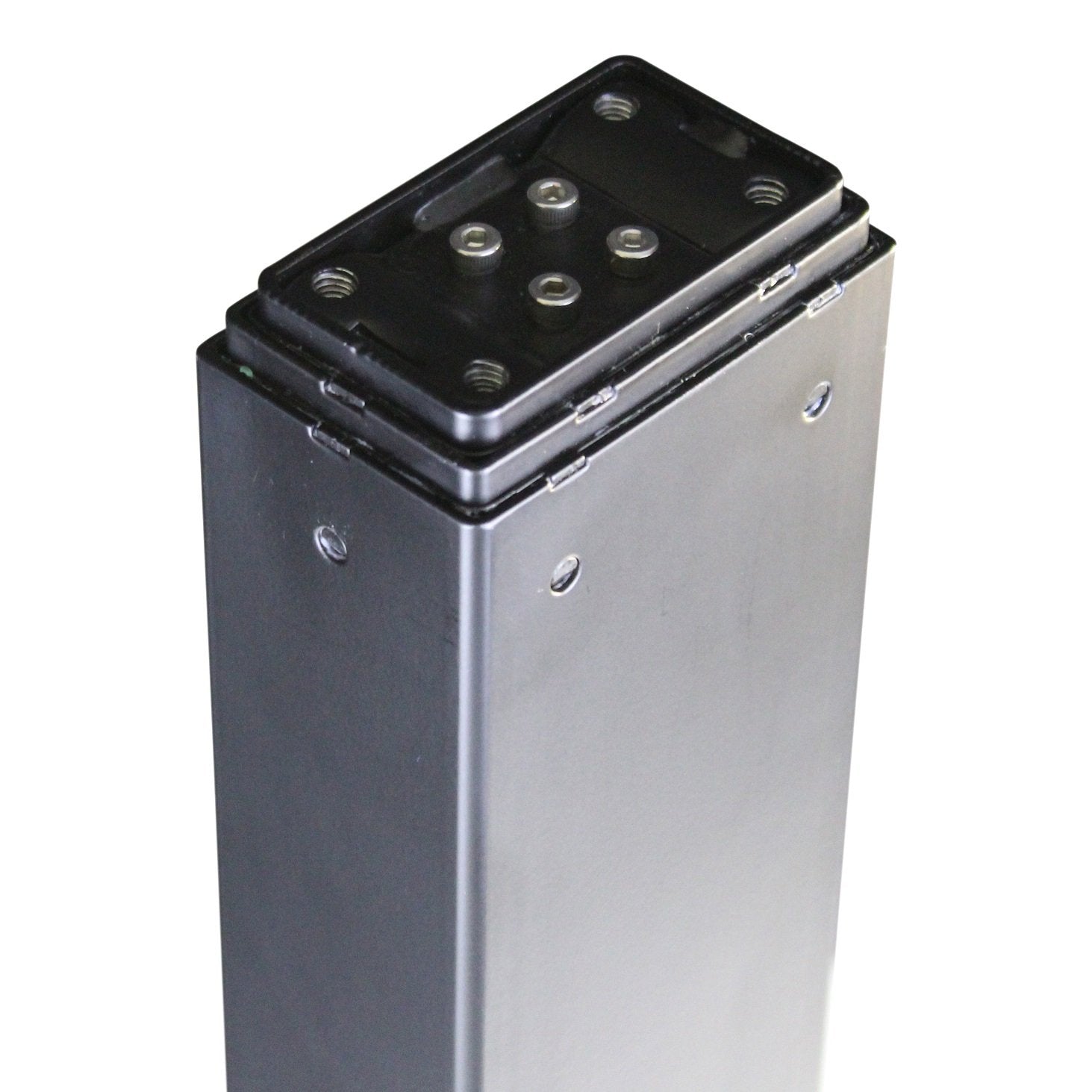

      Our Column lift is a compact 3 section lifting column, which is a perfect choice for a wide range of different applications because the 3 sections allow the closed retracted length to be quite short compared to the stroke of the Column Lift.

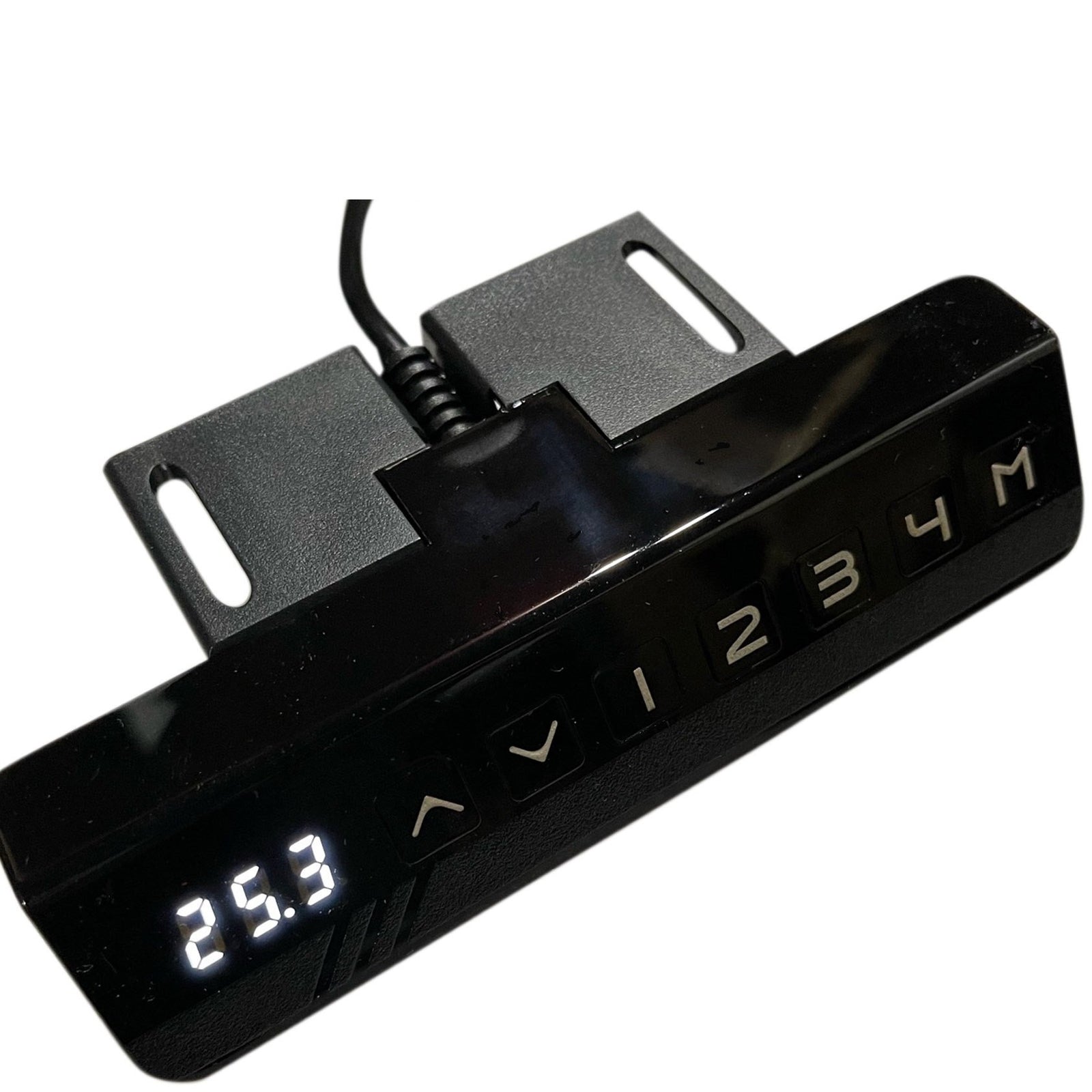

      The Column Lift Actuator is controlled with a simple plug in programmable controller with arrow up and down buttons as well as memory positions and digital readout showing position.  Simply press the button and watch the lift raise quietly and effortlessly. Using the programmable controller, you can set certain pre-determined heights. The optional wireless controller is available here

      Specifications
      Model FA-SCL-650 FA-SCL-1000
      Dynamic Force 180 lbs 80 lbs
      Stroke 25.6" 39"
      Retracted 22" 32"
      Load Capacity 180 lbs. (800N) 80 lbs.
      Load Capacity Upside Down 135 lbs 55 lbs.
      Speed at full load 0.8" 0.8"
      Bending Moment 1200lbs-in 1200lbs-in
      IP Rating IP43
      Voltage 24V via Control Box
      Duty Cycle 10% depending on load
      Certification CE
      Overload Protection Built into the control box
      Programmable Stop Includes Programmable Controller
      Wireless Control Optional RF Control
